Product Description:

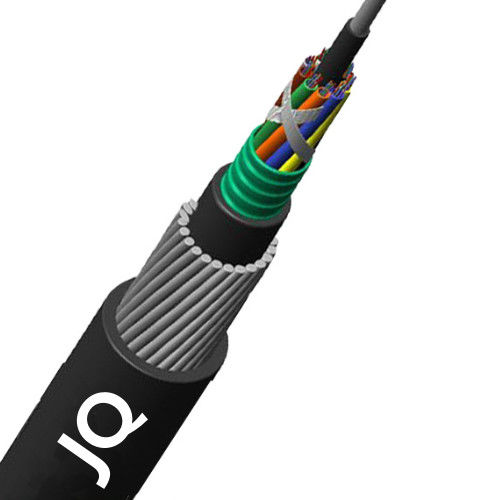

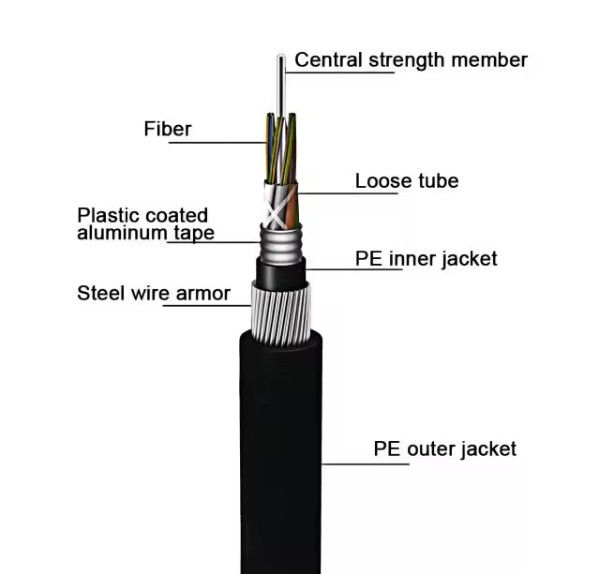

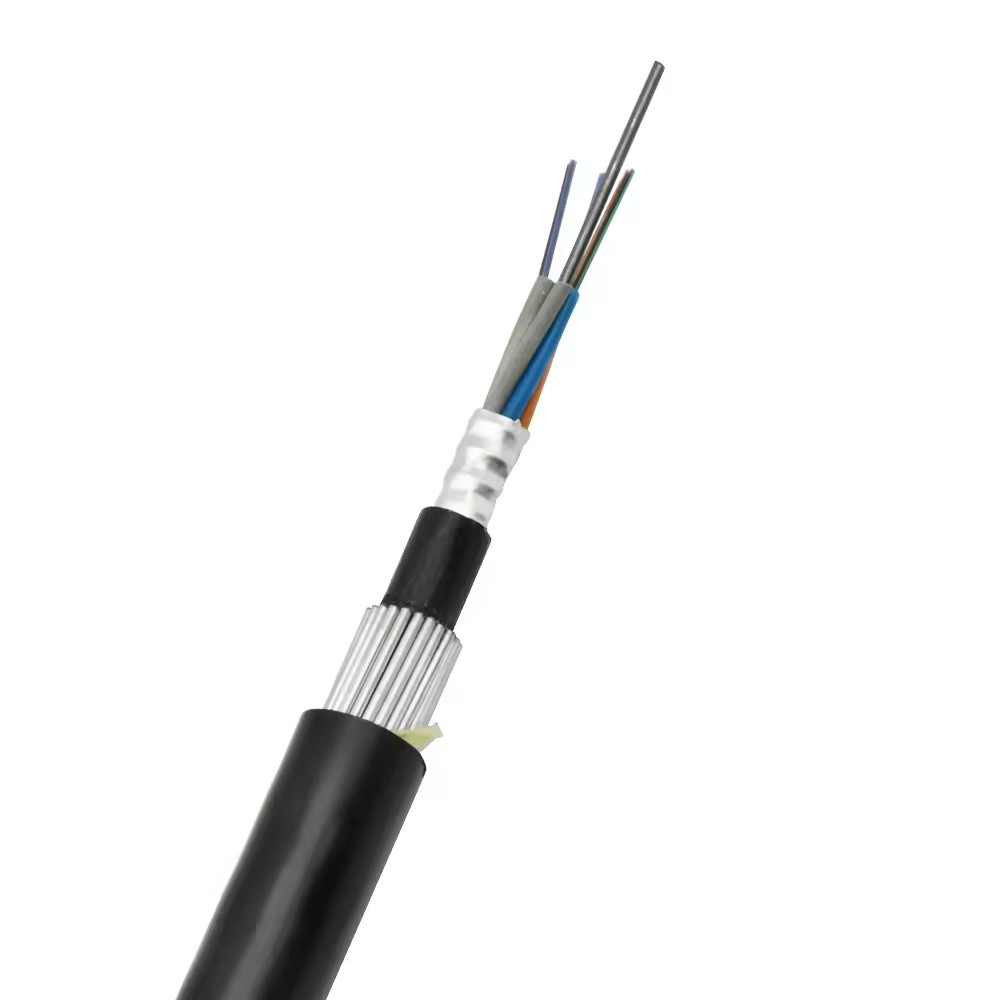

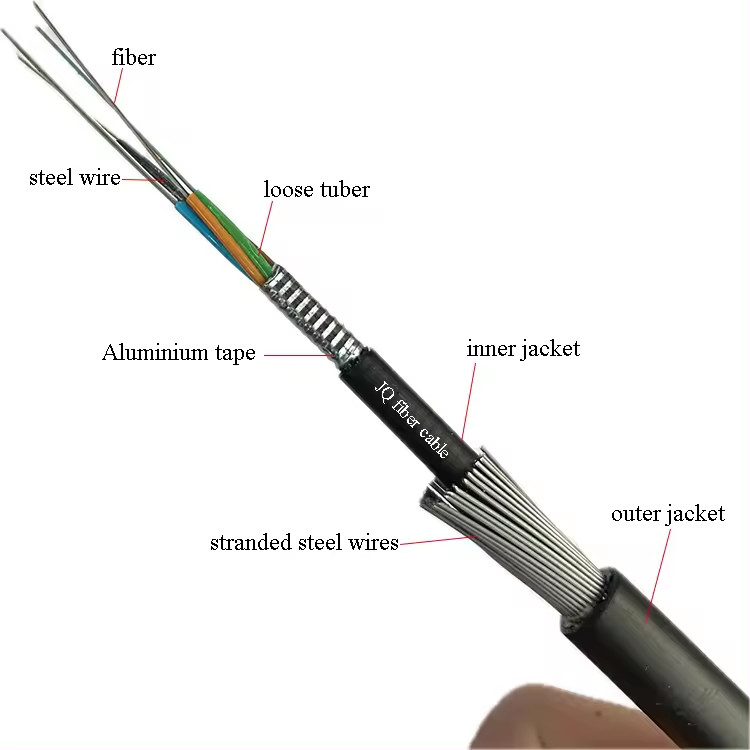

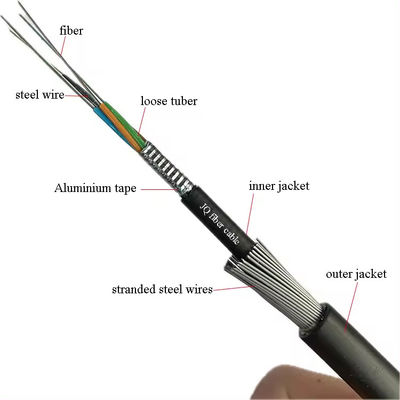

The structure of the GYTA33 optic cable is to sleeve the optical fiber into the PBT loose tube and fill with the thixotropic
compound. The central reinforcement of the cable core is a steel wire (a large core number structure optical cable needs to be extruded with a layer of PE cushion), and the loose tube is twisted around the central reinforcement by SZ stranding. The gaps in the cable core are filled with water-blocking compounds. The outer sheath is armored with a single thin round steel wire and extruded with a layer of polyethylene outer sheath.
Features:
1.High quality optical fiber provides good transmission performance.
2.Accurate fiber excess length control ensures excellent mechanical and temperature performance.
3.Special filling gel filled loose tubes provide perfect optical fiber protection.
4.All section water blocking ensure the cable core reliable performance of moisture-proof and water block.
5.Corrosion resistance phosphated steel wire with high Young's modulus as central strength member gives desirable tensile strength.
6.Longitudinally Armor with both side coated aluminum tape and stranded steel wires armoring meet the requirements of high crush resistance, tensile strength, bulletproof property, heavy duty direct bury underwater installation.
7.Strict craft and raw material control enable lifespan over 30 years.
Application:
* Long distance communication
* Communication between central offices
* underwater area.
Specification:
| Mechanical and Environmental Characteristics |
| Items |
Unite |
Specifications |
| Tension(Long Term) |
N |
4000 |
| Tension(Short Term) |
N |
10000 |
| Crush(Long Term) |
N/10cm |
3000 |
| Crush(Short Term) |
N/10cm |
5000 |
| Min. Bend Radius(Dynamic) |
mm |
20D |
| Min. Bend Radius(Static) |
mm |
10D |
| Installation Temperature |
℃ |
-10～+60 |
| Operating Temperature |
℃ |
-40～+60 |
| Storage Temperature |
℃ |
-40～+60 |
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
|
Mode field diameter
|
1310nm |
mm |
9.2±0.4 |
| 1550nm |
mm |
10.4±0.8 |
| Cladding diameter |
mm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
mm |
≤0.5 |
| Coating diameter |
mm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
mm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
|
Attenuation Coefficient
|
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dB/km |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. why should you buy from us not from other suppliers?
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication cables like GYXTW,ADSS,GYTC8S,GYTS,GYTA53,ASU 80,OPGW and so on with our import and export rights.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 2-7 days for small quantity,and about 15 days for large quantity.
