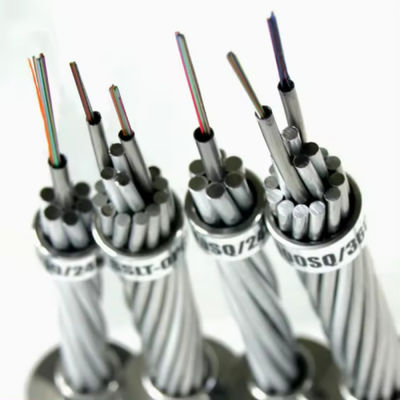

24 Cores 48 Cores Power System Optical Power Ground Wire OPGW Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1 piece | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong，China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | OPGW |
|
Detail Information |
|||
| Model Number: | OPGW | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Application: | Telecommunications | Oem: | Available |
| Brand Name: | JQ/Haiso/OEM | Operating Temperature: | -40℃- +70℃ |
| Warranty: | 2years | Package: | 6PCS/Carton Box |
| Number /diameter Of AC Wire: | 2.4-3.5 Mm | Diameter Of Cable: | 10.5-15 Mm |
| Highlight: | Overhead Ground Optical Fibre Cable,72 Core OPGW Cable |
||
Product Description
Product Description:

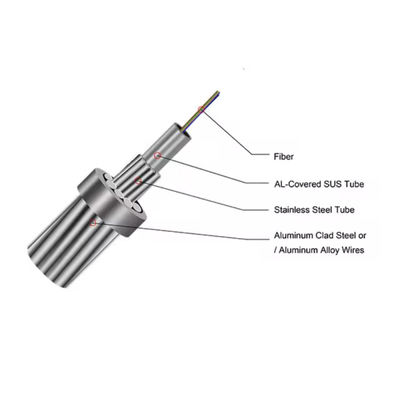

1. Introduction of 24 36 48 96 144 core G652D OPGW fiber optic cable price OPGW is an optical fiber composite overhead ground wire, referred to as OPGW optical cable. The optical fiber unit is put into the overhead ground wire, and the optical cable and the ground wire are organically combined. On the premise of ensuring the original electrical and mechanical properties of the
overhead ground wire, information such as audio, video and data can be transmitted.
Specifications:
| Cable model | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
| Number /diameter(mm) of stainless steel tube | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| Number /diameter of AL wire(mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| Number /diameter of ACS wire(mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Diameter of Cable (mm) | 10.5 | 12 | 13 | 14 | 15 |
| RTS(KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg/km) | 415 | 320 | 374 | 432 | 527 |
| DC resistance(200C W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity(Gpa) | 162 | 96.1 | 95.9 | 95.6 | 97.8 |
| coefficient of Linear thermal | 12.6 | 17.8 | 17.8 | 17.9 | 17.2 |
| expansion(1/℃×10-6) | |||||
| Short circuit capacity (kA²s) | 24 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (℃) | 200 | 200 | 200 | 200 | 200 |
| Max. fiber count | 48 | 32 | 48 | 52 | 30 |
