Wholesale 72 core Armored GYTC8S Cable single mode fiber Fig8 Fiber Optic Cable

Contact Now

Wholesale 72 core Armored GYTC8S Cable single mode fiber Fig8 Fiber Optic Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	GYTC8S

Detail Information
Model Number:	GYTC8S-72F	Type:	Outdoor Fiber Optic Cable
Place Of Origin:	Guangdong, China	Fiber Type:	G652D/G657A1/G657A2
Color:	Customized	Jacket:	PE,MDPE,LSZH,PVC
Central Strength Member:	Steel Wire	Armor:	Steel Tape
Package:	Wooden Drum/Customized	Length:	3000M/drum, Or As Required
Application:	Aerial,Overhead	Oem:	Available
Service:	OEM ODM Accept	Bending Radius:	10D~20D
Highlight:	72 core Fig8 Fiber Optic Cable , Armored Fig8 Fiber Optic Cable

Product Description

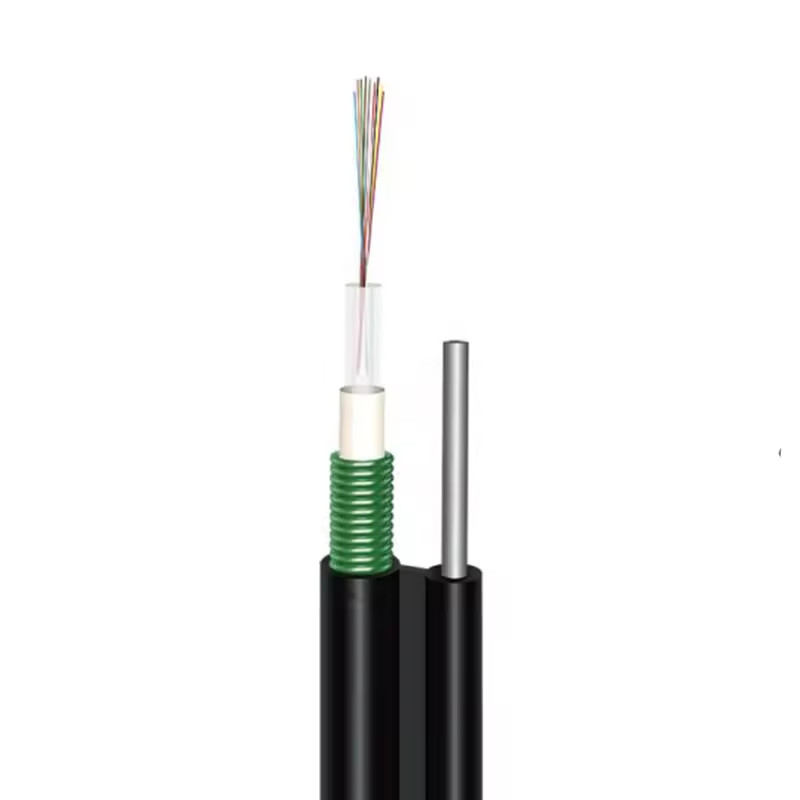

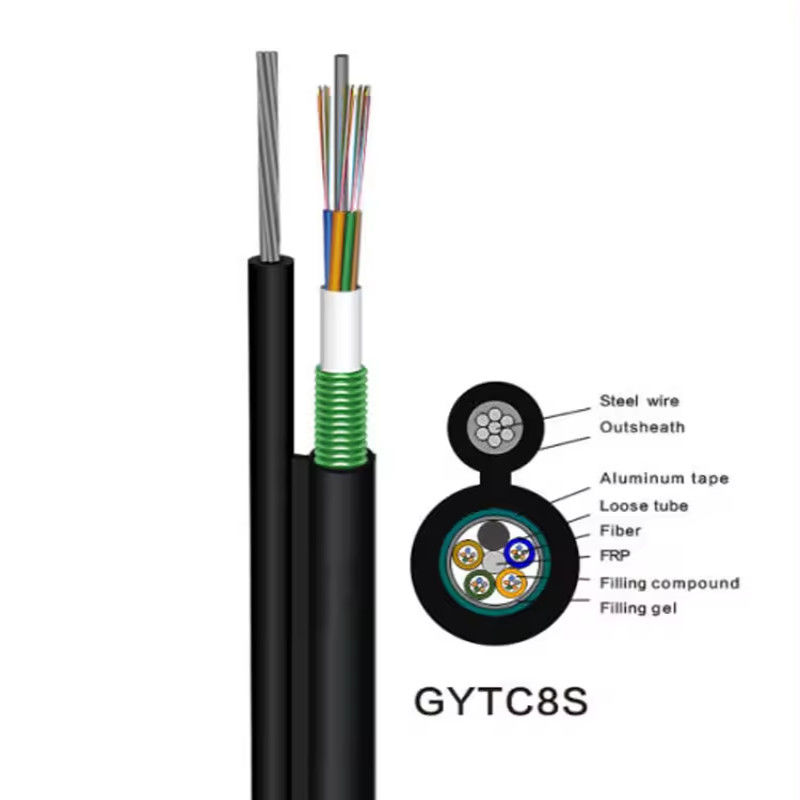

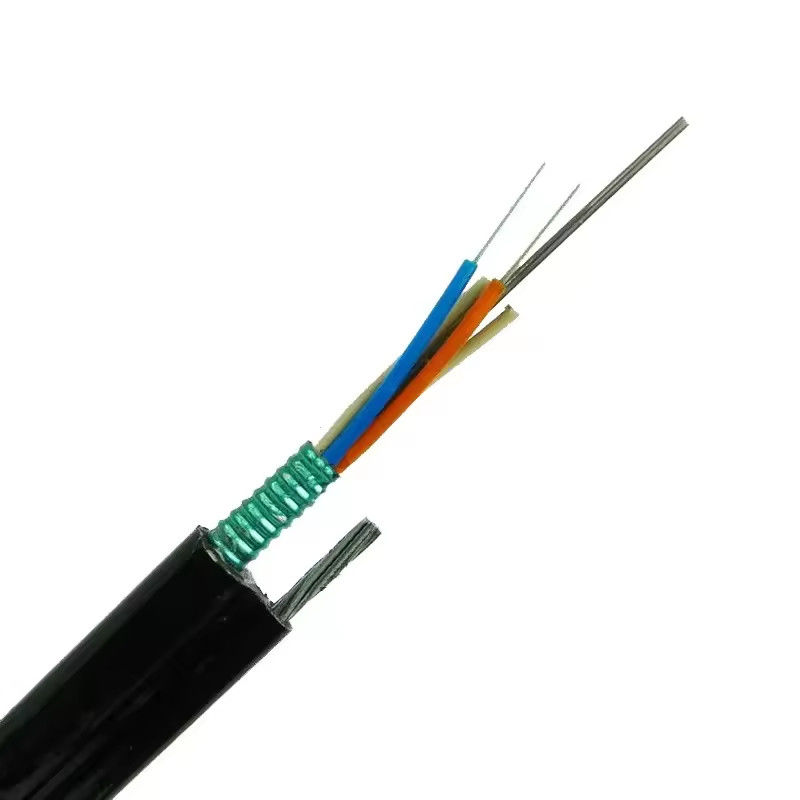

GYTC8S is a typical outdoor use fiber optic cable for aerial applications; GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYTC8S fiber cables from 2-fiber type to 96-fiber type.

Fiber count	1-288 core
Fiber Type:	G652D
Crush Resistance Long term:	300 (N/100MM)
Crush Resistance Short term:	1000(N/100MM)
Overall Diameter	11.4mm~13.10mm
Sheath:	PE

Features:

♦ Excellent mechanical and temperature performance.
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.
♦ APL(or PSP) tape longitudinal cover cable core as moisture barrier.
♦ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation.
♦ Application:Self-supporting/Aerial

Wholesale 72 core Armored GYTC8S Cable single mode fiber Fig8 Fiber Optic Cable 0

Specification:

item	value
Model Number	GYTC8S
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Structure	Multi loose tube
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	Steel wire
Loose tube	Jelly filled
Loose tube	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Application	Aerial,Overhead
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

Company Profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Europe,Mideast and Southeast Asia.Africa.

Wholesale 72 core Armored GYTC8S Cable single mode fiber Fig8 Fiber Optic Cable 1

Certification:

Wholesale 72 core Armored GYTC8S Cable single mode fiber Fig8 Fiber Optic Cable 3

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
