Product Description
Characteristics:
* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber.
* Crush resistance and flexibility.
The following measures are taken to ensure the cable watertight.
- Steel wire used as the central strength member.
- Loose tube filling compound.
- 100% cable core filling.
- APL moisture barrier.
- PSP enhancing moisture-proof.
- Water-blocking material.
Fiber parameter:
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
|
Mode field diameter
|
1310nm |
mm |
9.2±0.4 |
| 1550nm |
mm |
10.4±0.8 |
| Cladding diameter |
mm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
mm |
≤0.5 |
| Coating diameter |
mm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
mm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
|
Attenuation Coefficient
|
1310nm |
dB/km |
0.36 |
| 1550nm |
dB/km |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |
Dimensions of Cable Constructions
|
Fiber count
|
Structure
|
Fibers per tube
|
Loose tube diameter (mm)
|
CSM
diameter/pad diameter (mm)
|
Nominal Thickness of outer jacket
(mm)
|
Cable diameter/ Height (mm)
|
Cable weight (kg/km)
|
| 4 |
1+5 |
4 |
1.8±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 6 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 8 |
1+5 |
8 |
1.9±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 12 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 24 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 36 |
1+6 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
8.8±0.3 |
85 |
| 48 |
1+5 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
9.3±0.3 |
90 |
| 60 |
1+5 |
12 |
1.95±0.1 |
1.6/1.6 |
1.6 |
9.3±0.3 |
90 |
| 72 |
1+6 |
12 |
1.95±0.1 |
2.0/2.0 |
1.6 |
9.6±0.3 |
95 |
| 96 |
1+8 |
12 |
1.95±0.1 |
1.4/3.2 |
1.6 |
11.5±0.3 |
120 |
| 144 |
1+12 |
12 |
1.95±0.1 |
2.0/5.7 |
1.8 |
14.2±0.3 |
185 |
| 216 |
1+6+12 |
12 |
1.95±0.1 |
2.0/2.0 |
1.8 |
14.5±0.3 |
200 |
| 288 |
1+9+15 |
12 |
1.95±0.1 |
2.0/3.7 |
1.8 |
16.2±0.3 |
240 |
|
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance |
IEC 60794–1-2-E |
| Max. Operation Tension |
IEC 60794–1-2-E1 |
| Crush Test |
IEC 6079 –1-2-E3 |
| Impact Test |
IEC 60794–1-2-E4 |
| Repeated Bending |
IEC 60794–1-2-E6 |
| Torsion Test |
IEC 60794–1-2-E7 |
| Cable bend |
IEC 60794–1-2-E11A |
| Attenuation Coefficient |
ITU-T G.652 |
| Structural Test |
IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling |
IEC 60794–1-2-F1 |
| Water Penetration |
IEC 60794–1–2-F5B |
| Filing Compound Flow |
IEC 60794-1-E14
|

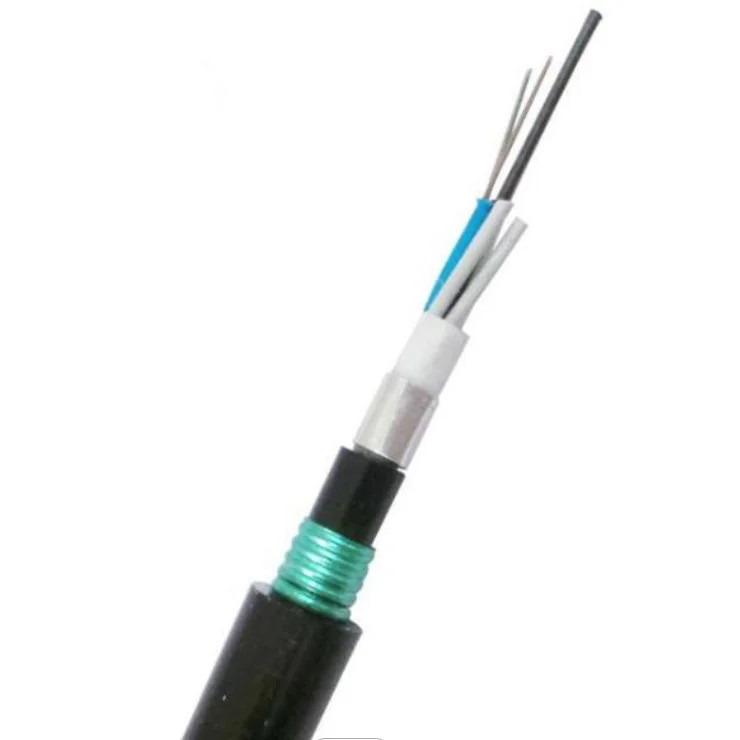

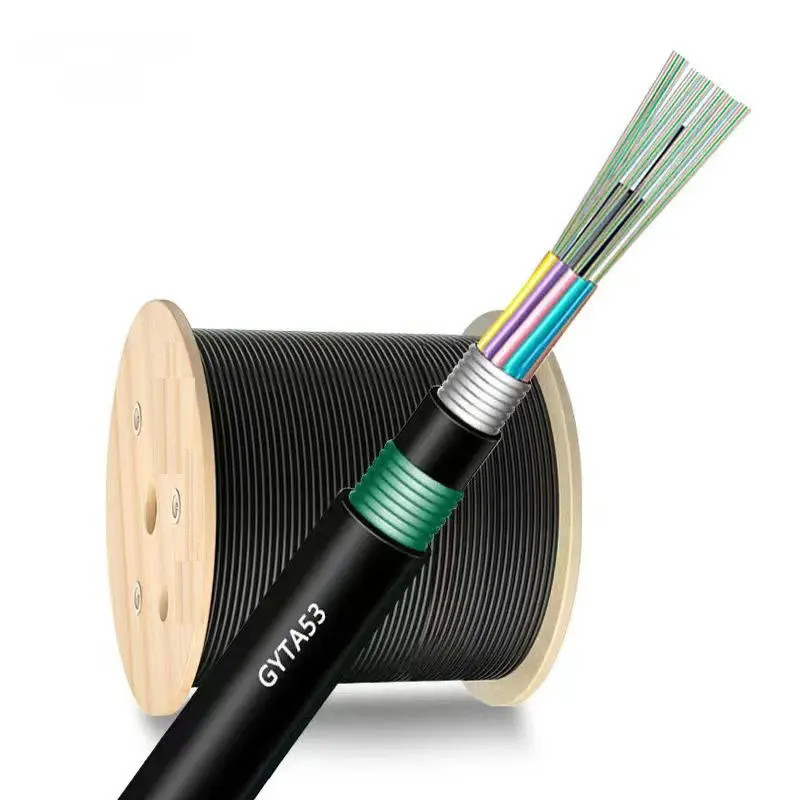

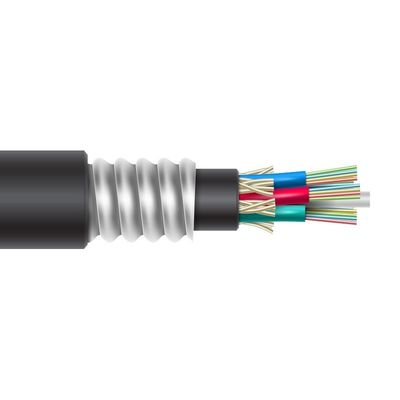

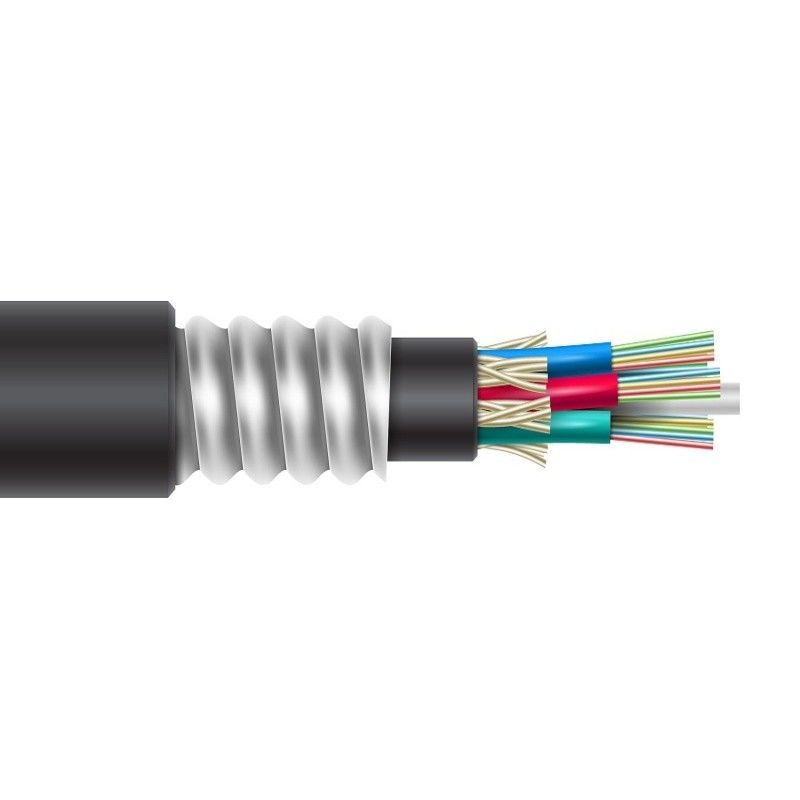

Cable Structure
&The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
&Besides, corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
&And metal strength member provides excellent strain performance.
Packing
1/2/3/4km or customized length export wooden drum.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
