Product Description
Characteristics:
•Good mechanical and temperature performance
•Low attenuation and dispersion

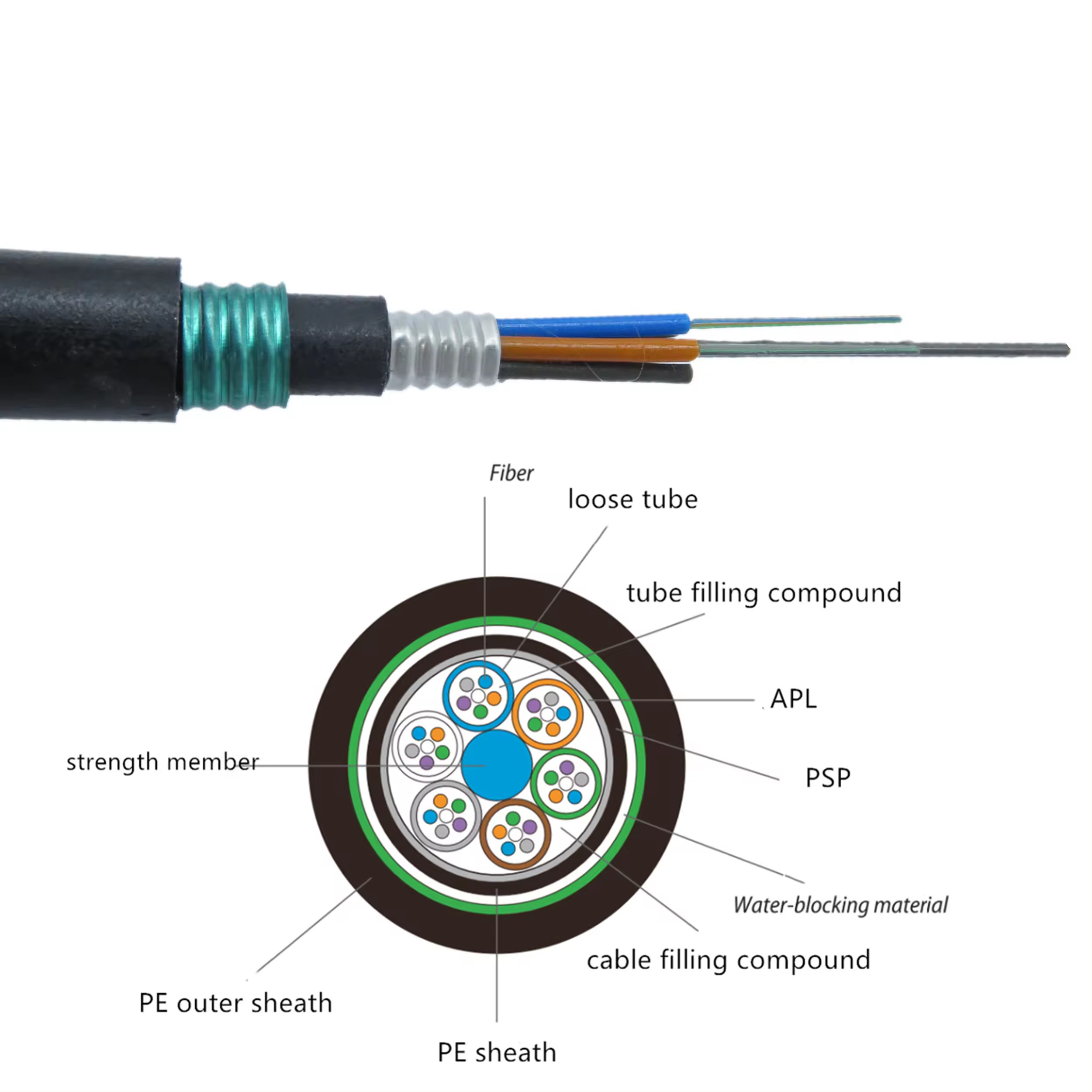

•Special designed compact structure is good at preventing loose tube from shrinking
•Special tube filling compound ensure a critical protection of fiber

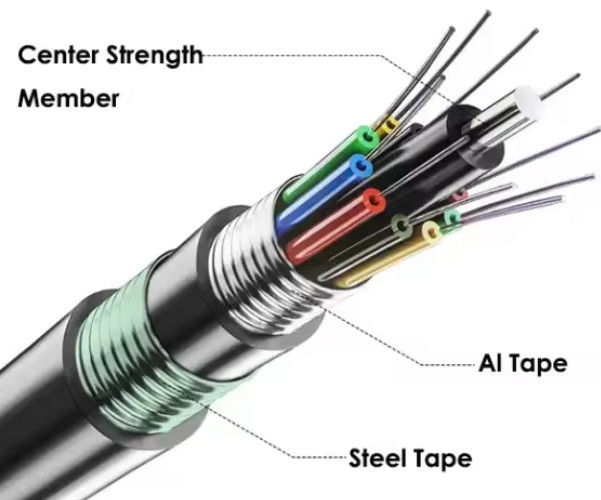

•Plastic coated aluminum tape (APL) moisture barrier.
•Double-sided coated steel strip (PSP) improves the moisture resistance of the cable.
•Good water blocking material prevents longitudinal leakage of the cable.
Fiber parameter:
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
|
Mode field diameter
|
1310nm |
mm |
9.2±0.4 |
| 1550nm |
mm |
10.4±0.8 |
| Cladding diameter |
mm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
mm |
≤0.5 |
| Coating diameter |
mm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
mm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
|
Attenuation Coefficient
|
1310nm |
dB/km |
0.36 |
| 1550nm |
dB/km |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |
Dimensions of Cable Constructions
|
Fiber count
|
Structure
|
Fibers per tube
|
Loose tube diameter (mm)
|
CSM
diameter/pad diameter (mm)
|
Nominal Thickness of outer jacket
(mm)
|
Cable diameter/ Height (mm)
|
Cable weight (kg/km)
|
| 4 |
1+5 |
4 |
1.8±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 6 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 8 |
1+5 |
8 |
1.9±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 12 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 24 |
1+5 |
6 |
1.85±0.1 |
1.4/1.4 |
1.4 |
8.5±0.3 |
75 |
| 36 |
1+6 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
8.8±0.3 |
85 |
| 48 |
1+5 |
12 |
1.95±0.1 |
1.5/1.5 |
1.6 |
9.3±0.3 |
90 |
| 60 |
1+5 |
12 |
1.95±0.1 |
1.6/1.6 |
1.6 |
9.3±0.3 |
90 |
| 72 |
1+6 |
12 |
1.95±0.1 |
2.0/2.0 |
1.6 |
9.6±0.3 |
95 |
| 96 |
1+8 |
12 |
1.95±0.1 |
1.4/3.2 |
1.6 |
11.5±0.3 |
120 |
| 144 |
1+12 |
12 |
1.95±0.1 |
2.0/5.7 |
1.8 |
14.2±0.3 |
185 |
| 216 |
1+6+12 |
12 |
1.95±0.1 |
2.0/2.0 |
1.8 |
14.5±0.3 |
200 |
| 288 |
1+9+15 |
12 |
1.95±0.1 |
2.0/3.7 |
1.8 |
16.2±0.3 |
240 |
|
We produce and test cable comply with following standard:
| Mechanical Performance |
| Max Tension Performance |
IEC 60794–1-2-E |
| Max. Operation Tension |
IEC 60794–1-2-E1 |
| Crush Test |
IEC 6079 –1-2-E3 |
| Impact Test |
IEC 60794–1-2-E4 |
| Repeated Bending |
IEC 60794–1-2-E6 |
| Torsion Test |
IEC 60794–1-2-E7 |
| Cable bend |
IEC 60794–1-2-E11A |
| Attenuation Coefficient |
ITU-T G.652 |
| Structural Test |
IEC-60793-1-20 |
| Environmental Performance |
| Temperature Cycling |
IEC 60794–1-2-F1 |
| Water Penetration |
IEC 60794–1–2-F5B |
| Filing Compound Flow |
IEC 60794-1-E14
|
Packing

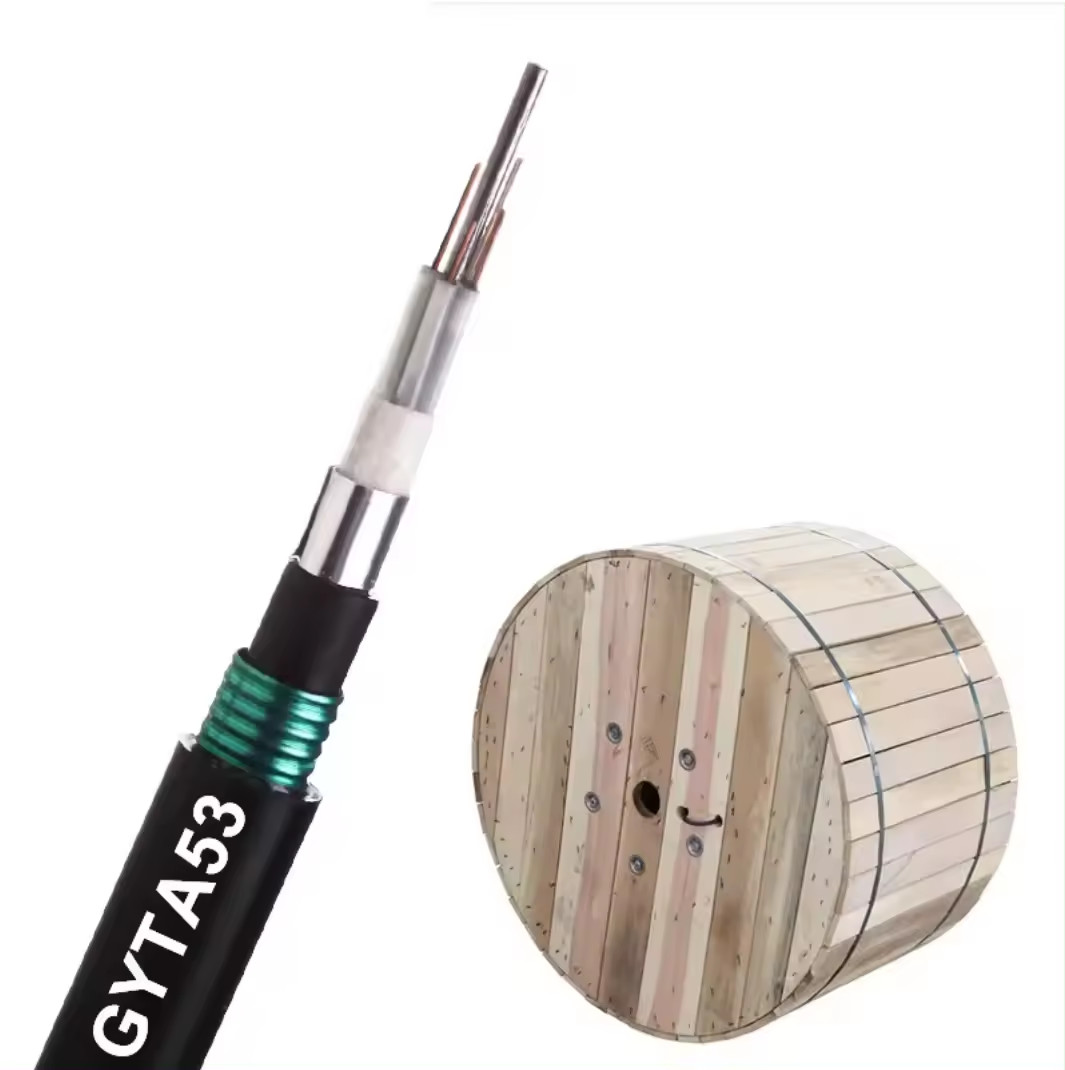

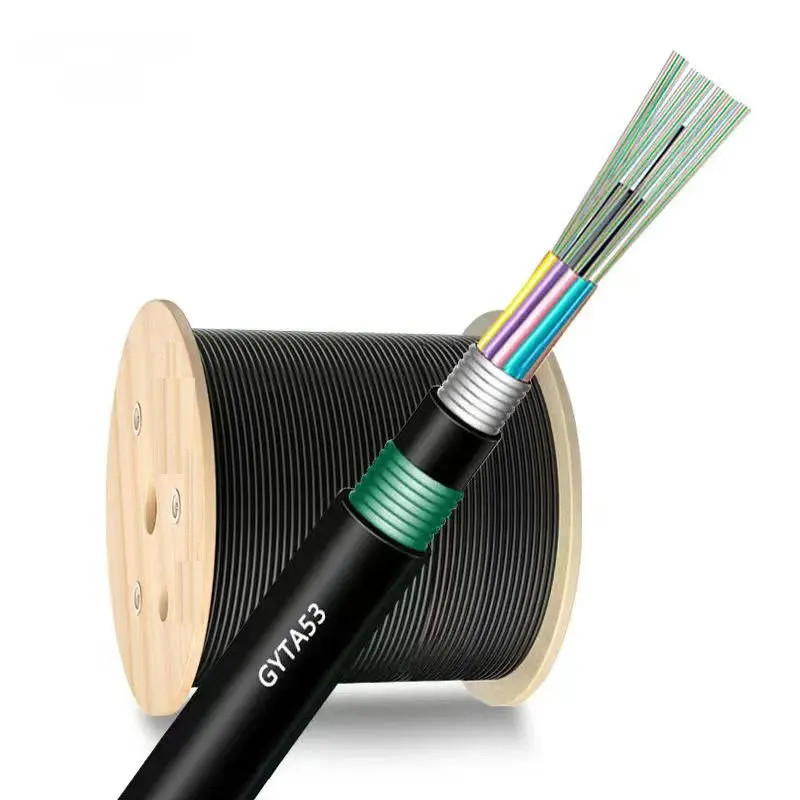

1/2/3/4km or customized length export wooden drum.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Our service:
1. Premium Quality Products: Our cables are engineered to deliver superior performance and reliability, ensuring seamless data transmission.
2. Customized Solutions: We offer tailored solutions to meet specific requirements, from custom designs to length specifications.
3. Global Distribution: Leveraging our international network, we ensure timely delivery of our products to clients worldwide.
4. Technical Support: Our team provides expert guidance and assistance to optimize the performance of our products.
5. Innovation: We stay ahead of the curve by investing in research and development, offering cutting-edge solutions to drive efficiency and growth.
6. Exceptional Customer Service: We prioritize customer satisfaction, fostering long-term partnerships built on trust and reliability.
FAQ
Q1: Why choose us?
A1: We specialized in the filed of communication for more than 10 years. We cooperate with the most famous companies: China Telecom,China Unicom, China Mobile and so on. We guarantee the quality for our customers and good service.
Q2. Can I have a sample order for this product?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:How can i get your catalogue and price list?
A3:Please let us know your email or contactus from website directly for our catalogue and price list.
Q4:Can you provide the OEM service?
A4: Sure, we have the complete production line, we could do the production as your request.
Q5. what services can we provide?
A5:Accepted Delivery Terms: FOB,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Q6:How about your delivery time?
A6:Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
