GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable

Contact Now

GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ
Certification:	CE/ISO9001	Model Number:	GYTA

Detail Information
Type:	Outdoor Fiber Optic Cable	Place Of Origin:	Guangdong, China
Fiber Type:	G652D/G657A1/G657A2	Fiber Count:	48 Cores
Length:	Customized	Color:	Customized
Tube:	Multi-Loose Tube	Central Strength Member:	Steel Wire
Armoured:	Al Tape	Outer Sheath:	PE Or As Your Request
Package:	Wooden Drum/Customized	Application:	Aerial,Overhead
Oem:	Available	Operating Temperature:	-40°C~+70°C
Certificate:	ISO9001/CE/ROHS
Highlight:	Armored Fiber Optic Cable , Single Mode Armored Fiber Optic Cable

Product Description

GYTA/S APL PSP Armored Stranded Loose Tube Optical Fiber Cable

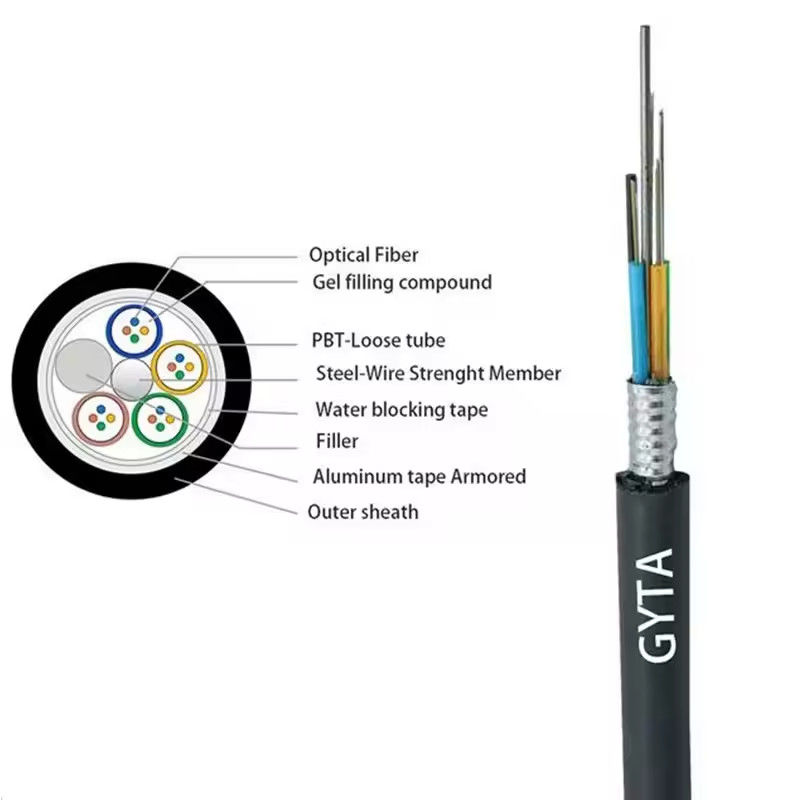

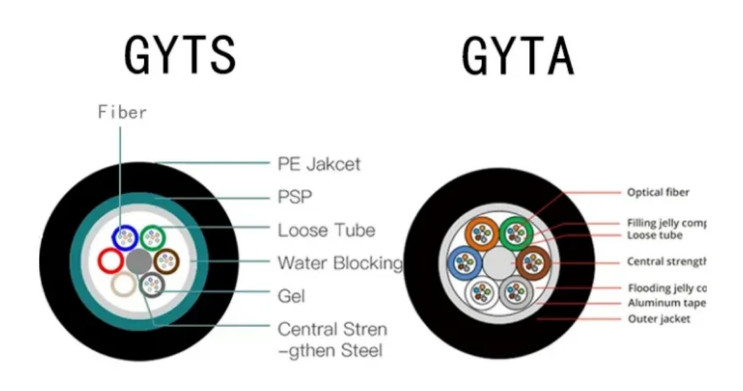

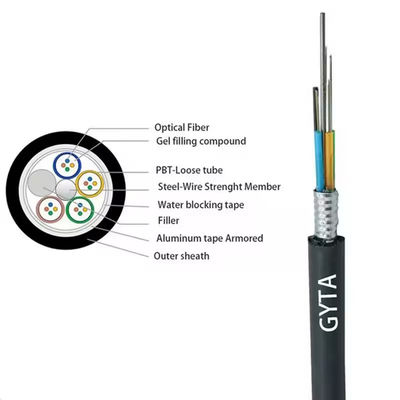

GYTA/S APL PSP Armored Stranded Loose Tube Optical Fiber Cable,The bending insensitive optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The loose tubes with smaller size are stranded to form a cable core. The core is armored with laminated aluminum tape. Then a PE outer sheath is extruded. This structure has a smaller size to enhance installation density of fibres in ducts.

The Main Features Of GYTA/S Fiber Cable
1.Accurate process control ensuring good mechanical and temperature performances,
2.The material of loose tubes with good hydrolysis resistance and relatively high strength Tube filling compound providing the key protection for fibres,
3.Using small-sized B6a2 fibres with good micro and macro bending performance,
4.Comply with IEC60794-3-11(2007): Optical fibre cables- Part 3-11,
5.Water resistance of optical cable is ensured by the following measures: Special water-blocking compound filled in loose tubes,
6.Laminated aluminum tape armorCable filling compound ensuring longitudinal water resistance.

GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable 0

Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit. GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable 1

Specification:

item	value
Model Number	GYTA
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Loose tube material	PBT
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum/Steel Tape armor
Color	Black or as your need
Package	Fumigation free wooden drum
Installation	aerial, in duct
Certification	CE/ROHS/ISO9001 /ANATEL
OEM	Available

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable 2

WHY CHOOSE US:

GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable 3

Certification:

GYTS GYTA 48 Core G652D Single Mode Stranded Loose Tube Armored Fiber Optic Cable 4

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in Guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
T/T, L/C, Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
