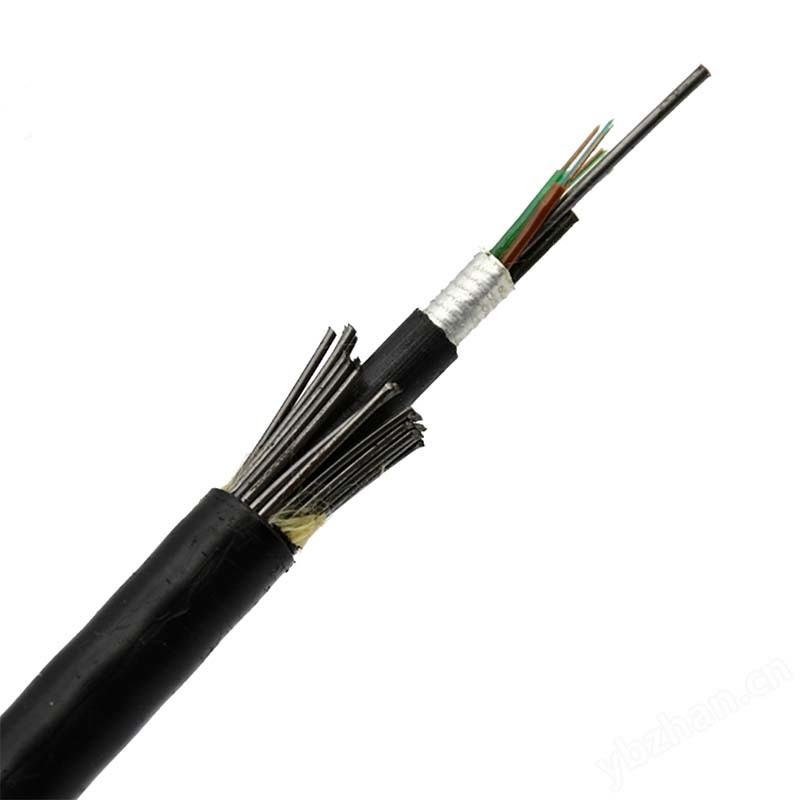

Anti-Rodent Underwater Underground GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable

Product Description

GYTA33 directly burial underwater &underground fiber cable

Product Description

▶  GYTA33 optical cable is to put 250um optical fiber into a loose sleeve made of high-modulus material. The loose sleeve is filled with waterproof compounds. The center of the cable core is a metal reinforced core. For some core optical cables, a layer of polyethylene (PE) sheath needs to be squeezed outside the metal reinforced core, and the loose sleeve is surrounded by The central reinforcement is twisted into a compact round cable core, and the gap in the cable core is filled with water-blocking filler. After coating the aluminum tape longitudinally, a layer of PE inner sheath is squeezed, and then a single layer of thin round steel wire armor is longitudinally wrapped, and finally the polyethylene outer sheath is squeezed into a cable.

Features

▶1. The full-section water-resistant structure ensures good water-resistant and moisture-proof performance.

  2. Fill the loose sleeve with special grease to protect the optical fiber.

  3. The cable core is completely filled with water-blocking grease, which effectively prevents longitudinal seepage.

  4. Thin round steel wire wraps armor to meet the application requirements of direct burial, underwater laying, etc.

  5. The double-layer sheath structure increases the pressure-resistant, bulletproof and moisture-proof performance of optical cables.

  6. Multi-layer protection to effectively prevent mechanical damage and rodent injury.

Applications:

▶ 1. Long-distance communication: Realize long-distance optical fiber communication in underwater environments such as seabeds or rivers.

   2.Local communication: short-distance optical fiber communication near rivers, lakes and other waters in cities or villages.

   3. Direct buried communication: GYTA33 optical cable can provide stable communication performance in occasions where direct buried optical cables are needed, such as near highways, railways and other transportation trunk lines.

   4. The service life of GYTA33 optical cable is generally up to more than 25 years, thanks to its excellent structural design and material selection. In the process of use, the integrity of the optical cable should be checked regularly, and potential problems should be found and dealt with in time to ensure the long-term stable operation of the optical cable

Optical Characteristics

Detail product pictures

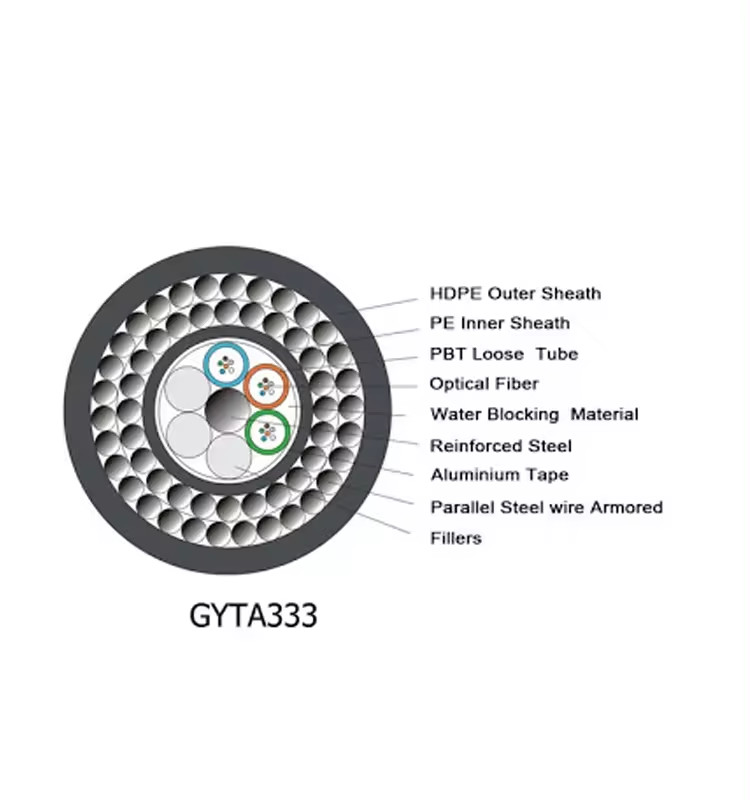

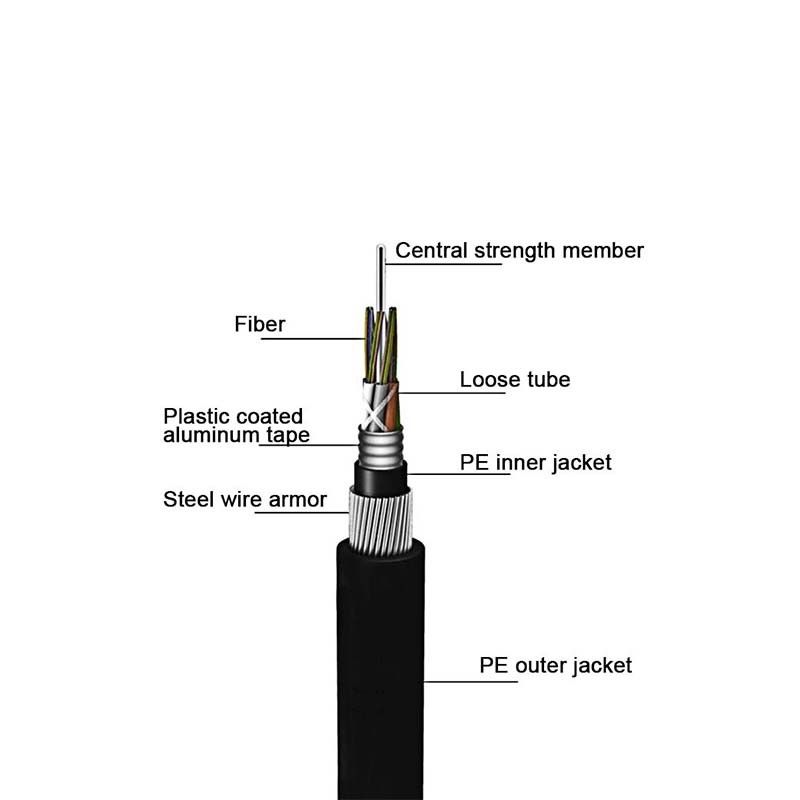

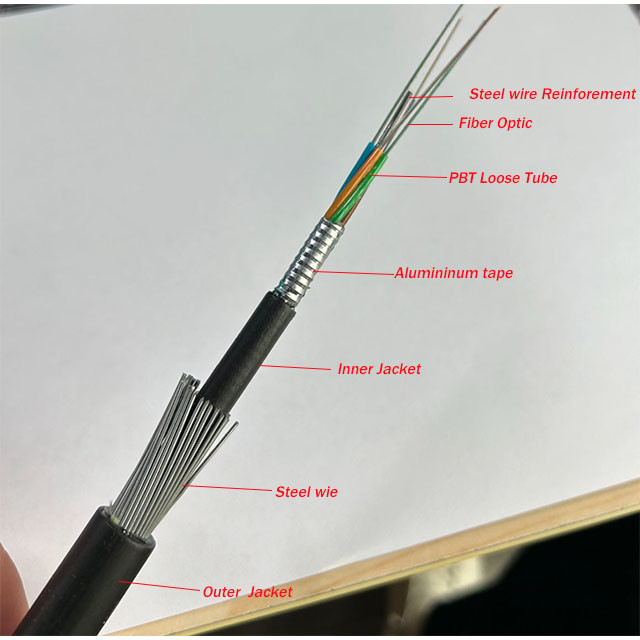

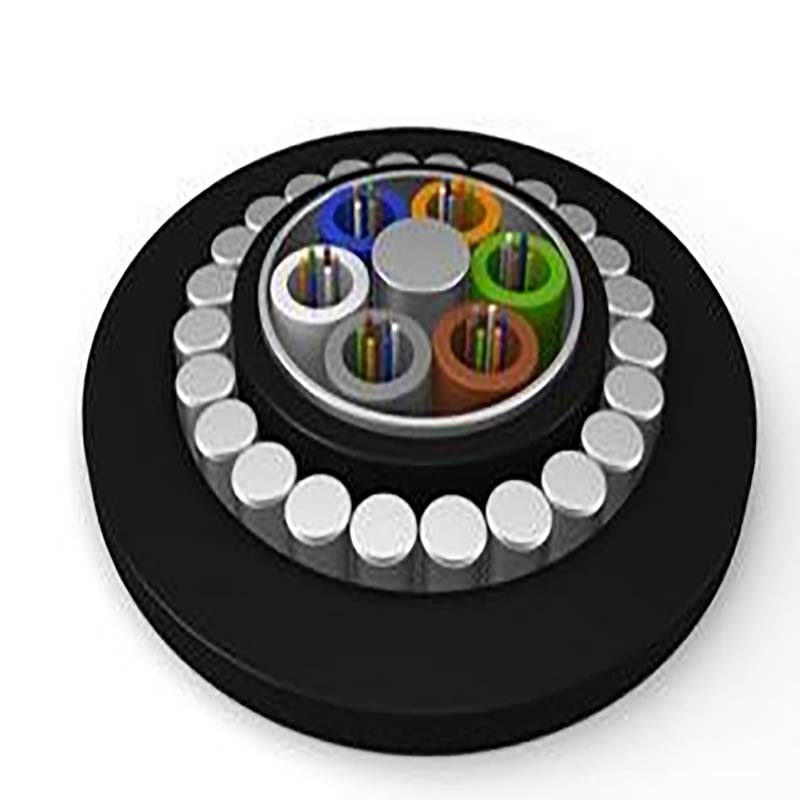

                                                                       cable structure

                                                           underwater application

                                                       underwater application

                                                      underground  application

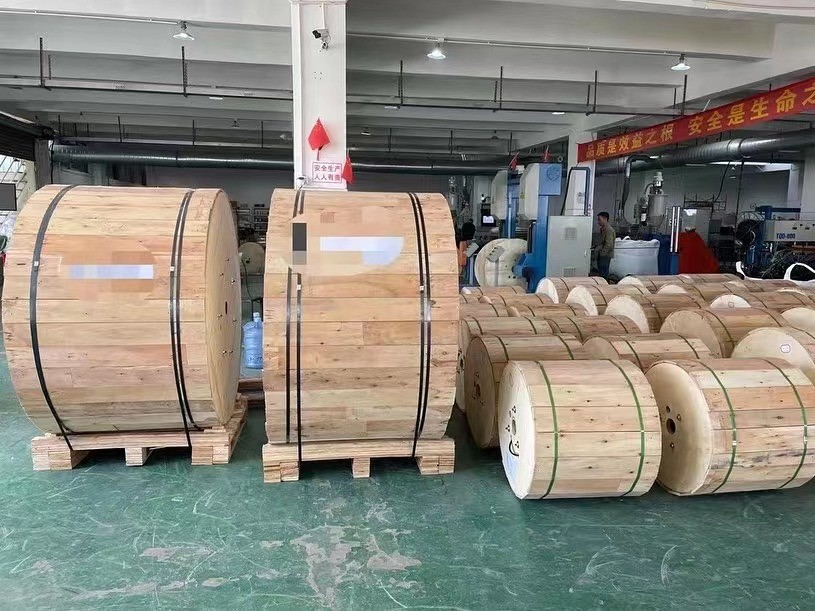

factory shows

FAQ

Q1:  How the warranty for products ?

A: 10 years,and maintance for whole life

Q2:  Can we make OEM for products?

A: Yes, we can print your logo or label on the products or on the box.

Q3:  Can you provide free samples ?

A:  you can get free samples from my company.

Q4: Are you factory direct?
A:we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
