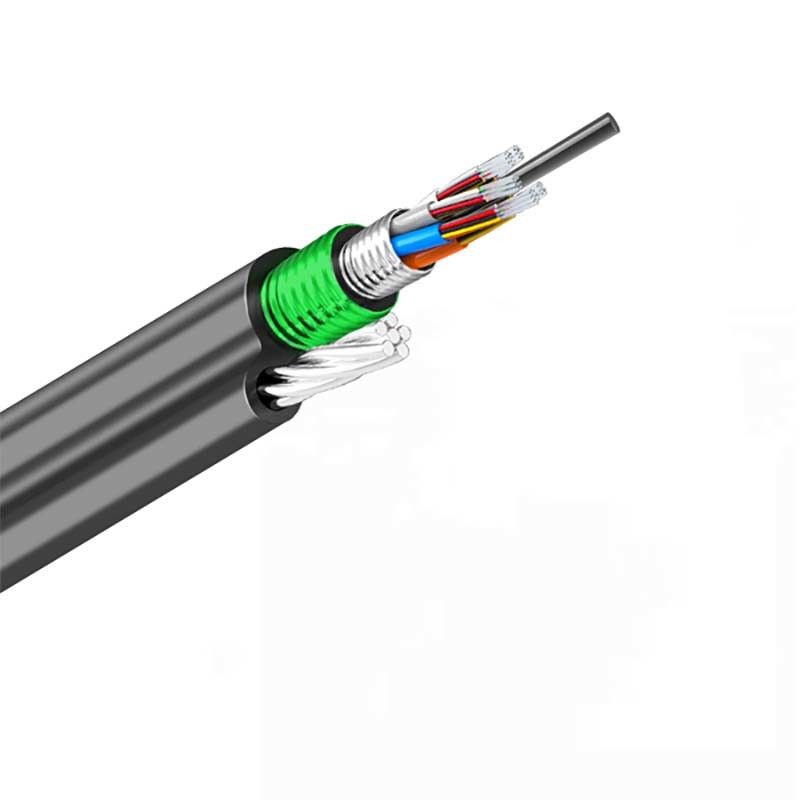

GYTC8A53 GYTC8S53 GYFTC8S53 double jacket double armor figure 8 fiber optic cable
Product Description

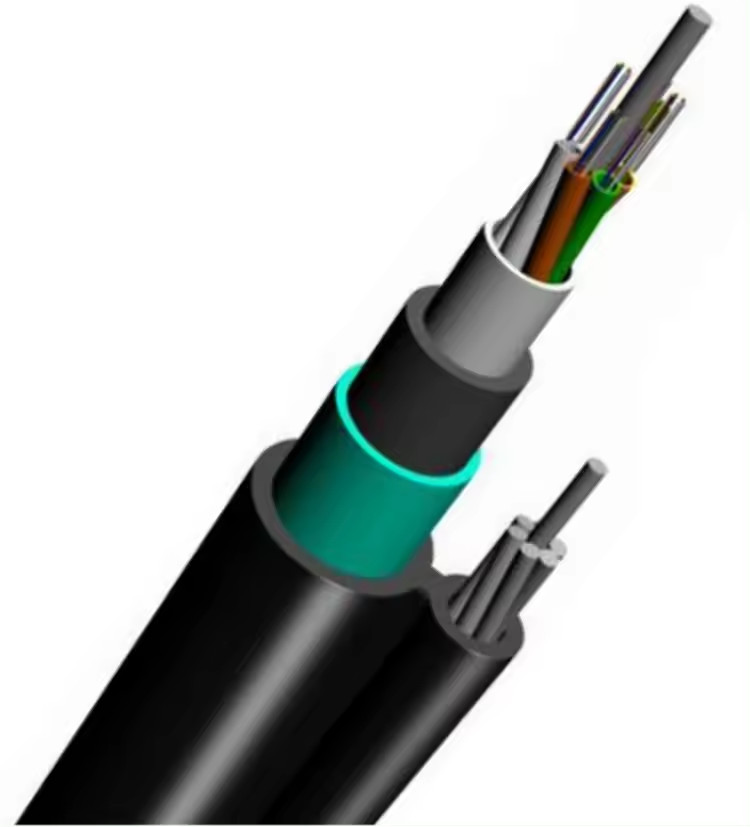

▶ The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After the corrugated steel tape is applied around the cable core, then it is wrapped with inner sheath.Then the PSP is around the inner sheath, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
Features
Whole section water blocking structure ensures good water blocking performance Special tube filling compound ensure a critical protection of fiber Accurate residual length control ensures that cable has good tensile and temperature performance The armor by smooth round steel wire greatly strengthens the tensile strength and improves the crush resistance of fiber optical cable Polyethylene sheath has good radiation resistance The service life of the product is more than 30 years.
Applications:
• Adopted to Outdoor distribution.
• Suitable for directly burial aying method.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
Fiber
Count |
Diameter
(MI) |
Weight
(KG/KMI) |
Min.Bend Radius |
Mlin.Tension
(N) |
Crush
(N/100MMl) |
| Static |
Dynamic |
Long Term |
Short Term |
Long Term |
Short Term |
| 2-30 |
13.5 |
245 |
10
Times
Diameter
|
20
Times
Diameter
|
4000 |
10000 |
3000 |
5000 |
| 32-36 |
13.8 |
252 |
4000 |
10000 |
3000 |
5000 |
| 38-60 |
14.5 |
275 |
4000 |
10000 |
3000 |
5000 |
| 62-72 |
15.0 |
285 |
4000 |
10000 |
3000 |
5000 |
| 74-96 |
15.5 |
295 |
4000 |
10000 |
3000 |
5000 |
| 98-120 |
16.0 |
305 |
4000 |
10000 |
3000 |
5000 |
| 122-144 |
17.0 |
315 |
4000 |
10000 |
3000 |
5000 |
| 146-216 |
19.0 |
345 |
4000 |
10000 |
3000 |
5000 |
| 218-240 |
20.5 |
365 |
4000 |
10000 |
3000 |
5000 |
| 242-288 |
21.5 |
395 |
4000 |
10000 |
3000 |
5000 |
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

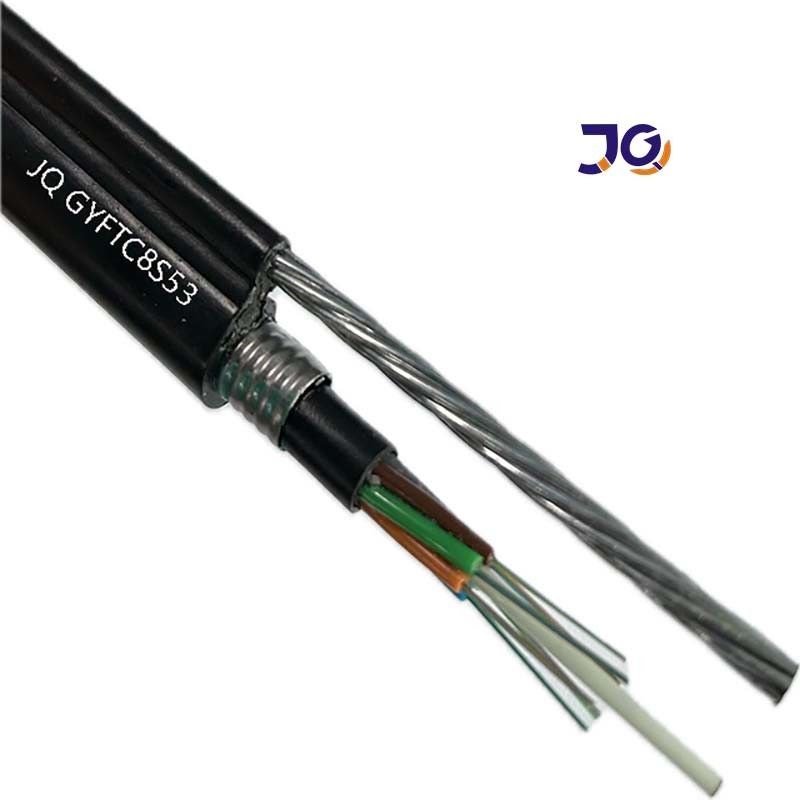

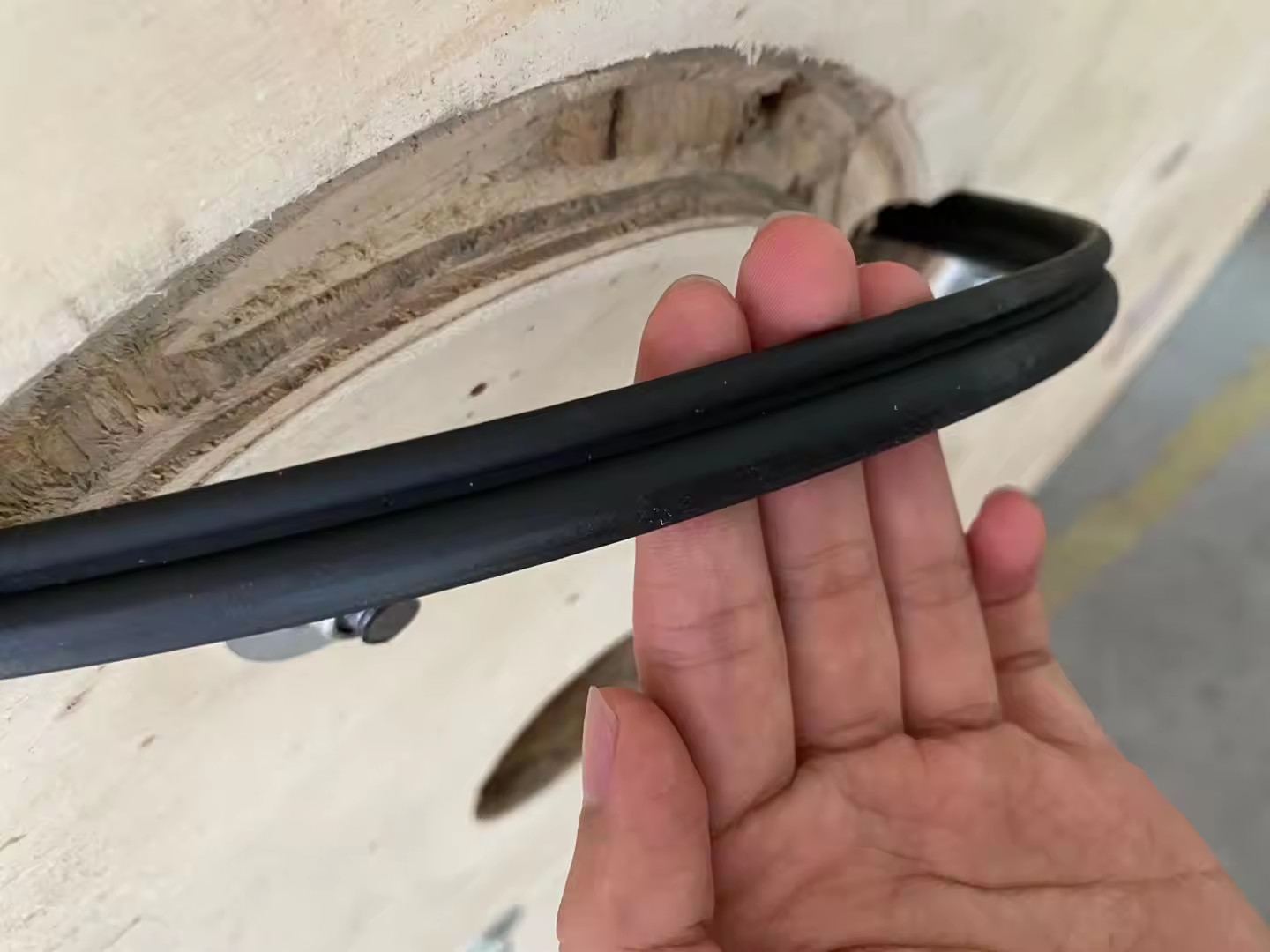

Detail product pictures
FAQ
Q1: How the warranty for products ?
A: 2 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: you can get free samples from my company.
Q4: Are you factory direct?
A:we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
Q5: What is your main products?
A:Outdoor fiber optic cables such as GYTA33/GYXTC8Y/ADSS ,GYTA, GYFTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables
Q6: Do you have certificate for raw material?
A:We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
