Home ProductsFigure 8 Fiber Optic CableGYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable
Contact Now

GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian/haiso
Certification: ISO/CE/ROHS/FC Model Number: GYTC8S/GYTC8Y/GYTC8A/GYTC8S53

Detail Information
Fiber Type: Single Mode & Multi Mode Oem: Available
Application: Aerial/duct Number Of Conductors: 12 24 48 96 144
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Length: 1KM OR 2KM OR 5km
Highlight:

Armored Figure 8 Fiber Optic Cable

,

Armored Figure 8 fiber optic cable

,

GYTC8S Figure 8 fiber optic cable

Product Description

GYTC8S Figure 12 24 Stranded Loose Tube Messenger Wire Aerial outdoor Fiber Optic cable 2KM/Price

Self-Supporting Aerial 48 Core GYTC8S Outdoor Fiber Optical Communication Cable( 12 Core /loose tube )



figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 0
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 1

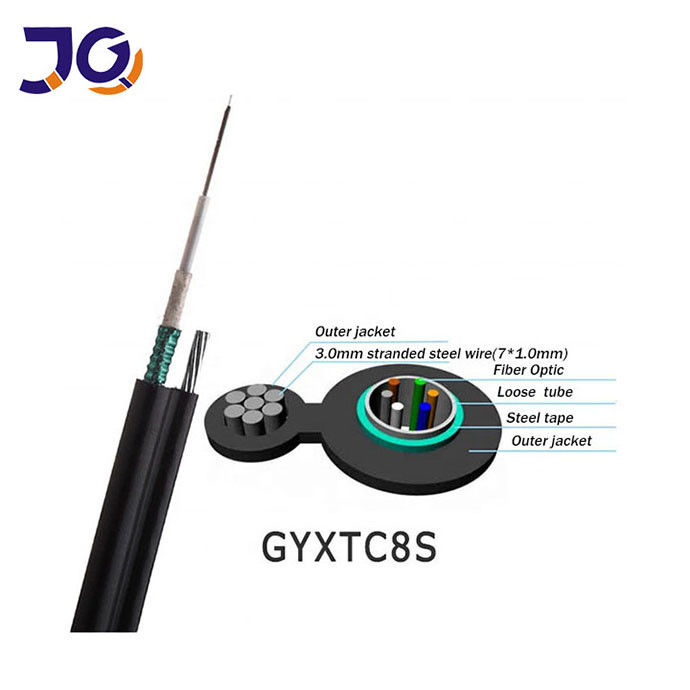

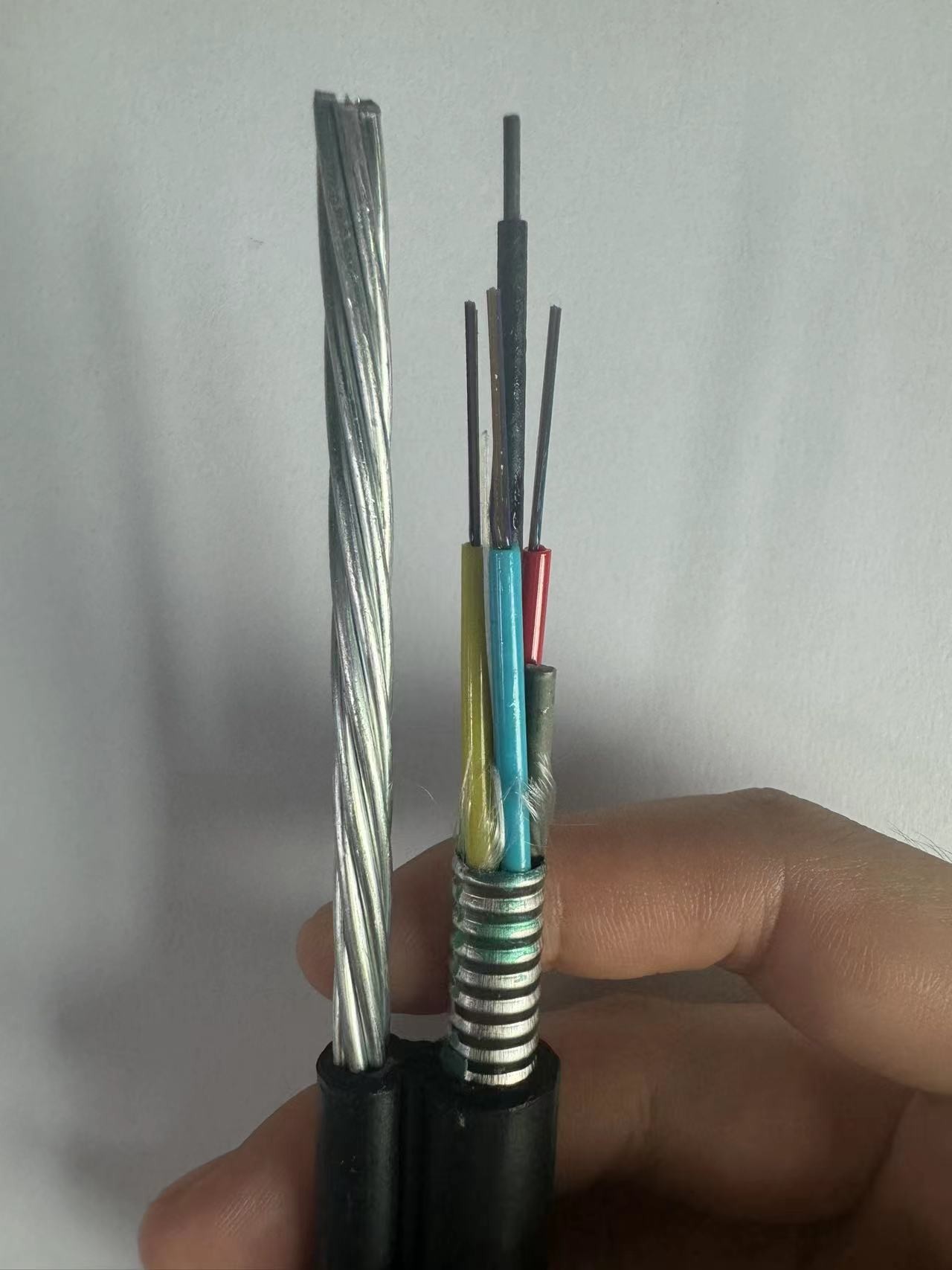

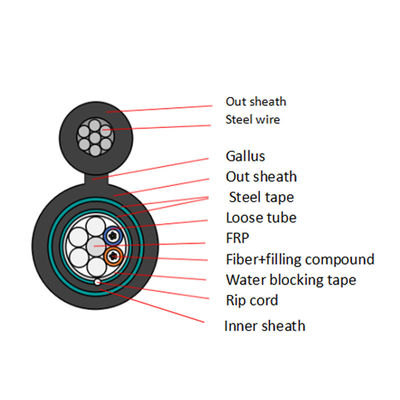

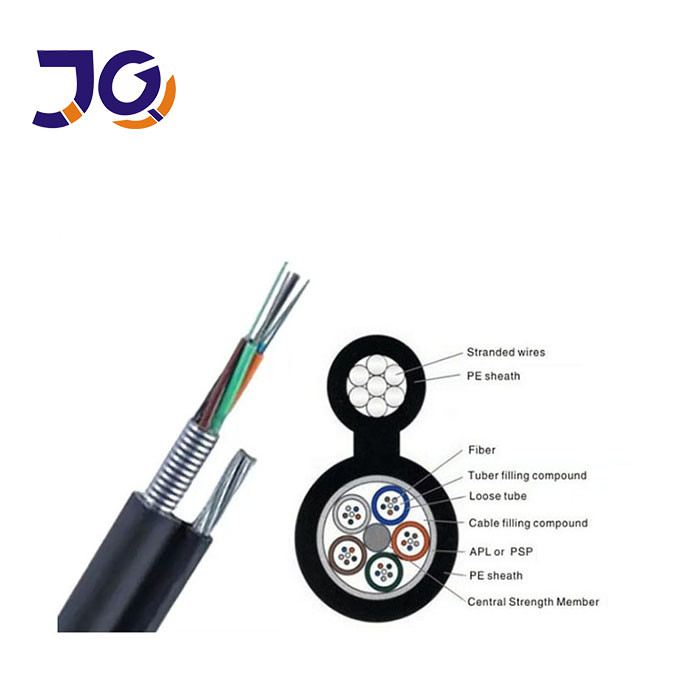

Introduce some detail to you :(Cross -section)
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 2
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 3
GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 4

We Can customize :Such as add color bar

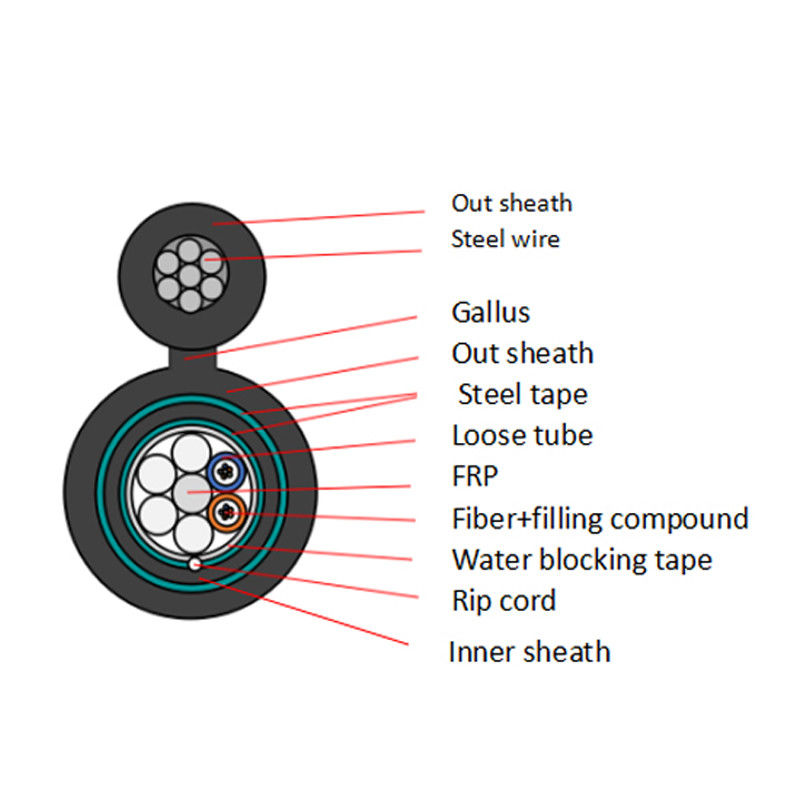

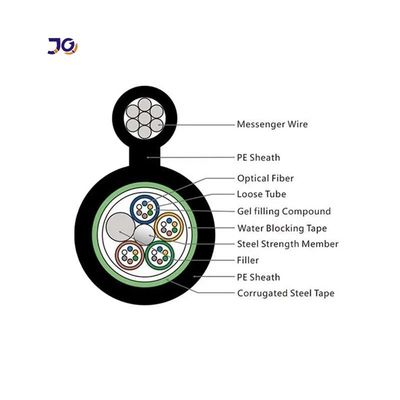

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.Steel wire strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath



Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate: ISO9001/FC/CE/ROHS



Characteristics
1 Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber



Optical Characteristics:

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm



Printing :

1: we support OEM

2:  And print your company name on drum or jacket

3: Customize Jacket Color .



GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 5

Our factory :

GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 6



GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 7

Delivery :

GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 8GYTC8S Figure 8 Fiber Optic Cable 24 48 72 96 Core Optical Fiber Cable Armored Optic Cable 9







FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
