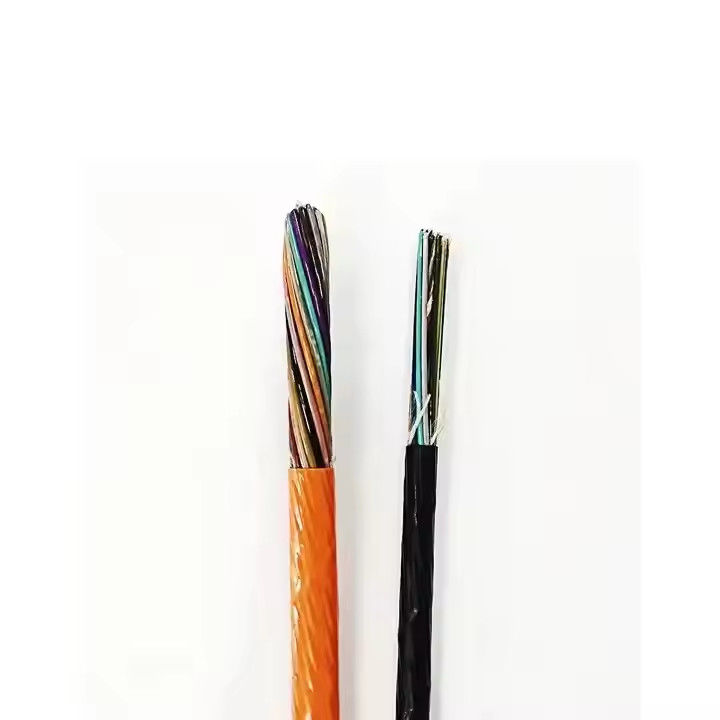

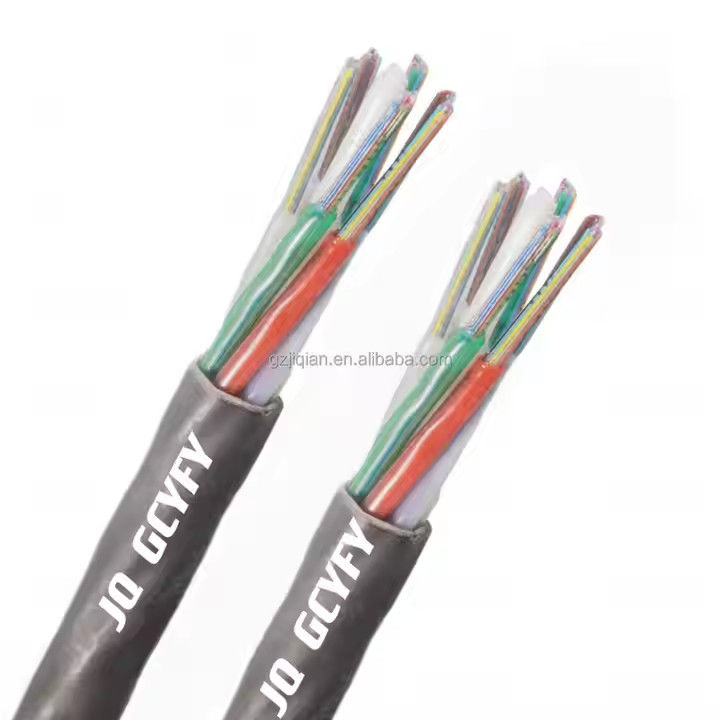

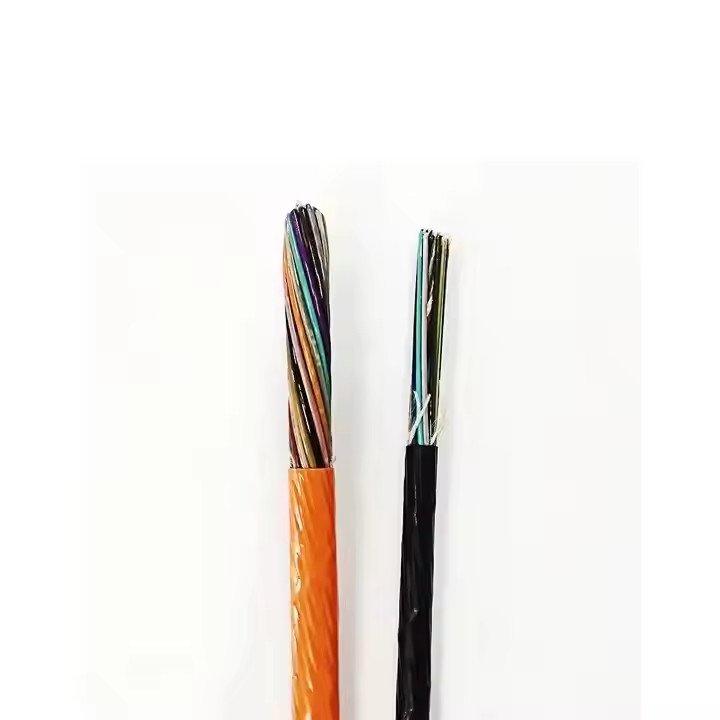

Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH
Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH
Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH
Contact Now

Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH

Minimum Order Quantity : 1km Packaging Details : wooden drum,ply wooden drum
Delivery Time : 3-5days Payment Terms : D/A, T/T
Place of Origin: Guangdong,China Brand Name: JQ
Certification: CE RoHS ISO9001 Model Number: GCYFY

Detail Information
Highlight:

FTTH Single Mode Optical Fiber Cables

,

Single Mode Optical Fiber Cables

,

Micro Single Mode Optical Fiber Cables

Product Description





Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes Used for FTTH



Product Description
Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH 0

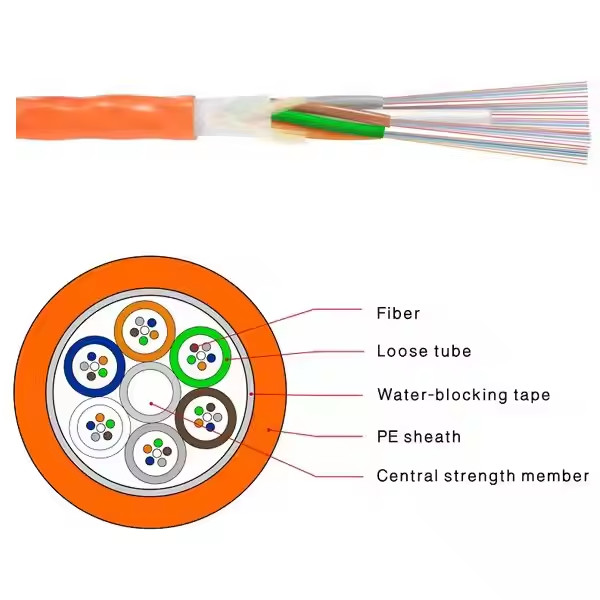

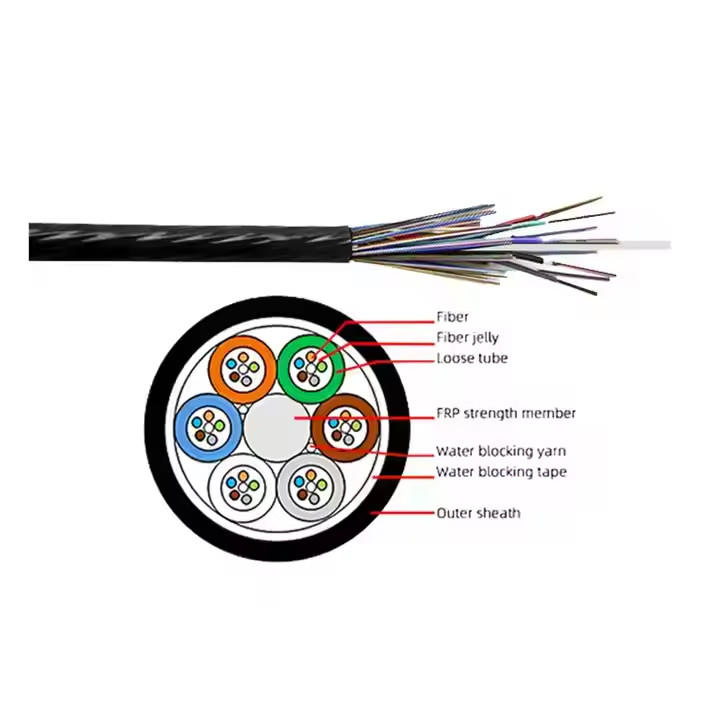

Air-blown Micro Optical Fiber Cable GYCFTY 2-288core

Applicable for construction of FTTX and re-construction of old areas. Applicable for extension of metropolitan area network.
Applicable for express-way and private network.Applicable for new trunk line construction and online extension.

Characteristics

• Small overall diameter, lightweight, moderate hardness, suitable for air-blow installation.
• Non- metallic structure, no need for grounding.



Specification
Item
Specification
Fiber type
G.652D
Attenuation

@ 1310 nm
≤0.36 dB/km
@ 1383 nm
≤0.35 dB/km
@ 1550 nm
≤0.22 dB/km
@ 1625 nm
≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)
≤1260 nm
Zero Dispersion Wavelength(nm)
1300 ~ 1324 nm
Zero Dispersion Slope
≤0.092 ps/(nm2.km)
Chromatic Dispersion

@ 1288 ~ 1339 nm
≤3.5 ps/(nm. km)
@ 1550 nm
≤18 ps/(nm. km)
@ 1625 nm
≤22 ps/(nm. km)
PMDQ
≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm
9.2±0.4 um
Core Concentricity Error
≤0.6 um
Cladding Diameter
125.0±0.7 um
Cladding Non-circularity
≤1.0%
Coating Diameter
245±10 um
Proof Test
100 kpsi (=0.69 Gpa), 1%



Packing & Delivery
Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH 1



Company Profile
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 13 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe,Mideast and Southeast Asia,Africa.



Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH 2



Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes for FTTH 3
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included),however, a few of days would be taken for special ones.
Q2: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are
areal and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.

Q3: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ is 1KM.

Q4: What’s your delivery time?
A:Normally, our delivery time is 3-5 days after receiving deposit. Base on the quantity of the order.

Q5: Can your factory customize cables based on customer’s samples?
A:Yes, we can. OEM is welcomed

Q6: What is your manner of packing?
A:The color box and cartons,It can as the customers'requests.
