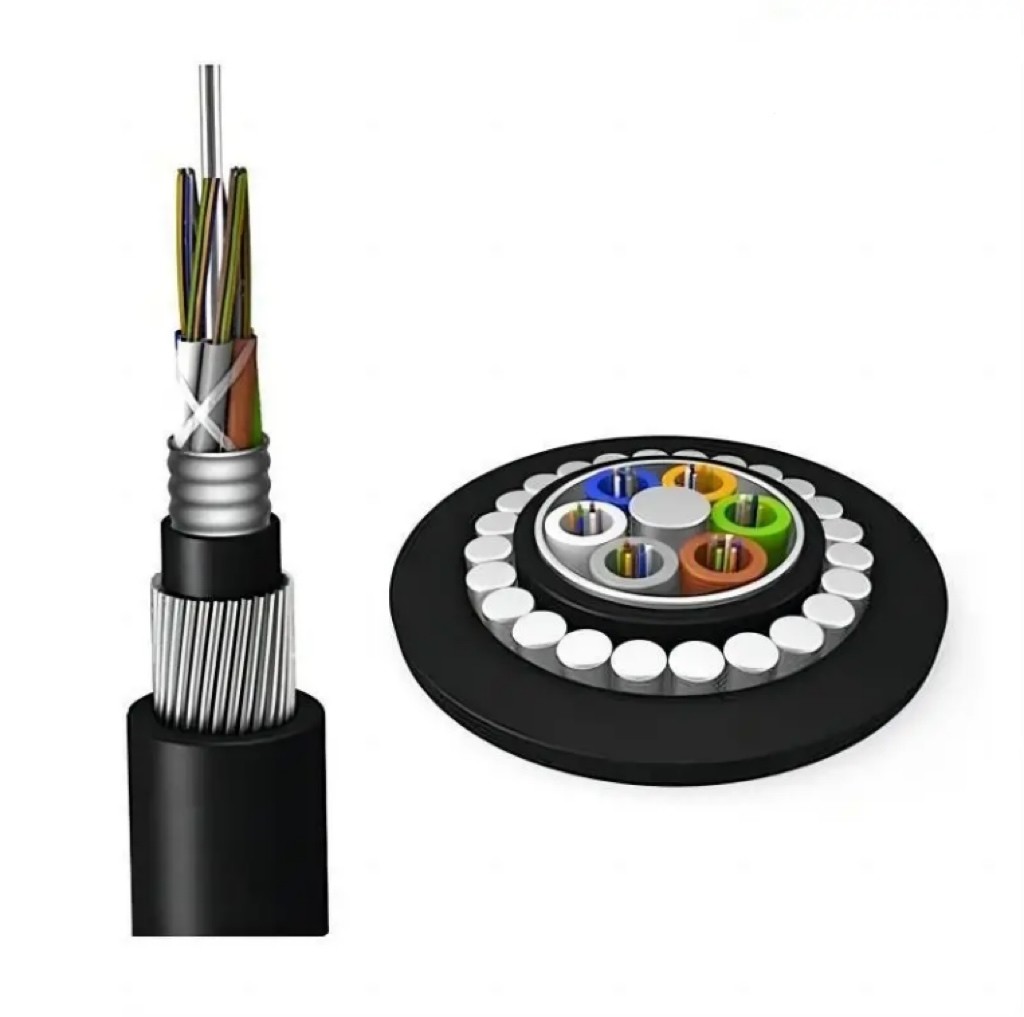

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater
GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater
GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater
Contact Now

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater

Minimum Order Quantity : 1km Price : Inquiry for price
Packaging Details : wooden drum Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC SDOC Model Number: GYTA33

Detail Information
Fiber Type: G652D/G657A1 Color: Black Or As Your Required
Jacket: PE,MDPE, HDPE Fiber Count: 4 96 144 288 Cores
Product Name: Stranded Loose Tube Armored Cable Length: 2km Or Customized Length
Installation: Aerial & Duct Oem: Acceptable
Application: Telecommunication Name: Underground Directly Buried Armored Cable
Cable Type: Double Jacket Double Armored Armored: Aluminun Tape+Steel Wire
Cable Type: Single-mode Laying Mode: Duct Aerial
Amore: Steel Tape/aluminum Tape Number Of Conductors: 48
Wave Length: 1310nm/1550nm Number Of Fiber: 4-288 Cores
Model Numer: MGTSV Outsheath: PE
Installation Method: Direct Burial Certifications: ISO9001, UL, RoHS
Cable Diameter: 10.5mm
Highlight:

GYTA33 Fiber Optic Cable

,

HDPE Sheath Fiber Optic Cable

,

Steel Wires Armored Fiber Optic Cable

Product Description

Submarine Optical Fiber Cable GYTA33 GYFTY33



The GYFTY33 waterproof optical fiber cable adopts an improved design derived from the standard GYFTY cable configuration, featuring upgraded water resistance and crush protection capabilities. Its construction process involves:

  1. 1.Longitudinal application of aluminum tape for moisture barrier
  2. 2.Extrusion of polyethylene (PE) inner protective layer
  3. 3.Longitudinal reinforcement with either single or dual layers of fine steel wire armor
  4. 4.Final extrusion of polyethylene outer jacket to complete the cable assembly

This multi-layer architecture significantly enhances mechanical durability and waterproof performance compared to conventional designs.

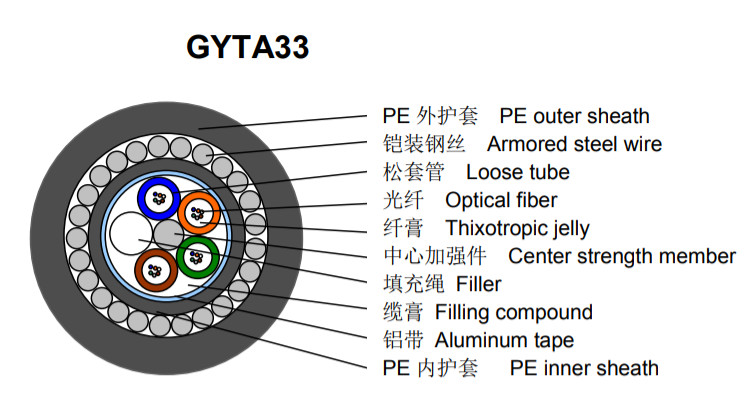

Product Construction

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 0

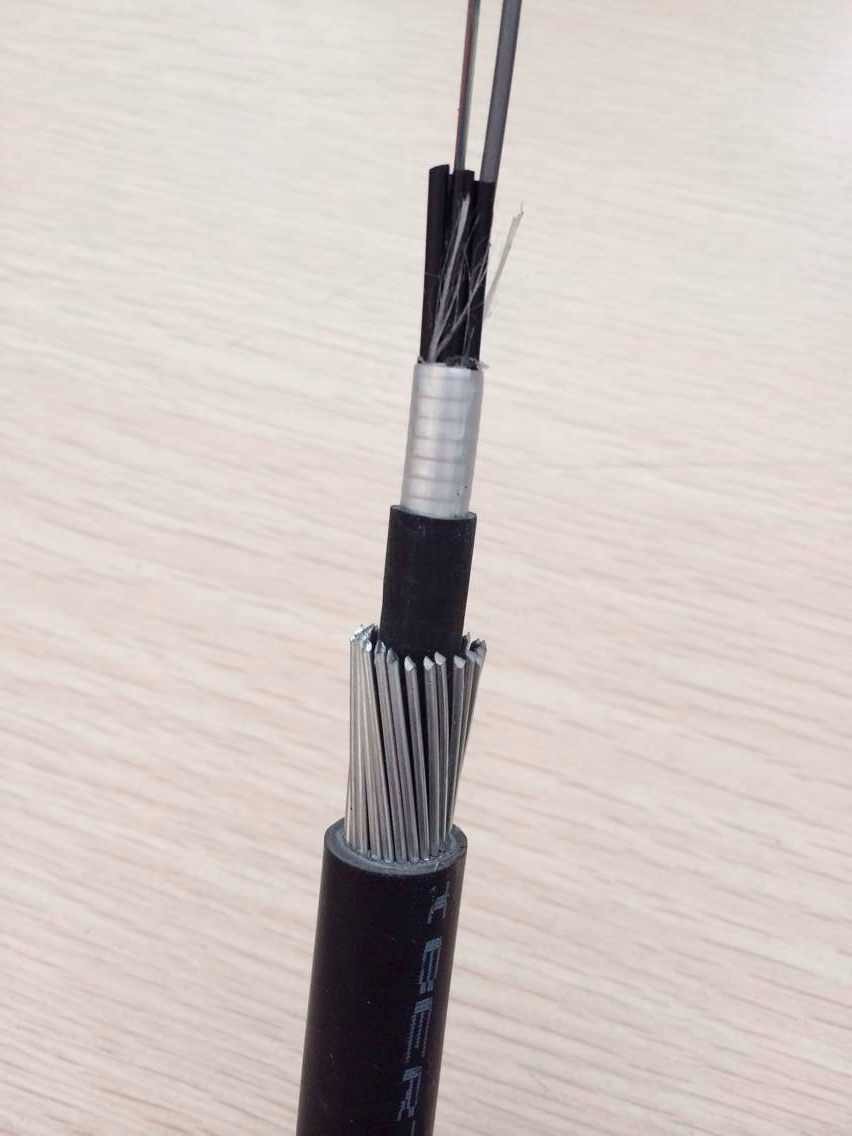

Cable Picture

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 1

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 2

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 3



Application

Suitable for directly buired laying or Underwater method

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 4



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

item
value
Model Number
GYTA33
Type
Outdoor Fiber Optic Cable
Place of Origin
Guangdong,China
Brand Name
jiqian
Number of Conductors
≥ 10
Fiber count
2-288 Cores
Fiber Type
G652D Single mode or as your request
Central strength member
steel wire
Armoured
Al tape
Outer Sheath
PE
Cable Structure
Multi-Loose Tube Aluminum Tape armor
Color
Black or as your need
Application
Direct burial, underground,sea
Certification
CE/ROHS/ISO9001 /ANATEL
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information



Packing

1/2/3/4km or customized length export wooden drum

professional, environmentally friendly, convenient and efficient packaging services will be provided.

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 5

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 6

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 7

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5. OEM/ODM is available.

6. Professional manufacturer. Welcome to visit our factory!

GYTA33 Fiber Optic Cable HDPE Sheath Steel Wires Armored Subsea Underwater 8



We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!
Contact me at +86 18122384553 to get free sample.
