Product Description
Manufactory Supply 36 core GYTA53 Single mode fiber optic cable outdoor fibre cable

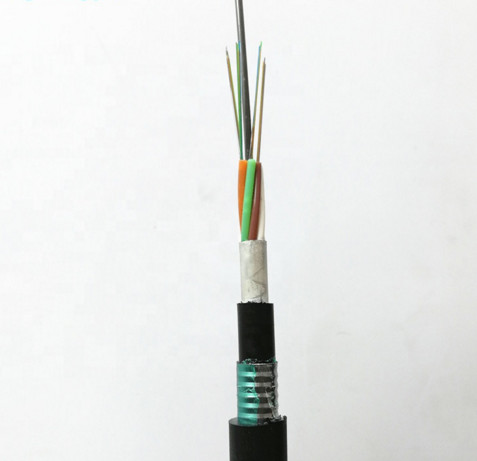

Aluminum Armored Directly Buired Fiber Optic Cable GYTA53
GYTA53 Underground Direct Burial Fiber Optic Cable is engineered to support high-capacity fiber transmission while offering exceptional adaptability for rigorous installation environments, particularly in direct burial applications. Featuring configurations of up to 288 fibers and utilizing S-Z stranded construction, this cable ensures reliable performance in challenging deployment scenarios.
Features
Optimized Mechanical and Thermal Performance
The cable demonstrates superior structural integrity across diverse environmental conditions.
Enhanced Loose Tube Construction
Manufactured from intrinsically water-resistant polymer materials, the loose tubes maintain exceptional tensile durability. A viscous gel compound injected within each tube safeguards fiber integrity against moisture infiltration.
Axial Stability Design
Precision-engineered layered architecture minimizes longitudinal deformation risks through compression-resistant structural optimization.
Advanced Environmental Protection
Ultraviolet-resistant formulated polyethylene sheath provides dual protective functions against solar degradation and liquid permeation.

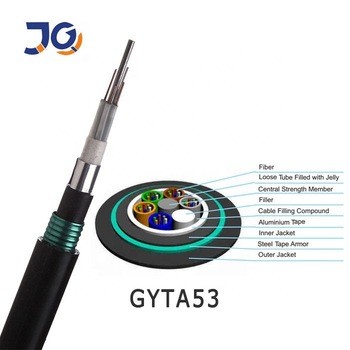

Reinforced Structural Components
- 1.Central steel wire reinforcement system
- 2.Hydrophobic filling compound in buffer tubes
- 3.Comprehensive interstitial filling throughout cable core
- 4.Laminated aluminum-polyethylene (APL) moisture barrier
Application
Suitable for directly buired laying method
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
GYTA53( Aluminium polyethylene laminate)
|
Fiber
Count
|
Nominal
Diameter
(mm)
|
Nominal
Weight
(kg/km)
|
Allowable Tensile Load
(N)
|
Allowable Crush Resistance
(N/100mm)
|
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|
2~30
|
13.2
|
162
|
3000
|
1000
|
3000
|
1000
|
|
32~48
|
13.8
|
175
|
3000
|
1000
|
3000
|
1000
|
|
50~72
|
14.6
|
205
|
3000
|
1000
|
3000
|
1000
|
|
74~96
|
16.0
|
230
|
3000
|
1000
|
3000
|
1000
|
|
98~144
|
17.6
|
285
|
3000
|
1000
|
3000
|
1000
|
|
＞144
|
Avaliable upon customer's request
|
| Cable type |
Drum |
|
Height
(mm)
|
Width
(mm)
|
Inner diameter
(mm)
|
Length
(km)
|
Drum type |
| GYTA53-12 |
950 |
760 |
400 |
2 |
Wooden drum |
| GYTA53-24 |
950 |
760 |
400 |
2 |
Wooden drum |
| GYTA53-48 |
1100 |
760 |
500 |
2 |
Wooden drum |
| GYTA53-96 |
1200 |
760 |
500 |
2 |
Wooden drum |

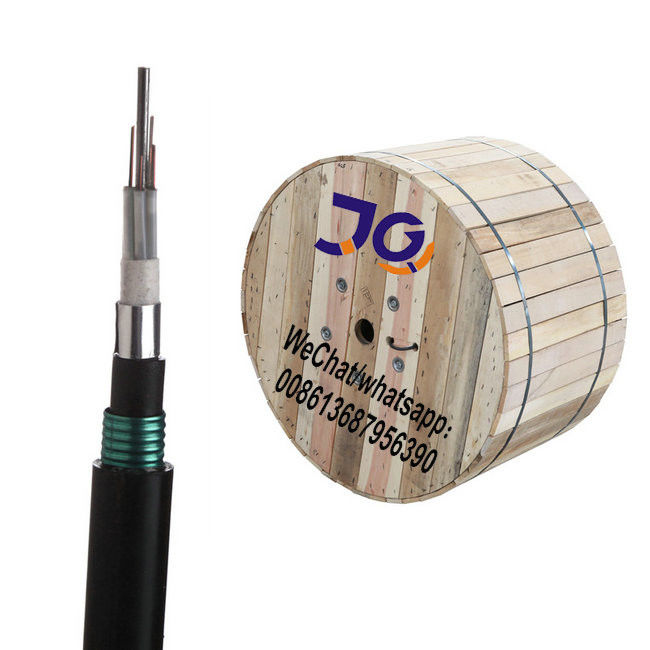

Packing
1/2/3/4km or customized length export wooden drum
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
