GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

Contact Now

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

Minimum Order Quantity :	1km	Packaging Details :	2km/Wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, Western Union, T/T
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou China	Brand Name:	JQ/OEM/Customize
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	GJFJV

Detail Information
Name:	Indoor Fiber Optic Cable	Outer Sheath:	PVC,PE,LSZH
Cable Type:	Tight Buffer Fiber With Aramid Yarn	Place Of Origin:	Guangzhou China
Strength Material:	Aramid Yarn	Color:	Orange,Yellow,Blue
Core:	2-48fiber	Fiber Type:	Multimode
Packing:	Wooden Drum	Inner Jacket Color:	Orange
Aramid Yarn:	12 Standard Yarn	Jaket:	PVC
Standard:	YD/T1258.3 IEC60794-2-10/11	Connection Structure:	LC,Sc,FC,St
Oem:	Available	Mode:	Single Mode Or Multi Mode
Jacket Color:	Black, White	Material:	PVC/LSZH,Aramid Yarn
Temperature:	-20 To 60°C	Ferrule Type:	Upc, APC
Connector Type:	SC/LC/FC/ST/MPO	Fiber Counts:	1~12 Fibers
Bend Radius:	10 Times Cable Diameter	Feature:	Dielectric
Highlight:	LSZH Indoor Fiber Optic Cable , Multi Mode Indoor Fiber Optic Cable , 24 Core Indoor Fiber Optic Cable

Product Description

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV

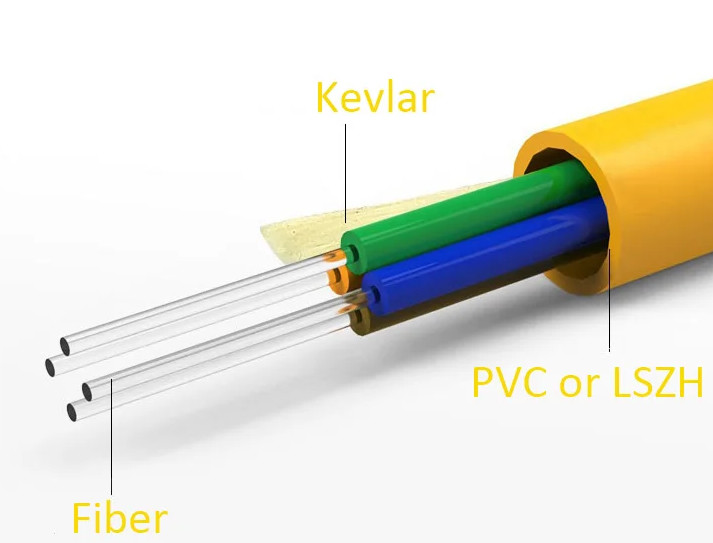

Multi-purpose distribution cables use several 900μm flame-retardant tight-buffered fibers as the optical communication medium. These fibers are wrapped with aramid yarn for strength and then coated with a PVC or LSZH (Low Smoke, Zero Halogen, Flame-Retardant) sheath. The fibers are sheathed with an appropriate buffer material, and can be produced in diameters of 600μm or 900μm. The use of high-quality fibers, specialized production equipment, and precise tools ensures excellent product performance.

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core 0

Characteristics

The cable offers excellent mechanical and environmental properties. Its flame-retardant characteristics meet relevant standards, and the jacket's mechanical properties also comply with industry requirements. It is soft, flexible, easy to install and splice, and supports high data transmission capacity. The design meets various market and client needs.

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHz-km

2200MHz-km

@1300nm

21000MHz-km

2600MHz-km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

Cable diameter

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter(mm)	4.1±0.25	4.8±0.25	5.1±0.25	6.2±0.25	6.5±0.25	6.8±0.25
Cable Weight(kg/km)	12	20	24	29	32	35
Tight Buffer Fiber Diameter	900±50μm

Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable Count	Outside Diameter	Tight buffer Diameter	Weight	Minimum allowable Tensile Strength(N)		Minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
2	3	0.9	15	600	200	1000	200	20D	10D	-40+60
4	5	0.9	22	600	200	1000	200	20D	10D	-40+60
6	5	0.9	23	600	200	1000	200	20D	10D	-40+60
8	5.5	0.9	28	600	200	1000	200	20D	10D	-40+60
12	6	0.9	38	600	200	1000	200	20D	10D	-40+60
16	7.2	0.9	42	600	200	1000	200	20D	10D	-40+60
24	8.3	0.9	58	600	200	1000	200	20D	10D	-40+60
48	10	0.9	96	600	200	1000	200	20D	10D	-40+60

Application

Used for pigtails and patch cords.
Serves as interconnect lines for equipment.
Suitable for both indoor and outdoor cabling, especially as a distribution cable.
Used for optical connections in communication rooms and distribution frames.

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core 1

Product Detail

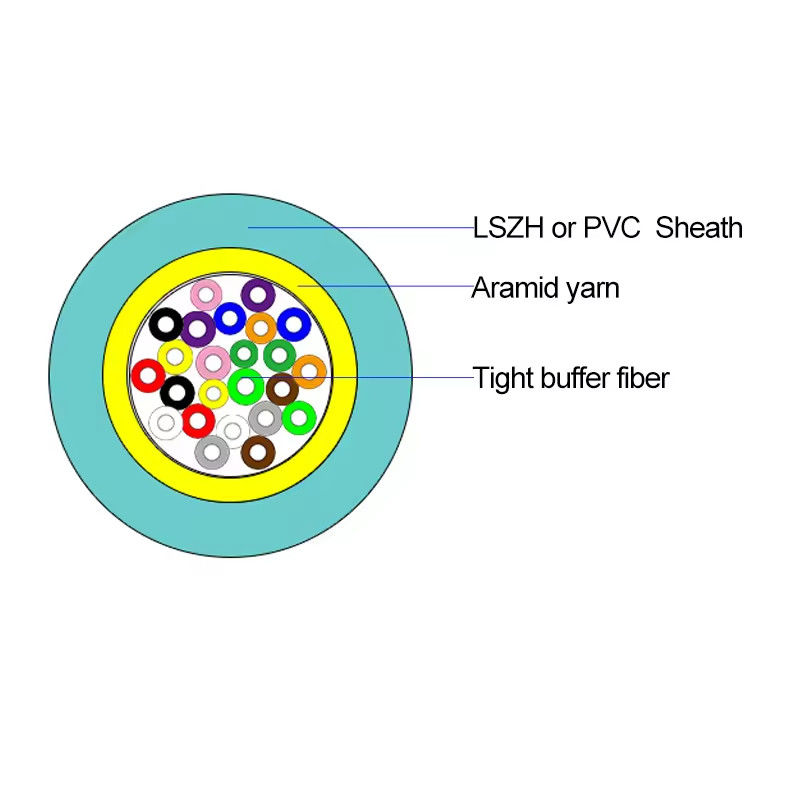

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core 2

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core 4

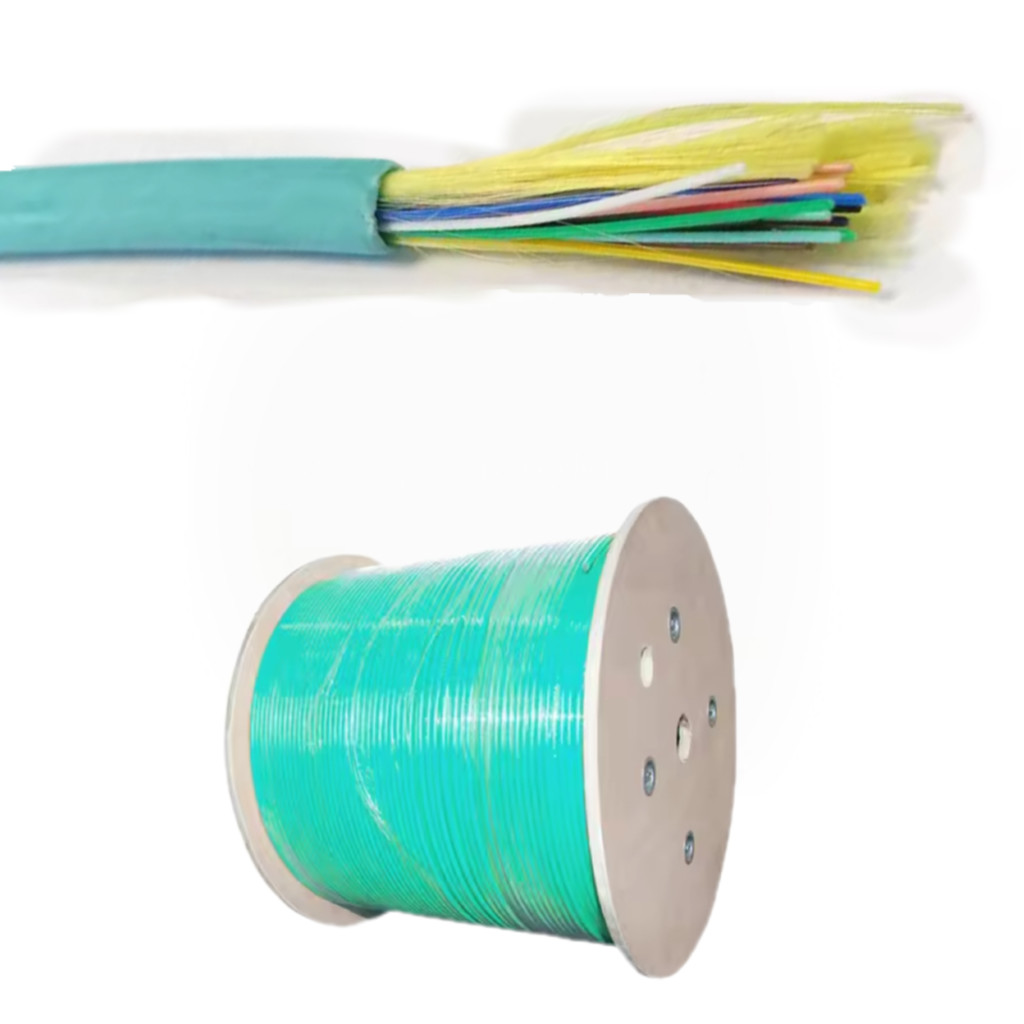

Packing

2km or customized length export wooden drum

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core 5

FAQ

Why choose us?

Professional Manufacturer: Low MOQ and free samples available.
Quality Assurance: Consistently high quality.
Customer Solutions: Fast response times.
Competitive Pricing: Cost-effective, bringing more benefits to customers.

Do you accept OEM/ODM?
Yes, we welcome OEM and ODM. Any ideas you have are welcome.
Can you print our logo?
Yes, we can print your logo on both the products and packaging.
What is the shipping method?
We offer various shipping options, including delivery, ocean transport, land transport, and air transport.
What payment methods do you accept?
We accept LC, T/T, Western Union, and Alipay.
What is your delivery time?
Typically 3-7 working days, depending on the order quantity. Rest assured, we’ll process your order as quickly as possible after payment.
