GYTA53 Underground Burial Outdoor Fiber Optic Cable Aluminium Armored 48 96 Core

Minimum Order Quantity :	1KM	Packaging Details :	wooden drum
Delivery Time :	3-5 days, it depends on your quantity	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month

Place of Origin:	Guangdong, China	Brand Name:	Jiqian/Customize
Certification:	CE/ISO9001/FCC	Model Number:	GYTA53

Detail Information
Jacket:	PE,MDPE	Color:	Black
Fiber Type:	G652D/G657A1/G657A2	Fiber Count:	2-144 Cores
Life Time:	More Than 30 Years	Length:	1km 2km 3km 4km
OEM:	Yes	Cable Type:	Single-mode
Outer Jacket:	PE	Packing:	2km/Wooden Durm
Package:	2km/3km/5km Per Roll	Armored Fiber Cable:	Yes,double Sheath Double Armor
Number Of Fiber:	4-576	Factory:	Yes
Bend Radius:	20x Cable Diameter	Manufacturer:	Yes
Jacket Color:	Black	Lift Time:	More Than 25years
Outsheath:	PE	Jacket Metarial:	LSZH (low Smoke Zero Halogen)/HDPE
Cable Structure:	Double Jacket/Double Aluminium Armored	Fiber Brand:	YOFC/Fiberhome/Fujikura/Corning

Product Description

Factory Price Underground Duct Direct Buried GYTA53 Armored Outdoor Fiber Optic Cable

GYTA53 Underground Burial Outdoor Fiber Optic Cable Aluminium Armored 48 96 Core 0

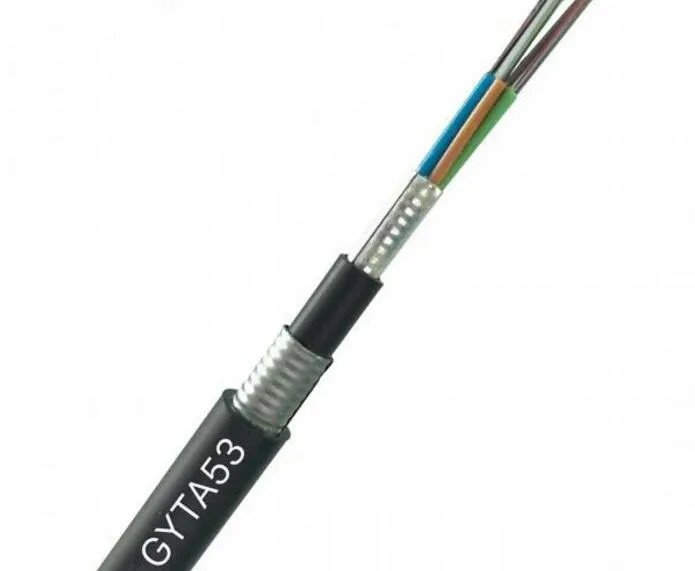

The GYTA53 Underground Direct Buried Fiber Optic Cable is engineered for high fiber counts, offering flexibility and versatility for demanding installations, including direct burial. It supports up to 144 cores.

GYTA53 Underground Burial Outdoor Fiber Optic Cable Aluminium Armored 48 96 Core 1

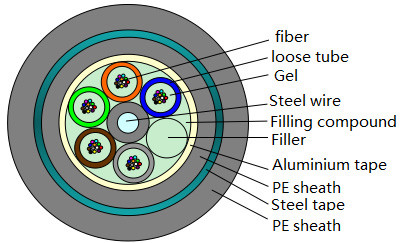

The GYTA53 fiber optic cable features 2 to 288 fibers, with a central steel strength member. It has a jelly-filled, loose tube construction, with PP filler if needed. The cable includes water-blocking jelly, copolymer-coated aluminum tape, a PE inner sheath, and a copolymer-coated steel tape covering. The outer sheath is made of PE, and the fibers are G652D Single Mode. Detailed specifications are available upon request.


Product Feature

Gel-filled loose tube construction for enhanced fiber protection.
Double jacket and double armored for added durability.
(GYTA53) offers rodent protection and is suitable for direct burial.
UV and moisture-resistant design for long-term reliability.

Technical Parameters:

			Item

			Properties and Requirements

			Fiber Count

			2-288

			Min Bending Radius

			Dynamic

			25✖diameter of cable

			Static

			12.5✖diameter of cable

			Temperature Range

			40°C~+60°C

			Nominal Weight(kg/km)

			Depends on Different Specifications

			Laying method

			Direct Buried

Data Sheet

			Fiber count

			Loose tube diameter

			(mm)

			Nominal Thickness of outer jacket

			(mm)

			Cable diameter/

			Height

			(mm)

			Cable weight

			(kg/km)

			12core

			1.9±0.1

			1.6

			12.0±0.2

			145

			36core

			1.9±0.1

			1.6

			13.2±0.2

			155

			48core

			1.9±0.1

			1.6

			13.2±0.2

			155

Packaging Details
Supplied on wooden reels, available in 1000m, 2000m, or 3000m lengths, with custom lengths upon request.
Inner packed in fumigated wooden drums, outer covered with polyethylene sheet, and sealed with strong wooden battens.
Delivery

For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

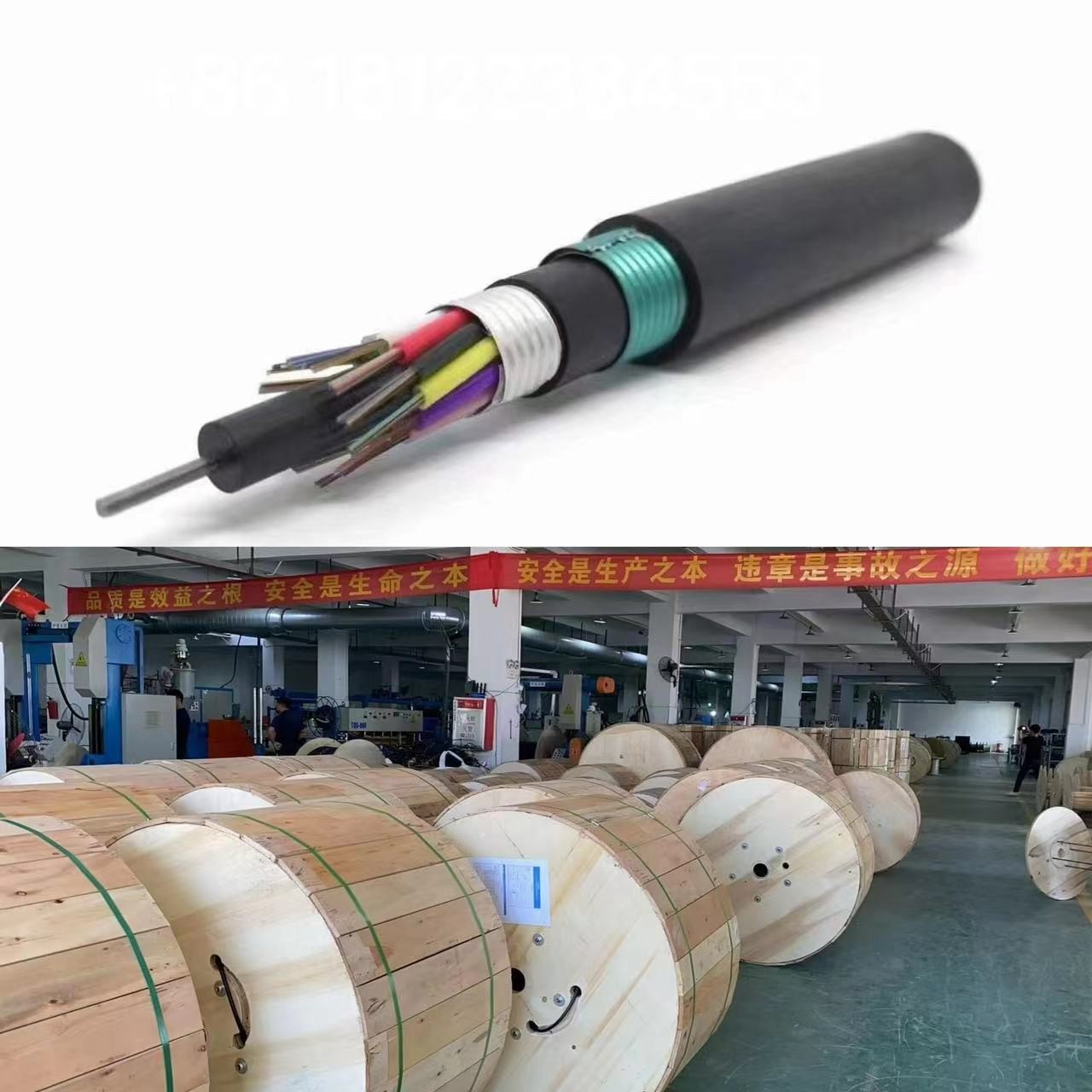

Facory Picture
We are fiber cable manufacturer.We have a factory.
We have rich experience in foreign trade.
Give us a chance to serve you, saving you time and money.

Certificate
