12 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable

1 piece
MOQ
12 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Optical Overhead Ground Cable
Model Number: OPGW
Place Of Origin: Guangdong, China
Application: Telecommunications
Oem: Available
Brand Name: JQ/Haiso/OEM
Operating Temperature: -40℃- +70℃
Warranty: 2years
Package: Drum With Surdace
Number /diameter Of AC Wire: 2.4-3.5 Mm
Diameter Of Cable: 10.5-15 Mm
Installation: Self-supporting Aerial
Layer: AS, AA
Conductor Material: Aluminum Clad Steel
Strength Member: Steel Wire
Armoring Material: Galvanized Steel Wires
Fiber Color: Blue,Orange,Brown,Aqua,Grey
Number Of Conduct: ≥ 10
Cable Type: Loose Tube
Core: 2-288core (Customized)
Item: Overhead Line Fittings
Fiber Mode: Single Mode Or Multi Mode
Material: AA/ACS
Highlight:

Aerial Fiber Optic Cable

,

72 Core OPGW Cable

,

Overhead Optical Cable
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/FCC
Model Number: OPGW
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

Product Description:

12 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable 0

  1. Introduction to 24, 36, 48, 96, 144 Core G652D OPGW Fiber Optic Cable
    OPGW (Optical Fiber Composite Overhead Ground Wire) combines optical fibers with overhead ground wire, allowing for the transmission of audio, video, and data while maintaining the electrical and mechanical properties of the ground wire.

  2. Main Features of 24, 36, 48, 96, 144 Core G652D OPGW Fiber Optic Cable
    a. Compact diameter, lightweight, and low short-circuit current capacity.
    b. Armored metal outer layer resists high voltage galvanic corrosion and degradation.
    c. Easy maintenance and effective solution for line crossing issues, with mechanical properties suited to line requirements.

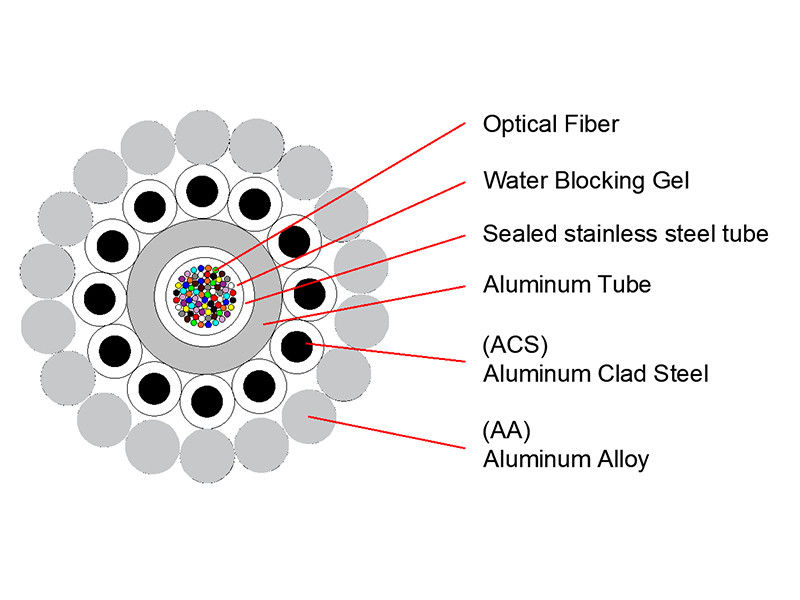

  3. Structure of 24, 36, 48, 96, 144 Core G652D OPGW Fiber Optic Cable
    a. Central loose tube design: Ideal for cables with cross-sectional areas below 80mm².
    b. Loose layer stranded design: Suitable for cables with larger cross-sectional areas.

Specifications:

Cable model OPGW-60 OPGW-70 OPGW-90 OPGW-110 OPGW-130
Number /diameter(mm) of stainless steel tube 1/3.5 2/2.4 2/2.6 2/2.8 1/3.0
Number /diameter of AL wire(mm) 0/3.5 12/2.4 12/2.6 12/2.8 12/3.0
Number /diameter of ACS wire(mm) 6/3.5 5/2.4 5/2.6 5/2.8 6/3.0
Diameter of Cable (mm) 10.5 12 13 14 15
RTS(KN) 75 45 53 64 80
Cable weight (kg/km) 415 320 374 432 527
DC resistance(200C W/km) 1.36 0.524 0.448 0.386 0.327
Modulus of elasticity(Gpa) 162 96.1 95.9 95.6 97.8
coefficient of Linear thermal 12.6 17.8 17.8 17.9 17.2
expansion(1/℃×10-6)
Short circuit capacity (kA²s) 24 57.3 78.9 105.8 150.4
Max. operation temperature (℃) 200 200 200 200 200
Max. fiber count 48 32 48 52 30



Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located at 2nd Floor, Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong, China. The company is a large, high-tech joint-stock enterprise focused on research, development, production, and sales. It specializes in manufacturing a wide range of fiber optic cables, with core counts ranging from 2 to 288.

With a commitment to "integrity, speed, flexibility, efficiency, and innovation," the company strives for excellence, valuing customer satisfaction as the key measure of its success. Jiqian Fiber Optic Cable promises to offer high-quality products, competitive pricing, and exceptional service to support the growth of its partners.

We warmly welcome customers worldwide to visit our factory and establish long-term partnerships.

12 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable 112 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable 2

WHY CHOOSE US:

12 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable 3



Certification:

12 24 36 48 72 Core OPGW Cable Aerial Fiber Optic Cable Overhead Optical Cable 4

FAQ:

  1. Who are we?
    We are based in Guangdong, China, and have been operating since 2017. Our products are mainly sold to Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of approximately 11-50 employees.

  2. How do we ensure quality?

  • Pre-production samples are provided before mass production.

  • Final inspection is conducted before shipment.

  1. What do we offer?

  • Fiber Optic Cables

  • FTTH Drop Cables

  • Communication Cables

  • Outdoor/Indoor Fiber Cables

  1. What services do we provide?

  • Delivery Terms: FOB, EXW

  • Payment Currencies: USD, CNY

  • Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash

  • Languages Spoken: English, Chinese

  1. MOQ (Minimum Order Quantity)?

  • MOQ: 1KM

  1. Can I get a sample?

  • Yes, we provide free samples, and you only need to cover the express freight costs.

  1. Do we accept OEM or ODM?

  • Yes, as a manufacturer with our own engineering department, we can accommodate OEM and ODM requests based on your requirements.

  1. What is the delivery time?

  • Delivery time typically ranges from 3 to 7 days after order confirmation, depending on the order quantity.
