0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core
0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core
0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core 0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core 0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core 0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core
Contact Now

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core

Minimum Order Quantity : 1KM Packaging Details : Wooden Drum
Delivery Time : 5-8 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 60000KM/month
Place of Origin: China Brand Name: Jiqian/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GJFJV

Detail Information
Place Of Origin: Guangzhou China Brand Name: Jiqian/Customize
Model Number: GJFJV Number Of Fiber: 1/4/12
Sheath/Jacket: LSZH/PVC MOQ: 1KM
Application: Telecommunication Port: Guangzhou/Shenzhen
Certification: ISO9001 ROHS CE-EMC FCC SDOC Manufacturer: YES
Inspection: Dimension, Color, OTDR Data Standards: IEC 60794-2-10/ TIA/EIA-568-C.3
Fiber Core: 2Cores Crush Resistance: 1000N/100mm
Central Strength Member: Aramid Yarn Sheath: LSZH/PVC
Jacket Color: Aqua/Yellow/Orange Reinforcement: FRP/Kavlar Yarn
Diameter: 2.2(outer/inner) Core: 4 Cores
Characteristics: Anti Corrosion, Anti Water Indoor Or Outdoor: Indoor Fiber Optic Cable
Temperature: -20--60ºC Cable Type: Single-mode/Multi Mode/MM/Duplex
Applications: Indoor/Outdoor Application

Product Description

12 Core Multimode Fiber Optic Cable – GJFJV Tight Buffer (Indoor Use)



Product Description:

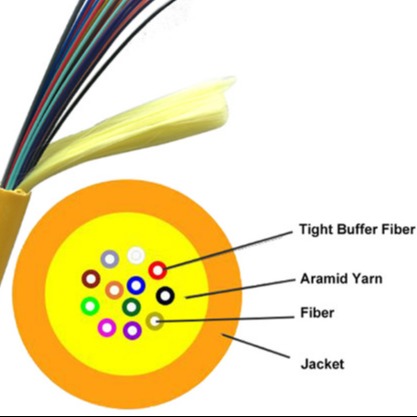

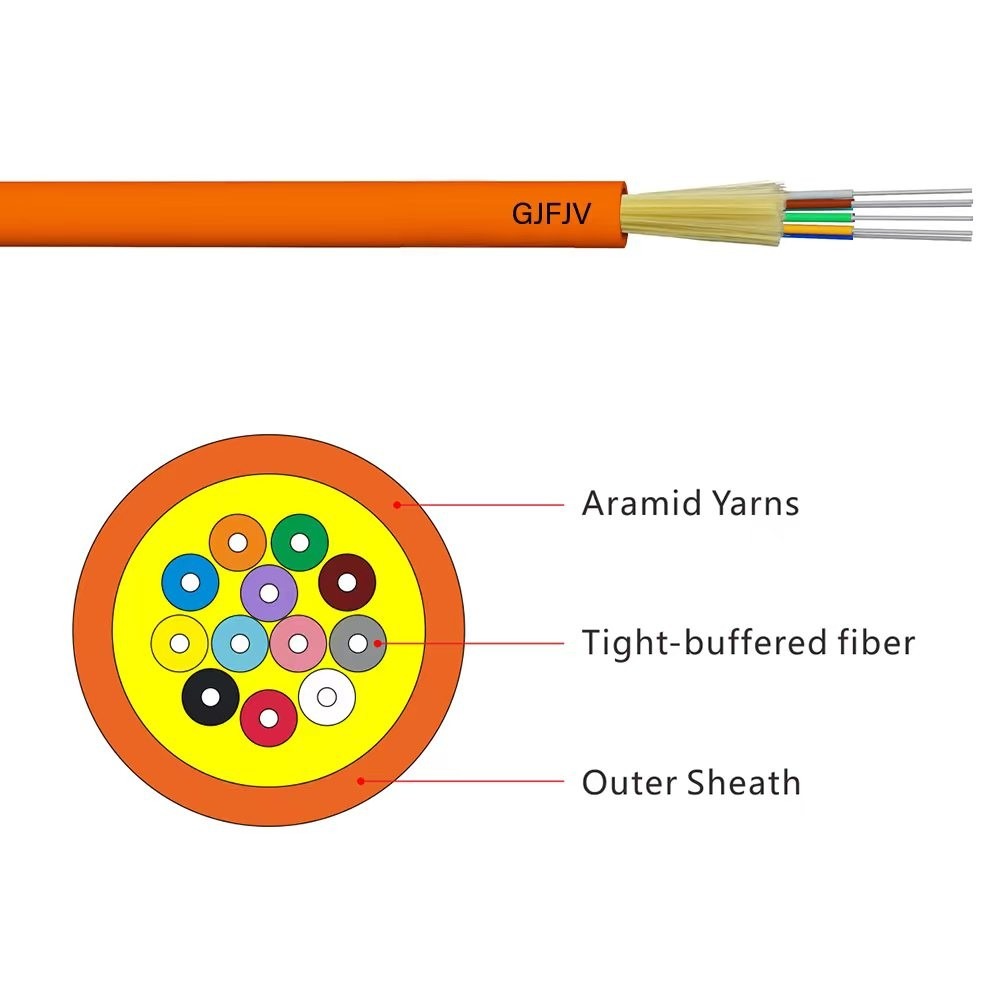

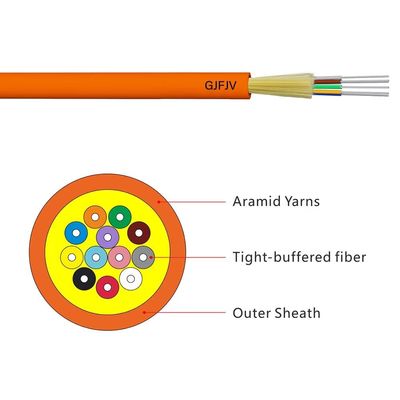

This multi-purpose indoor distribution cable features multiple 900μm (or 600μm) flame-retardant tight-buffered multimode fibers as the transmission medium. Each fiber is sheathed with a precision-applied buffer layer, reinforced with aramid yarn for strength, and jacketed in flame-retardant PVC or LSZH material (low smoke, zero halogen).

High-quality optical fiber, advanced manufacturing equipment, and precise tooling ensure excellent mechanical and transmission performance.

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core 0



Characteristics

  • Excellent mechanical and environmental performance
  • Flame-retardant properties comply with industry standards
  • Durable jacket meets all standard mechanical requirements
  • Soft, flexible, and easy to install and splice
  • Supports high-capacity data transmission
  • Adaptable to diverse market and customer needs



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight



 Minimum
allowable Tensile
Strength(N)

    Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60

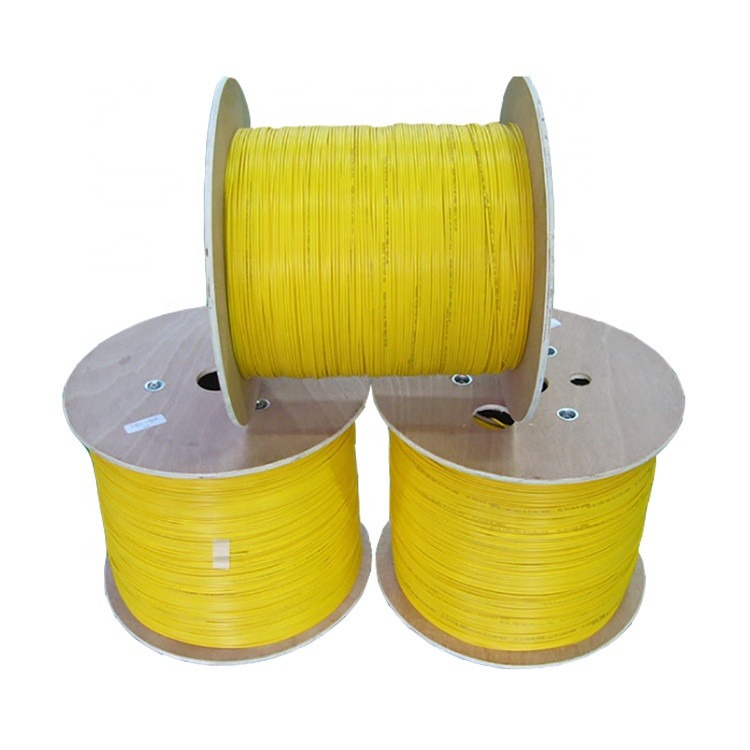

Product Detail

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core 1

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core 2



Application

  1. Suitable for pigtails and patch cords

  2. Ideal for equipment interconnections

  3. Used in indoor/outdoor cabling, especially as distribution cables

  4. Applied in optical rooms and distribution frames for network connections

FAQ

1. Why choose us?

  • Professional manufacturer with low MOQ and free samples

  • Reliable quality with fast response

  • Competitive pricing to maximize customer value

2. Do you accept OEM/ODM?
Yes, we welcome custom designs and specifications.

3. Can you print our logo?
Absolutely — we can print your logo on products and packaging.

4. What shipping methods do you offer?
We support all major methods: express, sea, land, and air freight.

5. What payment methods are accepted?
We accept LC, T/T, Western Union, Alipay, and more.

6. What’s your delivery time?
Normally 3–7 working days, depending on the order size. We’ll ship promptly after payment.
