GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core
GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core
GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core
Contact Now

GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: Jiqian/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GJFJV

Detail Information
Fiber Type: OM3 Oem: Available
Operating Temperature: -20~70°C Central Strength Member: Aramid Yarn/Kevlar Yarn
Material:: PVC/LSZH Fiber Count: 12core
Packing: Wooden Drum Type: EFONA005 Ⅰ
Core Number: 2core Bending Radius: 10 Times Cable Diameter
Sheath Material: LSZH Or PVC Length: Custom Length
Service: OEM ODM Accept Flame Retardant Grade: LSZH
Fiber Count: 2-144 Strength Material: Aramid Yarn
Tight Buffer: 0.9mm Feature: Indoor Installation,floor Installation
Stucture: 2.0/3.0mm Messenger: Steel Wire
Cores: 12 To 48 Cores

Product Description

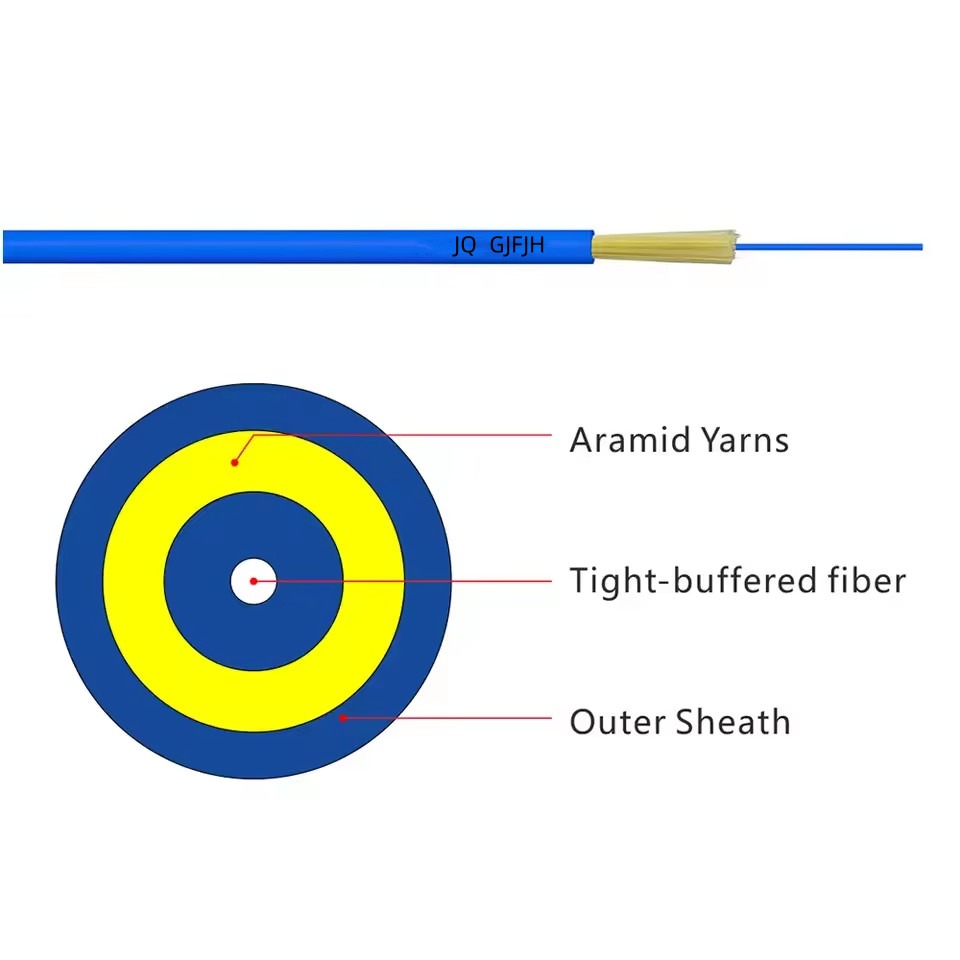

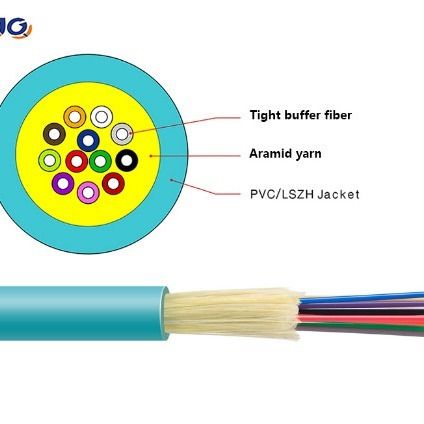

Indoor 12-Core Multimode Tight Buffer Fiber Optic Cable (GJFJH/GJFJV)

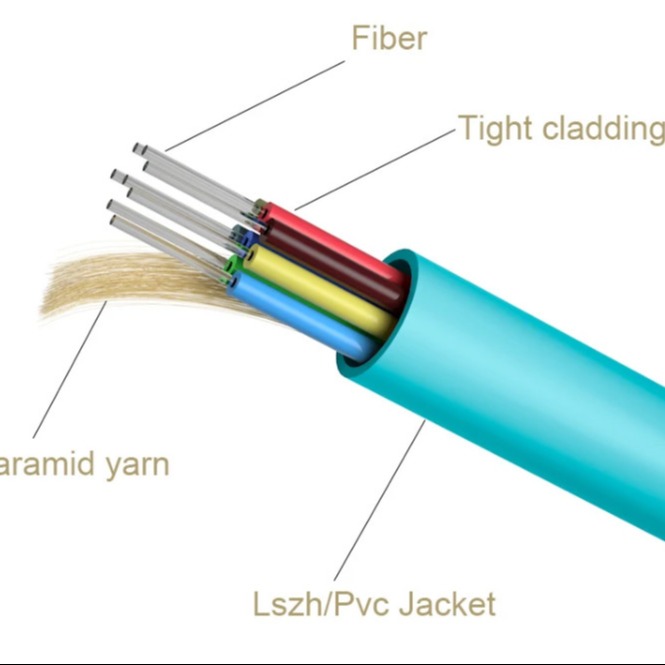

This GJFJV indoor distribution cable features multiple 900μm (or 600μm) flame-retardant tight-buffered multimode fibers as the transmission medium. Each fiber is reinforced with aramid yarn for strength and encased in a flame-retardant PVC or LSZH jacket (low smoke, zero halogen).

Manufactured using high-quality optical fiber and precise production equipment, the cable ensures reliable performance for indoor communication applications.

GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core 0

Features

  • Strong mechanical and environmental performance

  • Complies with flame-retardant standards

  • Durable structure meets all mechanical requirements

  • Soft, flexible, easy to splice, and supports high data transmission capacity


Technical Data
No. of cable
8
12
24
36
48
Fiber Model
OM3
Tight lines
Material
PVC/LSZH
Thickness(±0.03)mm
0.32
Diameter(±0.06)mm
0.9
Center Strength Member
Material
FRP
Diameter(±0.1)mm
—
—
—
0.5
0.5
Strength Member
Material
Aramid Yarn
Inner Sheath
Material
PVC/LSZH
Diameter(±0.1)mm
—
—
—
0.8
0.8
Colour
Aqua
Outer Sheath
Material
PVC
Thickness(±0.1)mm
0.9
1.0
1.0
1.5
1.5
Colour
Aqua
Cable Diameter(±0.2)mm
5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km
31
41
60
238
235
Attenuation
850nm
dB/km
≤2.5
1300nm
≤0.7
Bandwidth
850nm
MHz.km
≥3500
1300nm
≥500
Allowable Tensile Strength
Short Term
N
660
660
660
1320
1320
Long Term
200
200
200
660
660
Allowable Crush Resistance
Short Term
N/100mm
1000
1000
1000
1500
1500
Long Term
200
200
200
300
300
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

COMPANY PROFILE
Guangzhou Jiqian Fiber Optical Cable Co., Ltd. is a high-tech joint-stock enterprise located in the Mingying West 2nd Road Industrial Zone, Xintang Town, Guangzhou, Guangdong. We integrate R&D, production, and sales, specializing in manufacturing fiber optic cables with specifications ranging from 2 to 288 cores.

FAQ

1. Are you a manufacturer?
Yes, we are a factory based in Guangzhou, China. You're welcome to visit us.

2. What is the minimum order quantity?
1 km. Trial orders for new projects are supported.

3. Can I get a sample?
Yes, we offer free samples; you only cover the shipping cost.

4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.

5. What is the delivery time?
Normally 3–7 working days, depending on the order quantity.

6. Do you offer customization and logo printing?
Yes, we provide OEM and ODM services. Feel free to contact us with your requirements.
