Home ProductsOutdoor Fiber Optic CableGYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket
GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket
GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket
GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket
Contact Now

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS/FCC Model Number: GYTS

Detail Information
Model Number: GYTS Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request Length: As Required
Color: Customized Cable Structure: Loose Tube/Armored/Non-armored
Central Strength Member: Steel Wire Armoured: Steel Tape
Package: Wooden Drum/Customized Oem: Available
Application: Aerial, In Duct Certification: CE RoHS ISO:9001
Design: Central Loose Tube Design Conductors: ≥10
Fiber Brand: YOFC Origin: Shandong, China
Warranty: 1 Year Fiber Model: G652D
Flame Retardant Grade: LSZH/FRPVC/PE Outer Sheath Material: MDPE / HDPE
Number Of Fiber: 8 Fiber Diameter: 9/125μm (Single-mode), 50/125μm Or 62.5/125μm (Multimode)
Sheath Material: LSZH,HDPE,PVC Cable Color: Black
Structure Section: GYTA53 Allowed To Pull: 600/1500
Highlight:

GYTS Outdoor Armored Fiber Optic Cable

,

Single Mode Armored Fiber Optic Cable

,

24 Core Outdoor Fiber Optic Cable

Product Description

Product Name: GYTS Fiber Optic Cable
Model No.: GYTS-24B1
Fiber Type: Single Mode G.652D
Structure: Steel Tape Armored (PSP)
Outer Diameter: Approx. 10.5mm
Sheath Material: Linear Low-Density Polyethylene (LLDPE)
Standard Package: 3km per drum

Key Performance Parameters:

  • Typical Insertion Loss: ≤ 0.30 dB

  • Return Loss: ≥ 50 dB

  • Reconnection Loss: ≤ 0.20 dB

  • Test Wavelengths: 1310nm & 1550nm

  • Operating Temperature Range: Standard industry grade

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 0

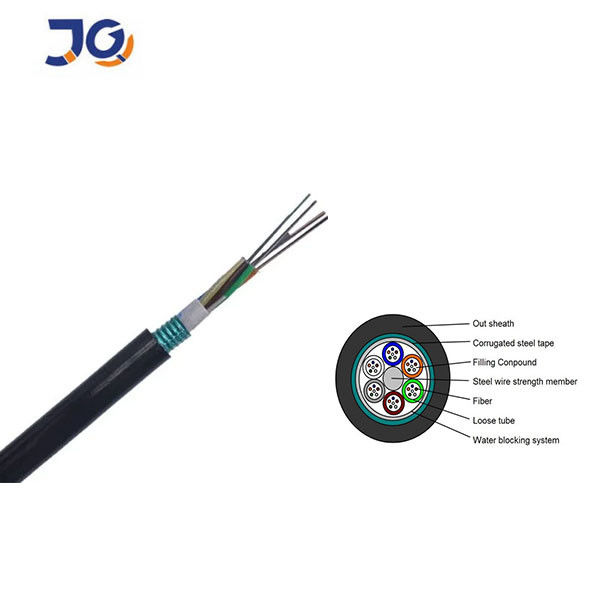

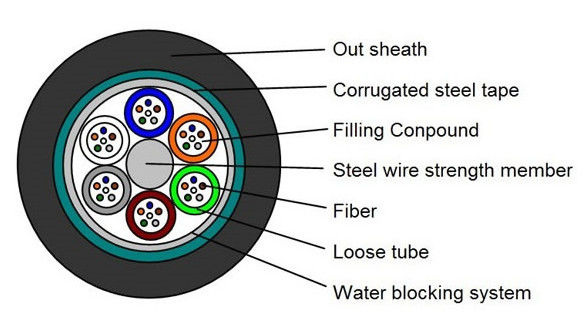

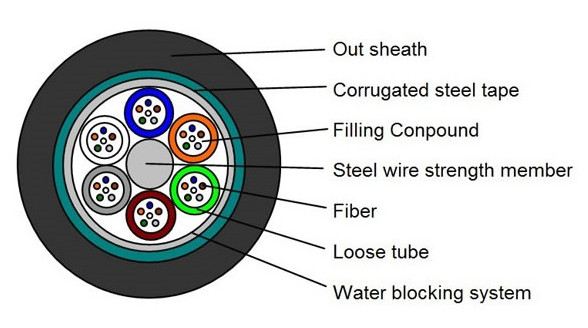

The GYTS fiber optic cable features centrally located optical fibers housed in a loose tube, with non-metallic fillers and tubes helically (SZ) stranded around a central metallic strength member. The core is fully filled with a water-blocking compound to ensure moisture resistance. A longitudinally applied steel tape armor (PSP) provides mechanical protection, and the entire structure is finished with a durable polyethylene (PE) outer sheath.

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 1

Key Features:

  • Excellent mechanical strength and stable performance across a wide temperature range.

  • Loose tube made of high-strength material with superior resistance to hydrolysis.

  • Optical fibers are protected by a specialized filling gel within the tube.

  • Compact structure is carefully engineered to prevent sheath shrinkage.

  • Offers strong crush resistance while maintaining good flexibility.

  • Outer sheath materials deliver outstanding protective performance.

  • Multiple design elements ensure reliable water-blocking capability:

    • Central metallic strength member for added support.

    • Tubes filled with moisture-resistant gel.

    • Entire core is filled to block water ingress.

    • PSP (double-sided coated steel tape) enhances the cable’s moisture barrier.

Application:

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 2

Specification:

item value
Model Number GYTS
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Central strength member steel wire
Loose tube Jelly filled
Loose Tube Material PBT
Armoured Steel tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Steel Tape armor
Color Black or as your need
Package Plywood Reel/customized
Installation aerial, in duct
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL
Structure and Technical Specifications:
Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located on the 2nd Floor of Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong Province, China.

We are a large-scale, high-tech joint-stock enterprise dedicated to the integration of R&D, manufacturing, and sales. Our company specializes in the production of fiber optic cables ranging from 2 to 288 cores, available in various models and specifications.

Guided by the corporate values of integrity, efficiency, flexibility, innovation, and speed, we are committed to excellence and customer satisfaction. We regard customer approval as the ultimate standard of our performance.

Jiqian Fiber Optic Cable is committed to offering high-quality products, competitive pricing, and premium service, and looks forward to building a prosperous future together with our clients.

We warmly welcome partners from around the world to visit our facility and establish long-term cooperation.

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 3GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 4

WHY CHOOSE US:

1.24hours one-to-one online services ensure efficient support.

2.Considerate customer reception from hotel booking to factory visiting.

3.Excellent care from order confirmation to product shipment.

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 5

Certification:

GYTS Outdoor Armored Fiber Optic Cable Single Mode 24 48 Core HDPE Jacket 6

FAQ

1. Who are we?
We are a fiber optic cable manufacturer located in Guangdong, China, established in 2017. Our products are primarily exported to Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). Our team consists of approximately 11–50 staff members.

2. How do we ensure product quality?

  • A pre-production sample is always provided before bulk production.

  • Each order undergoes strict final inspection before delivery.

3. What products do we offer?
We supply a wide range of products including:

  • Fiber Optic Cables

  • FTTH Drop Cables

  • Communication Cables

  • Indoor and Outdoor Fiber Cables

4. What services can we provide?

  • Delivery Terms: FOB, EXW

  • Payment Currencies: USD, CNY

  • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Languages Spoken: English, Chinese

5. What is the Minimum Order Quantity (MOQ)?

  • Our MOQ is 1 kilometer.

6. Can I request a sample?

  • Yes, we offer free samples, with the buyer covering the express shipping cost.

7. Do you accept OEM or ODM orders?

  • Absolutely. As a manufacturer with our own engineering team, we can customize products based on your requirements.

8. What is your delivery time?

  • Normally, orders are shipped within 3–7 working days after confirmation, depending on the quantity.

We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
