Product Description
ODM Manufactory Supply Indoor Multi-Mode Cable (6/12/24 Core GJFJV)
This multi-purpose distribution cable utilizes 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with aramid yarn for strength and sheathed in PVC or LSZH (low-smoke, zero-halogen) material. The tight-buffered design, available in Φ600μm or Φ900μm diameters, ensures durability and performance. High-quality fibers, precision manufacturing equipment, and optimized tooling guarantee reliable product performance.
Features:
Excellent mechanical and environmental performance
Compliant with flame-retardant standards
Sturdy yet flexible jacket for easy installation and splicing
High-capacity data transmission
Customizable to meet diverse market and client needs
Optical Characteristics
|
|
|
G.652D
|
50/125um
|
625/125μm
|
|
Attenuation
|
@850nm
|
|
≤3.0dB/km
|
≤3.0dB/km
|
|
(+20°C)
|
@1300nm
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|
|
@1310nm
|
≤0.36dB/km
|
|
|
|
|
@1550nm
|
≤0.22dB/km
|
|
|
|
Bandwidth(ClassA)
|
@850nm
|
|
2500MHz-km
|
2200MHz-km
|
|
|
@1300nm
|
|
21000MHz-km
|
2600MHz-km
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
Cable Cut-off Wavelength λcc
|
|
≤1260nm
|
|
Cable diameter
| |
MPC-02 |
MPC-04 |
MPC-06 |
MPC-08 |
MPC-10 |
MPC-12 |
| Cable Diameter(mm) |
4.1±0.25 |
4.8±0.25 |
5.1±0.25 |
6.2±0.25 |
6.5±0.25 |
6.8±0.25 |
| Cable Weight(kg/km) |
12 |
20 |
24 |
29 |
32 |
35 |
| Tight Buffer Fiber Diameter |
900±50μm |
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV |
Cable
Count |
Outside
Diameter |
Tight
buffer
Diameter |
Weight
|
Minimum
allowable Tensile
Strength(N) |
Minimum allowable
Crush Load
(N/100mm)
|
Minimum
Bending
Radius (MM)
|
Storage
temperature |
| (MM) |
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
| 2 |
3 |
0.9 |
15 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
|
4
|
5 |
0.9 |
22 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 6 |
5 |
0.9 |
23 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 8 |
5.5 |
0.9 |
28 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 12 |
6 |
0.9 |
38 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 16 |
7.2 |
0.9 |
42 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 24 |
8.3 |
0.9 |
58 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 48 |
10 |
0.9 |
96 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
Applications:
Pigtails & patch cords
Equipment interconnections
Indoor/outdoor cabling (ideal for distribution networks)
Fiber optic connections (communication rooms & distribution frames)
Product Detail

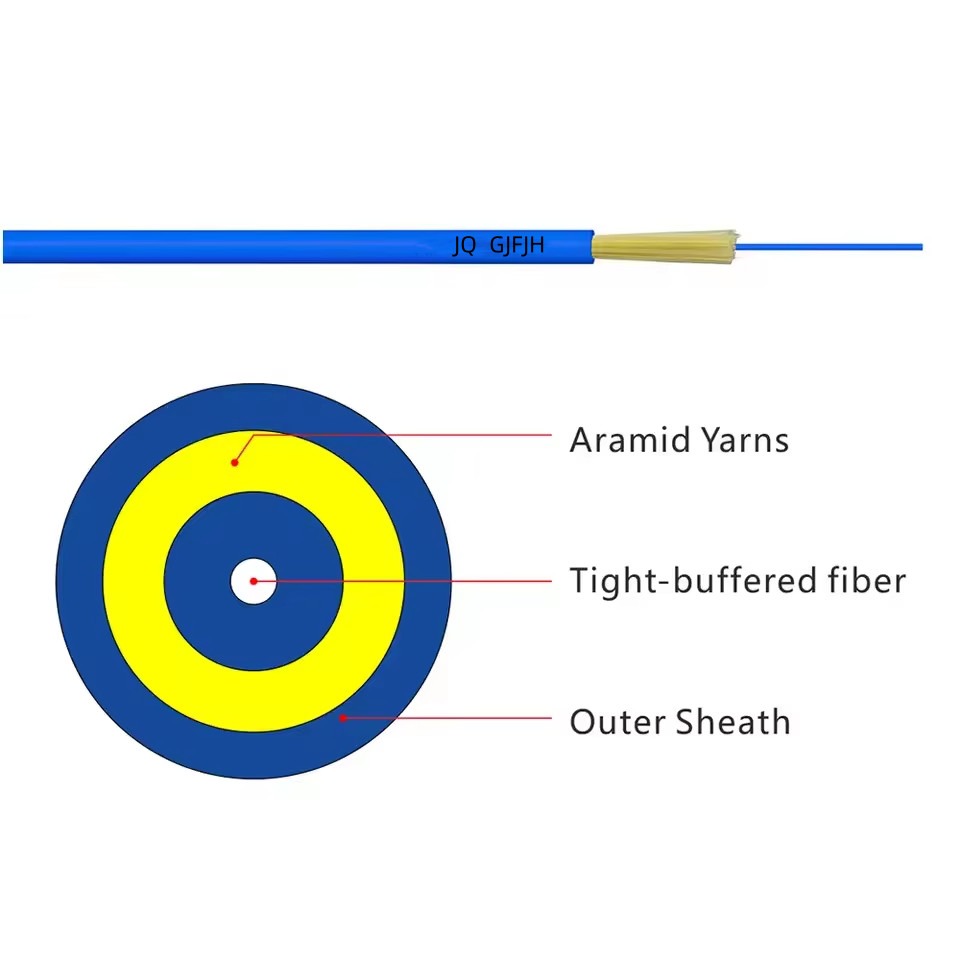

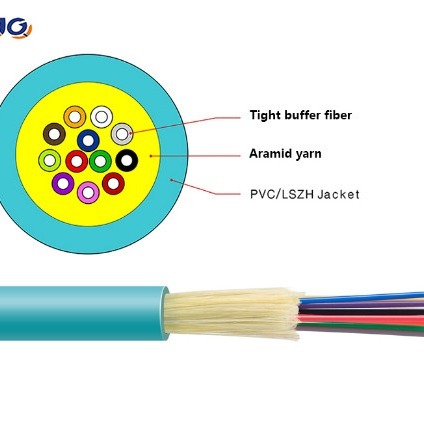

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Packing

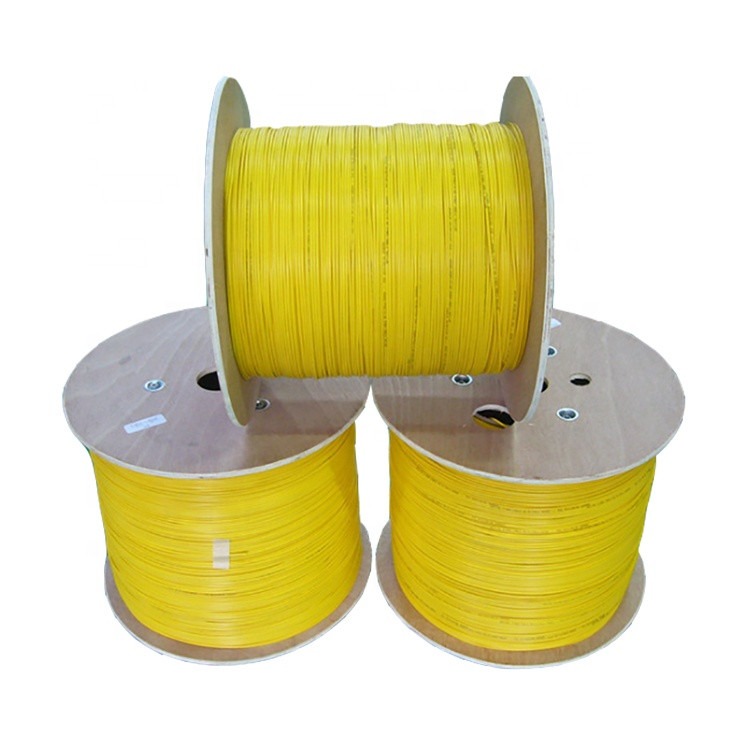

2km or customized length export wooden drum
Frequently Asked Questions (FAQ)
1. Why choose us?
Professional OEM/ODM manufacturer – Low MOQ & free samples available.
Guaranteed quality – Stable, high-performance products.
Efficient solutions – Fast response & customization support.
Competitive pricing – Cost-effective to maximize your benefits.
2. Do you accept OEM/ODM orders?
Yes, we fully support OEM/ODM services and welcome custom requirements.
3. Can you print our logo?
Yes, we offer logo printing on both products and packaging.
4. What shipping methods do you offer?
All options available: express delivery, sea/air/land freight.
5. What payment terms do you accept?
We support TT, LC, Western Union, Alipay, and other methods.
6. What’s the delivery time?
Typically 3-7 working days, depending on order quantity. Rest assured, we prioritize fast dispatch after payment.
