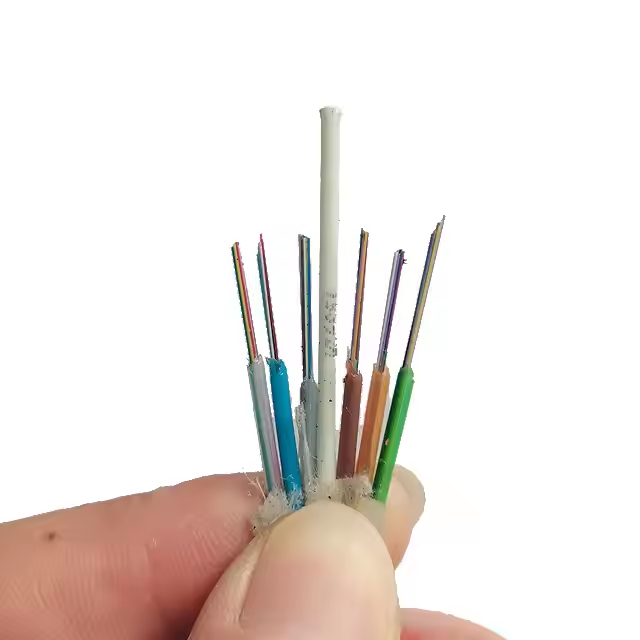

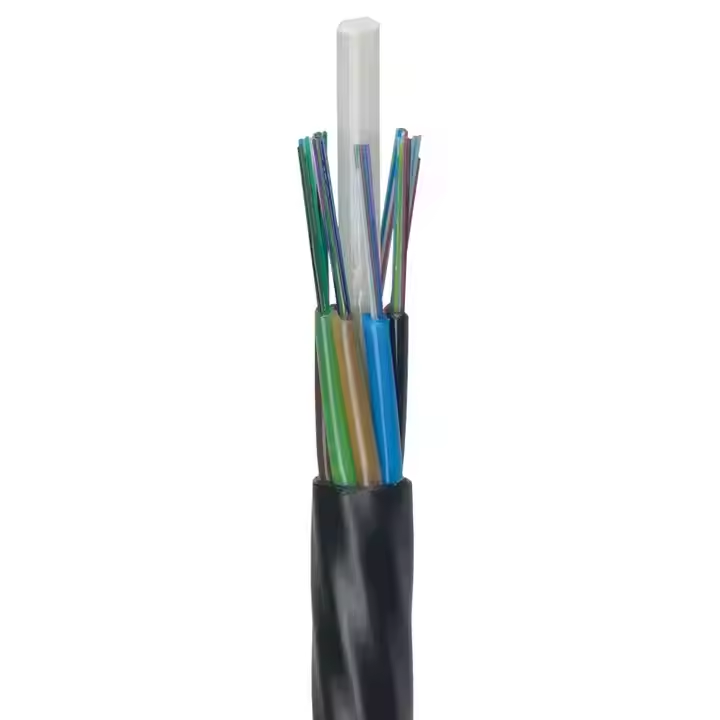

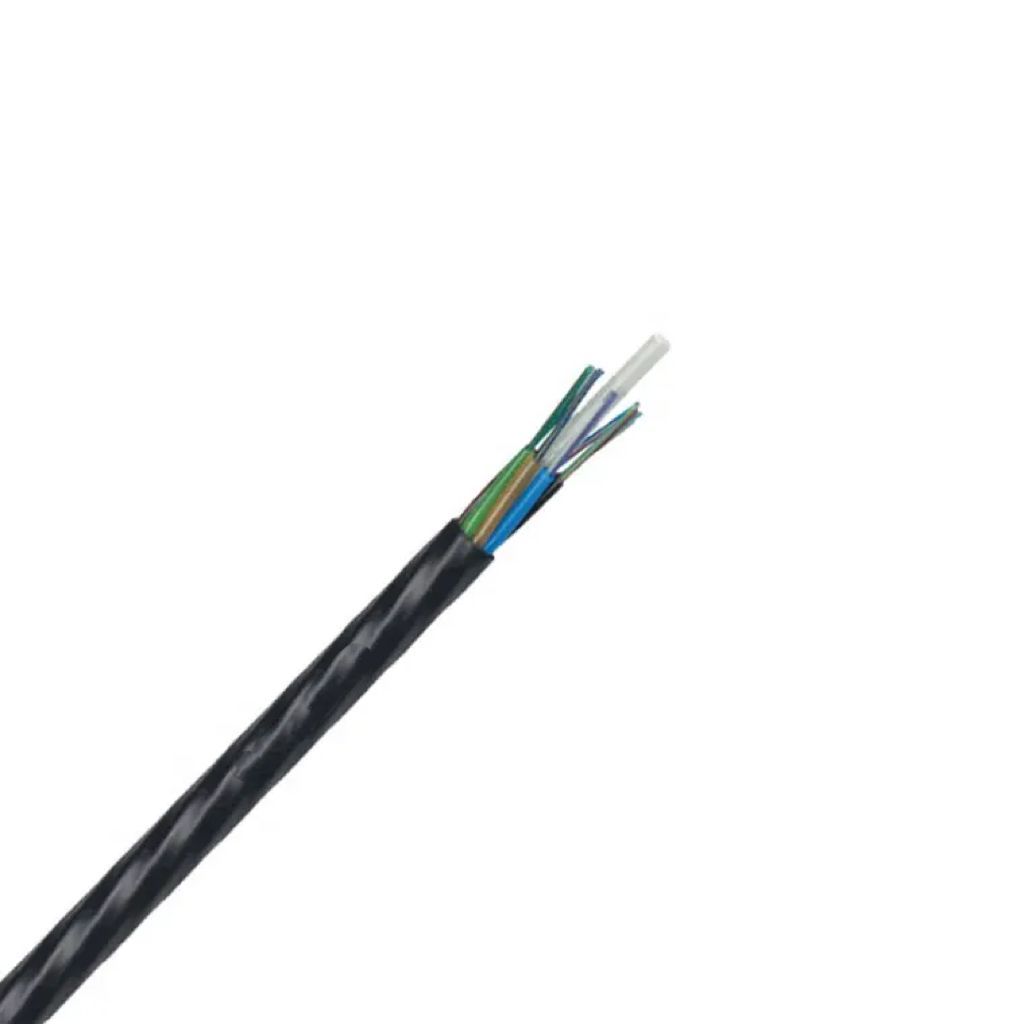

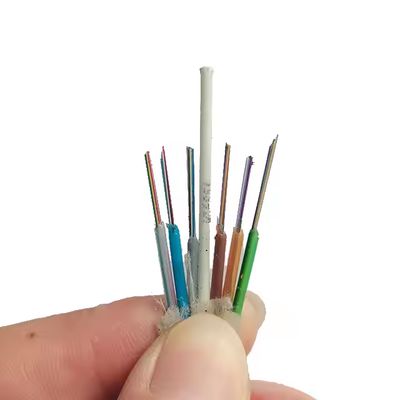

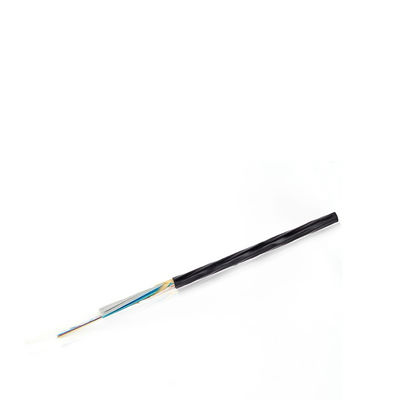

GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded
Contact Now

GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded

Minimum Order Quantity : 1km Packaging Details : wooden drum/Ply wooden drum
Delivery Time : 5-10days Payment Terms : D/P,T/T
Supply Ability : 10000m/per day
Place of Origin: CE/ROHS/ISO9001 Brand Name: JQ
Certification: CE/ROHS/ISO9001 Model Number: GCYFY

Detail Information
Jacket Material: HDPE Strength Member Material: FRP
Number Of Conductor: ≥ 10 Fiber Color: Black
Strengthening Structure: FRP Strength Member Sheath: PE
Applications: Aerial/Duct/Direct Burial Outter Diameter: 7.0mm
Highlight:

Simplex Micro Duct Fiber Optic Cable

,

GCYFY Air-Blown Fiber Optic Cable

,

96 Cores Fiber Optic Cable

Product Description

Product Description
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 0

Air-blown Micro Optical Fiber Cable GYCFTY 2-288core

Applicable for construction of FTTX and re-construction of old areas. Applicable for extension of metropolitan area network.
Applicable for express-way and private network.Applicable for new trunk line construction and online extension.

Characteristics

• Small overall diameter, lightweight, moderate hardness, suitable for air-blow installation.
• Non- metallic structure, no need for grounding.
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 1

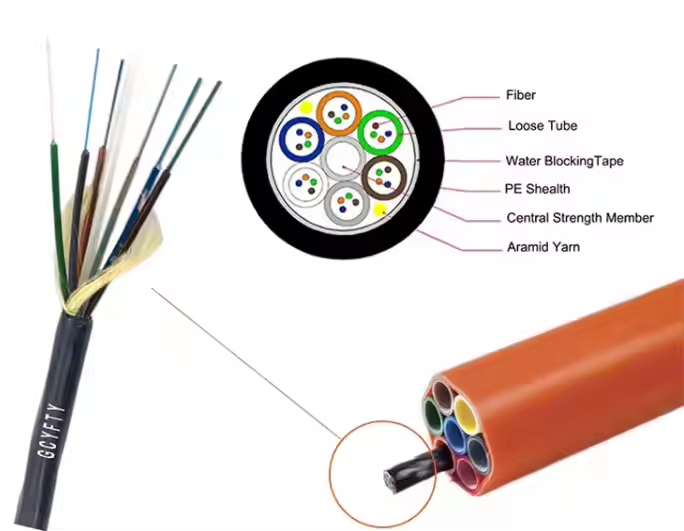

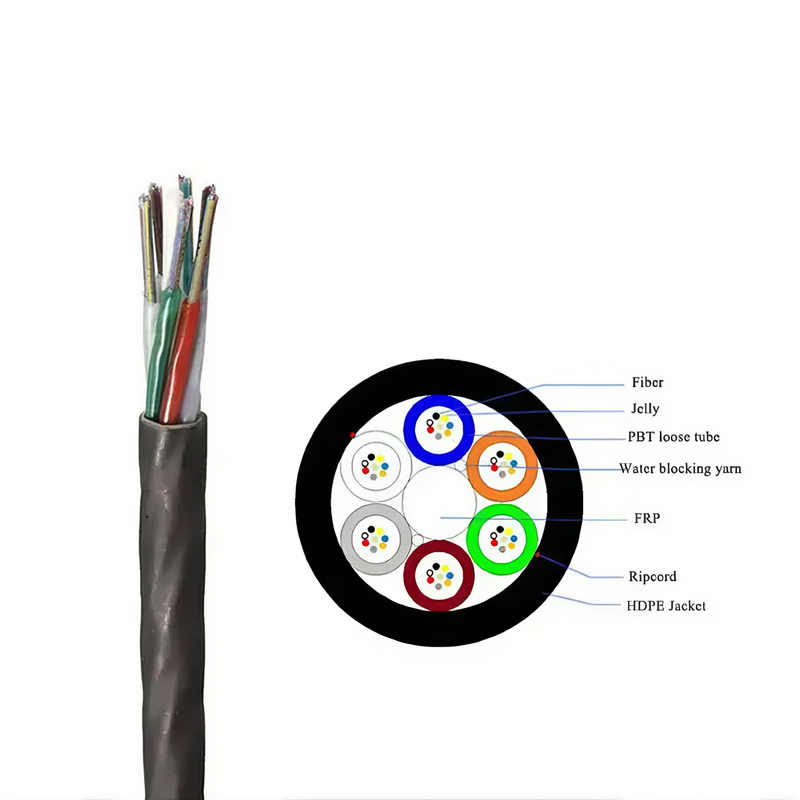

 Cable structure
1. PE outer jacket -double jackets
2. FRP central members
3. Water-blocking fiber jelly
4. FIBER JELLY
5. PBT Loose tube
6. Fibers
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 2
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 3
Specification
Item
Specification
Fiber type
G.652D
Attenuation

@ 1310 nm
≤0.36 dB/km
@ 1383 nm
≤0.35 dB/km
@ 1550 nm
≤0.22 dB/km
@ 1625 nm
≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)
≤1260 nm
Zero Dispersion Wavelength(nm)
1300 ~ 1324 nm
Zero Dispersion Slope
≤0.092 ps/(nm2.km)
Chromatic Dispersion

@ 1288 ~ 1339 nm
≤3.5 ps/(nm. km)
@ 1550 nm
≤18 ps/(nm. km)
@ 1625 nm
≤22 ps/(nm. km)
PMDQ
≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm
9.2±0.4 um
Core Concentricity Error
≤0.6 um
Cladding Diameter
125.0±0.7 um
Cladding Non-circularity
≤1.0%
Coating Diameter
245±10 um
Proof Test
100 kpsi (=0.69 Gpa), 1%
Where can we use the product


It is used for backbone network, MAN and access network laying installation.

GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 4
Packing & Delivery
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 5

Optical Characteristicd
1.Small diameter, light weight, easy to bend when laying by air blowing equipment, easy to operate;
2.All non-metal structure, no need to be grounded , low friction coefficient sheath material and structure design, long distance air blown laying;
3.Full use of pipe hole resources, construction speed is fast;
4.With the growth of communication business volume, it can be blown into optical cable in batches, and the investment is distributed to reduce the early investment;
5.It is suitable for construction in crowded MAN pipeline and avoids the destructive excavation in the past;
GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 6
Company Profile
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 13 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe,Mideast and Southeast Asia,Africa.

02:18

02:36



GCYFTY/GCYFY Air-Blown Blowing Micro Fiber Optic Cable Simplex Micro Duct 4 6 8 12 24 48 96 Cores Outdoor Non-Metallic Layer-Stranded 7
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included),however, a few of days would be taken for
special ones.

Q2: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are
areal and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.

Q3: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ is 1KM.
Q4:Q: What’s your delivery time?
A:Normally, our delivery time is 3-5 days after receiving deposit. Base on the quantity of the order.

Q5: Can your factory customize cables based on customer’s samples?
A:Yes, we can. OEM is welcomed

Q6: What is your manner of packing?
A:The color box and cartons,It can as the customers'requests.
