Name: GYTA33 Steel Armored Outdoor Fiber Optic Cable for Underwater Installation
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA33
Price: 1,249.01 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Cable Type: GYTA33

Place Of Origin:: Guangzhou,China

Fiber Count: 2-288cores

Fiber Type: G652D Single Mode Or As Your Request

Fiber Brand: YOFC

Number Of Conductors: ≥ 10

Material Of Jacket: PE Or As Your Request

Application: Outdoor/Underground/Aerial

Structure: Loose Tube Stranded

Strength Member: Steel

Armoured: Al Tape

Cable Structure: Multi-Loose Tube Aluminum Tape Armor

Temperature: -20 To 70°C

Cable Core: 1

Manufacturer: Yes

Bend Radius: 10x Cable Diameter

Warranty Time: 20

Fiber Cunt: 1-4 Cores

Fiber Model: G652D

Armored: Steel Plastic Composite Belt

Port: Guangdong /Shenzhen

Fiber Count: 2/4/6/8/12/24/48/96/144

Number Of Cores: 12

Fiber Brand: YOFC/Fiberhome

Self Support: Self-Supporting Aerial Cable

Fiber Counts: 2-12 Cores

Highlight:

steel armored outdoor fiber optic cable

underwater fiber optic cable

GYTA33 armored fiber cable

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: JQ/OEM

Certification: CE/ISO9001

Model Number: GYTA33

Payment & Shipping Terms

Packaging Details: Wooden Drum

Delivery Time: 3-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 8000 kilometers per month

Gallery

GYTA33 Steel Armored Outdoor Fiber Optic Cable for Underwater Installation

Product Description

Product Description

GYTA33 Fiber Optic Cable

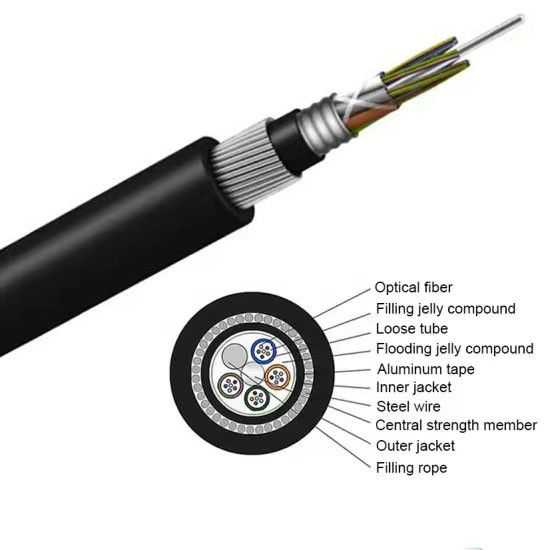

The GYTA33 cable features optical fibers housed in PBT loose tubes filled with thixotropic gel. A steel wire serves as the central strength member, optionally coated with a PE layer for high-fiber-count configurations. Loose tubes are SZ-stranded around the core, and gaps are filled with water-blocking compounds. The cable is armored with thin round steel wires and a polyethylene outer sheath for enhanced protection.

Features:

Premium optical fibers ensure stable signal transmission.
Precisely controlled excess fiber length provides outstanding mechanical and thermal stability.
Gel-filled loose tubes safeguard fibers against stress and environmental factors.
Comprehensive water-blocking throughout the core ensures excellent moisture resistance.
Central strength member made of corrosion-resistant phosphated steel delivers strong tensile performance.
Longitudinal aluminum tape armor and stranded steel wire enhance crush resistance, bulletproofing, and underwater burial durability.
High-quality materials and manufacturing extend the service life to over 30 years.

Application:
Designed for underwater use in seas, rivers, and lakes, this submarine fiber optic cable supports high-capacity, long-distance communication between continents, islands, coastal facilities, and offshore platforms. Its robust structure is ideal for harsh environments requiring direct-burial and high mechanical strength.

item	value
Model Number	GYTA33
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum Tape armor
Color	Black or as your need
Application	Direct burial, underground,sea
Certification	CE/ROHS/ISO9001 /ANATEL

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Packing

Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers.

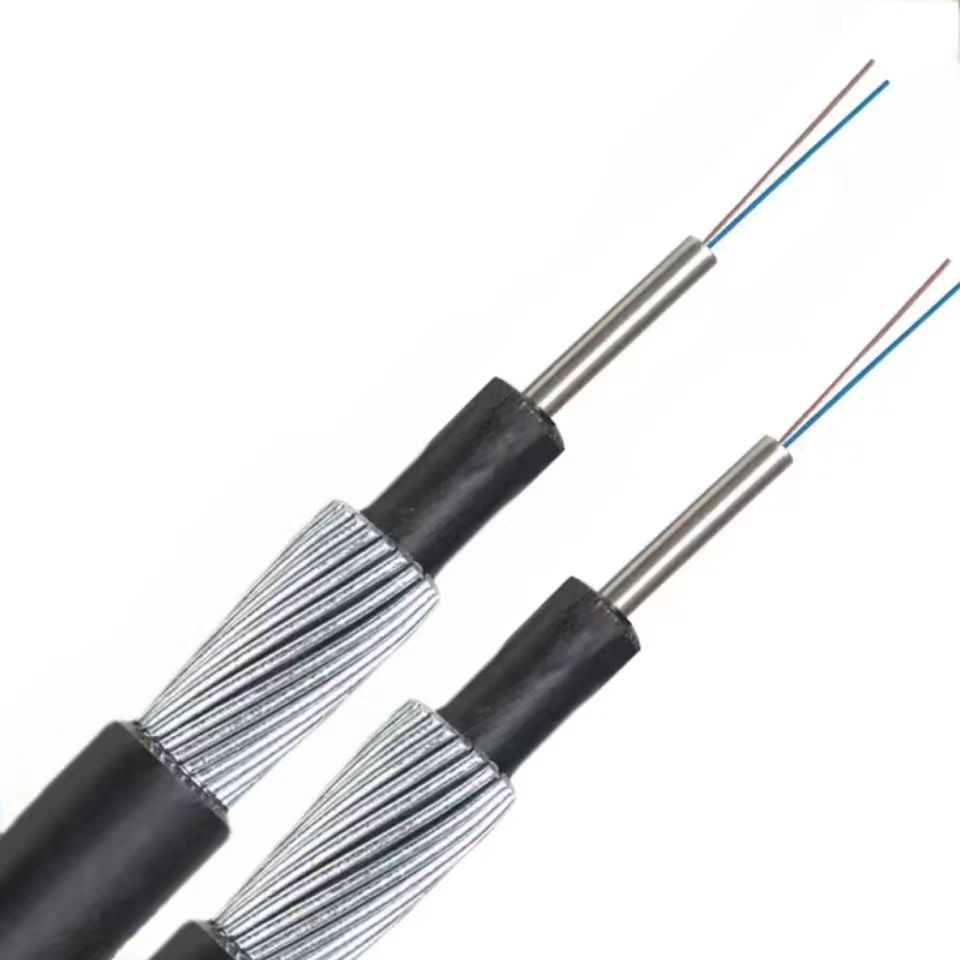

GYTA33 Steel Armored Outdoor Fiber Optic Cable for Underwater Installation 2

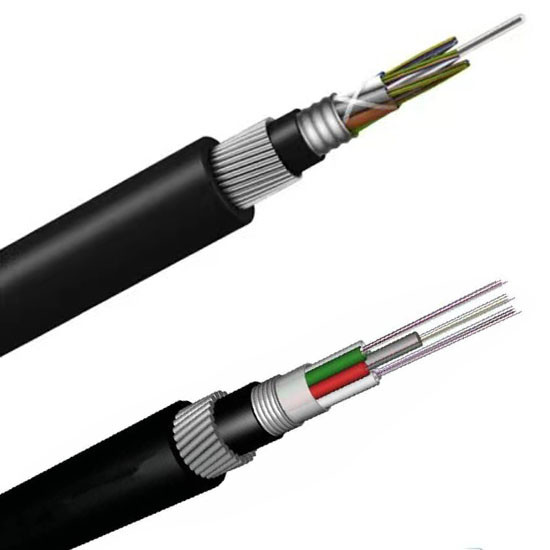

GYTA33 Steel Armored Outdoor Fiber Optic Cable for Underwater Installation 3

FAQ

Are you a trading company or a manufacturer?
We are a manufacturer with over 10 years of experience, specializing in the R&D and production of fiber optic cables. Our factory is located in Guangzhou—welcome to visit us!
How do you ensure quality?
Every fiber is thoroughly tested before delivery. After confirming the price, free samples are available for quality evaluation.
Do you accept small orders?
Yes, we support small and trial orders, especially for new projects. We believe every big business starts small.
What is your delivery time?
Normally 3–7 working days, depending on the order quantity. We will arrange production and shipment as soon as payment is confirmed.
Do you offer OEM service?
Yes, we provide OEM services, including custom logos and product designs. Your ideas are always welcome.
