GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation
GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation
GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation
Contact Now

GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: jiqian/haiso/Customize
Certification: CE/ISO9001/RoHS/FCC Model Number: GYTA53

Detail Information
Jacket: PE,MDPE,LSZH,PVC,HDPE Color: Black
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 2-144 Cores
Life Time: 25 Years Length: 1km 2km 3km 4km
OEM: Yes Packing: 2km/Wooden Drum
Number Of Conductors: 48 96 72 144 Central Strength Member: Metallic Tape
Factory: Yes Armor: Aluminium Tape
Core: Up To 48 Fibers Life Time: More Than 30 Years
Jacket Metarial: PE,HDPE/LSZH Tensile Strength: 1000N
Cable Weight: 150kg/km Cable Drum: 3KM
Suitable Temperature: - 40℃~ +60℃ Cable Structure: Double Jacket/Double Aluminium Armored
Installation Method: Direct Buried/ Duct
Highlight:

armored fiber optic cable underground

,

GYTA53 fiber optic cable 144 cores

,

underground fiber cable with armor

Product Description

Factory Price GYTA53 Armored Outdoor Fiber Optic Cable for Direct Burial and Duct Installation



The GYTA53 fiber optic cable is engineered for direct burial and duct applications, offering high fiber capacity with robust protection. Supporting up to 144 fibers, it’s ideal for demanding outdoor environments where reliability and durability are critical.

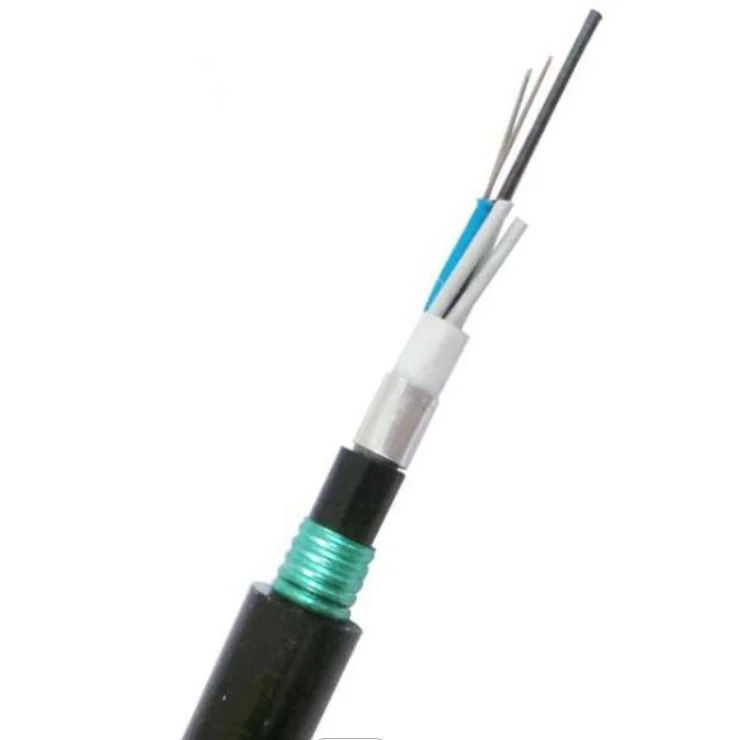

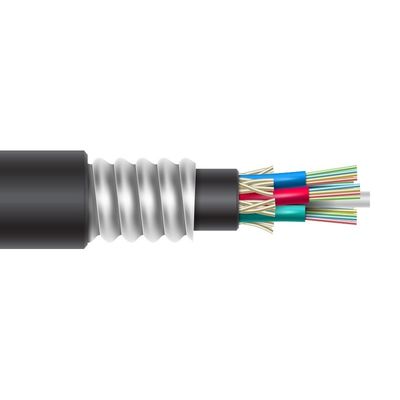

This outdoor cable features a central steel strength member, gel-filled loose tubes, and optional PP fillers for structural balance. Water-blocking gel enhances moisture resistance, while the aluminum tape and inner PE sheath provide additional mechanical protection. A copolymer-coated steel tape layer and PE outer sheath complete the rugged double-armored construction. G652D single-mode fibers are standard. Custom specifications available upon request.

GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 0





Product Feature

  • Loose tube with gel filling ensures excellent fiber isolation and protection.

  • Dual-jacket, double-armored structure enhances mechanical strength and durability.

  • Designed for direct burial with superior rodent resistance (GYTA53 structure).

  • UV-resistant outer sheath with moisture-blocking construction for outdoor reliability.

GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 1
Technical Parameters:
Item
Properties and Requirements
Fiber Count
2-288
Min Bending Radius
Dynamic
25✖diameter of cable
Static
12.5✖diameter of cable
Temperature Range
40°C~+60°C
Nominal Weight(kg/km)
Depends on Different Specifications
Laying method
Direct Buried

GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 2



Data Sheet
Fiber count
Loose tube diameter
(mm)
Nominal Thickness of outer jacket
(mm)
Cable diameter/
Height
(mm)
Cable weight
(kg/km)
12core
1.9±0.1
1.6
12.0±0.2
145
36core
1.9±0.1
1.6
13.2±0.2
155
48core
1.9±0.1
1.6
13.2±0.2
155





Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 3

Delivery
For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 4

Facory Picture
GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 5
GYTA53 Armored Fiber Optic Cable 2-144 Cores for Underground Installation 6
We are fiber cable manufacturer.We have a factory.
We have rich experience in foreign trade.
Give us a chance to serve you, saving you time and money.
