Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation
Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation
Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation
Contact Now

Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong China Brand Name: Jiqian/Customize/ OEM
Certification: CE/ISO9001/RoHS/FCC Model Number: GYXTW

Detail Information
Fiber Count: 2-24Core Strength Member: Steel Strand
Warranty: 25 Years MOQ: 1KM
OEM: Yes Armored: Yes
Factory: Yes Construction: Stranded Loose Tube
No Of Core: 24 Pairs Connector Type: SC, LC, FC, ST, Or Customized
Outer Diameter: 10.5~18.8+_0.5mm Strengthen Core: FRP
Temperature: -20 Degree ~+70 Degree Cable Outer Dame: 8.9-10.2mm
Sheath: HDPE/LSZH Armour Material: Corrugated Aluminium Tape
Armour: Double Steel Tape Loose Tube Material: PBT Or Jelly
Jacket: UV PE Laying Mode: Duct/Aerial
Jacket Material: PE Loose Tube: PBT
Armoured Type: Yes Life Span: 30 Years
Strength: Steel Wire Fiber Numbers: 48cores
Model: Armored Fiber Optic Cable Cable Diameter: 10mm
Out Sheath: PE Tensile Strength: 1000N
Part Number: GL-GYTC8S-812 Mode: Single Mode Or Multi Mode
Outer Sheath Material: MDPE / HDPE Type: Single-mode Fiber
Highlight:

single mode armored fiber optic cable

,

HDPE sheath outdoor fiber cable

,

duct aerial installation fiber optic cable

Product Description

Product Description

OEM Outdoor Aerial Duct Single Mode/Multimode G652D Fiber Optic Cables GYXTW Armored 2 4 6 8 12 24 Core Optical Cable
GYXTW fiber optic cable, often referred to as central loose tube or light armored cable, is a common choice for outdoor applications. Standard designs usually include 2 to 12 fibers, arranged by fiber color code. In the abbreviation, “GY” stands for outdoor use, “X” means central loose tube, “T” indicates the gel-filled structure, while “W” refers to the PE sheath with steel wire strength member. This cable type is adaptable for aerial, duct, or direct buried installation, making it one of the most widely applied cables in the telecom industry.

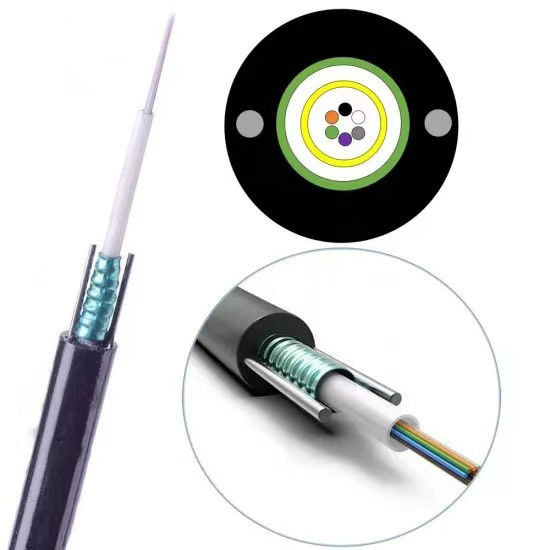

Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation 0

Characteristics

  • Parallel steel wires provide extra reinforcement, with filler tube ensuring fiber and steel protection.

  • Tape-armored structure improves strength and reliability.

  • Excellent resistance to mechanical stress and environmental factors.

  • Lightweight and compact for efficient handling.

  • Simple to install and operate.

Operating Temperature

  • From -40°C to +60°C

Application

  • Optimized for outdoor cable distribution.

  • Suitable for aerial installation and duct deployment.

  • Applicable for both backbone transmission and LAN connections.

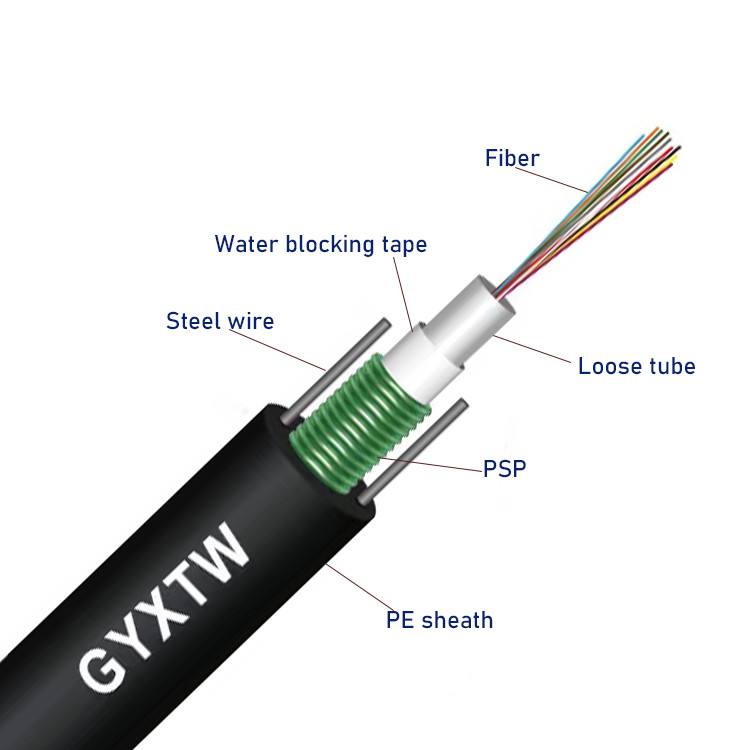

Armored GYXTW Optical Fiber Cable Single Mode HDPE Sheath for Duct and Aerial Installation 1
PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
