GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial
GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial
GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial
Contact Now

GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong China Brand Name: Jiqian/Customize/ OEM
Certification: CE/ISO9001/RoHS/FCC Model Number: GYTS-48B1

Detail Information
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 2-288 Cores
Jacket: PE,MDPE,LSZH,PVC,HDPE Color: Black
Length: 2km , 5Km, Or Customized Length Warranty: 10 Years
Application: Duct/ Direct Burial Wave Length: 1310/1550
Tube Type: Loose Tube Lift Time: More Than 20 Years
Fiber Brand: Yofc/corning/ Fiberhome Waterproof: Yes
Jacket Diameter: 9.8-16.1 Allowed Lateral Pressure: >1000(N/100mm)
Strength Member: Two Steel Wire Cable Length: 1000m
Number Of Conductors: 2,4,8,24,48 Diameter Of Tube: 2.2-2.6mm
Span: 100/200/300/400/500m Armor Type: Steel Tape
Highlight:

armored underground fiber optic cable

,

direct burial fiber optic cable

,

GYTS outdoor fiber cable

Product Description

High-Performance GYTS Armored Underground Fiber Optic Cable



The GYTS armored optical fiber cable, available in 2, 4, 6, 8, 12, 24, 32, and 48 cores, is engineered for reliable underground fiber installations. Its strong armored layer provides excellent protection against mechanical stress and harsh environmental conditions. With multiple core options, the cable offers flexibility and stable long-distance data transmission, making it ideal for telecom networks, data centers, and other critical communication systems.


GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 0



Structural Features

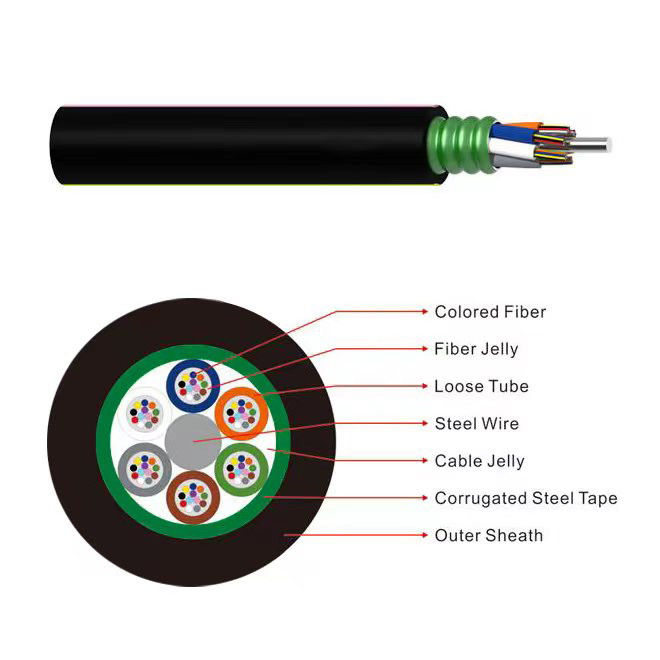

Loose tubes or filler elements are stranded around a central metal strength member. The cable core is wrapped with corrugated steel tape and encased in a protective PE outer jacket. The tubes, constructed from temperature-resistant materials, contain double-coated single-mode or multi-mode fibers.

GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 1
Product feature
Structural Features

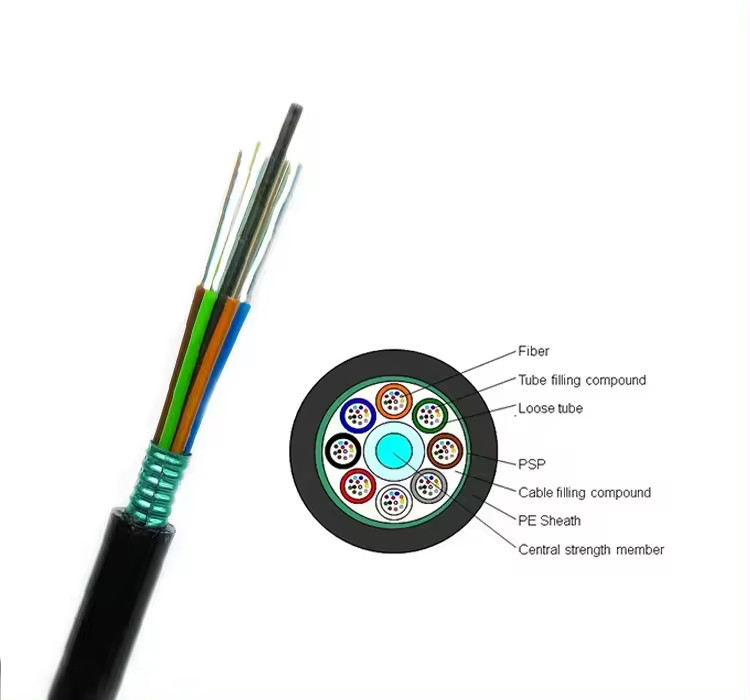

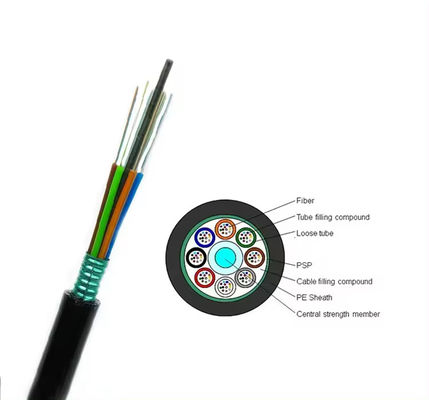

The cable consists of loose tubes or fillers stranded around a central metal strength member. The core is reinforced with corrugated steel tape and covered by a durable PE outer jacket. The tubes, made of heat-resistant materials, house double-coated single-mode or multi-mode fibers.

GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 2
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D



GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 3





Fiber Tube Color:
GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 4

Packaging Details

  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 5
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 6
Exhibition Picture
GYTS Armored Underground Fiber Optic Cable 2-288 Cores Direct Burial 7

Frequently Asked Questions (FAQ)

1. What is a fiber optic cable?
Fiber optic cables transmit data as light signals, providing higher speeds and greater bandwidth than conventional copper cables.

2. What types of fiber optic cables do you offer?
We supply armored, drop, and loose tube cables suitable for applications like underground installations and FTTH networks.

3. What core counts are available?
Cables come in 2, 4, 6, 8, 12, 24, 32, and 48 cores. Custom core counts can also be arranged.

4. What’s the difference between single-mode and multi-mode fiber?

  • Single-mode: Ideal for long-distance, high-speed transmission.

  • Multi-mode: Suited for shorter distances with high data rates.

5. How are the cables packaged?
Cables are delivered on fumigated wooden drums, with protective polyethylene wrapping and reinforced wooden battens.

6. How do I select the right fiber optic cable?
Consider core count, fiber type (single-mode or multi-mode), and installation environment (indoor, outdoor, or underground). We can help you choose the most suitable option.

7. What is the lead time for orders?
Standard orders usually ship within 7–10 business days. Custom orders may require longer.

8. Do you provide installation services?
We do not install cables directly but can recommend trusted installation partners.

9. How can I get a quote?
Contact us at [jiqian@gzjqofc.com] with details such as core count, cable type, and quantity to receive a quotation.
