Name: 48 Core GYTA33 Direct Burial Steel Wire Armored Submarine Underwater Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA33
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Cable Type: GYTA33

Place Of Origin:: Guangzhou,China

Fiber Count: 2-288cores

Fiber Type: G652D Single Mode Or As Your Request

Fiber Brand: YOFC/Fiberhome/ Corning/Fujikura

Number Of Conductors: ≥ 10

Strength Member: Steel Wire/FRP Glass Yarn

Structure: Loose Tube Stranded

Armoured: Double Armored Double Jacket

Material Of Jacket: PE Or As Your Request

Cable Structure: Multi-Loose Tube Aluminum Tape Armor

Application: Submarine Underwater Undersea

Working Temperature: -40~+60℃

Connector Type: SC/FC/ST/LC

Warranty: More Than 25years

Certifications: ROHS, REACH, SGS, And ISO Certifications

Material: Fiber Optic

Loose Tube: PBT

Mode: Single Mode Or Multi Mode

Sheath: HDPE/LSZH

Feature: Corrugated Aluminium Tape

Number Of Fiber: 8

Manufacturer: YES

Jacket Diameter: 12.8

Use: Duct/aerial/ Underwater/ Direct Burial

Installation Method: Aerial

Out Sheath Color: Black

Highlight:

48 core steel wire armored fiber optic cable

direct burial underwater fiber optic cable

GYTA33 submarine fiber optic cable

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: JQ/OEM/Customize

Certification: CE/ISO9001/RoHS/FCC

Model Number: GYTA33

Payment & Shipping Terms

Packaging Details: Wooden Drum

Delivery Time: 3-5days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 8000 kilometers per month

Gallery

48 Core GYTA33 Direct Burial Steel Wire Armored Submarine Underwater Fiber Optic Cable

Product Description

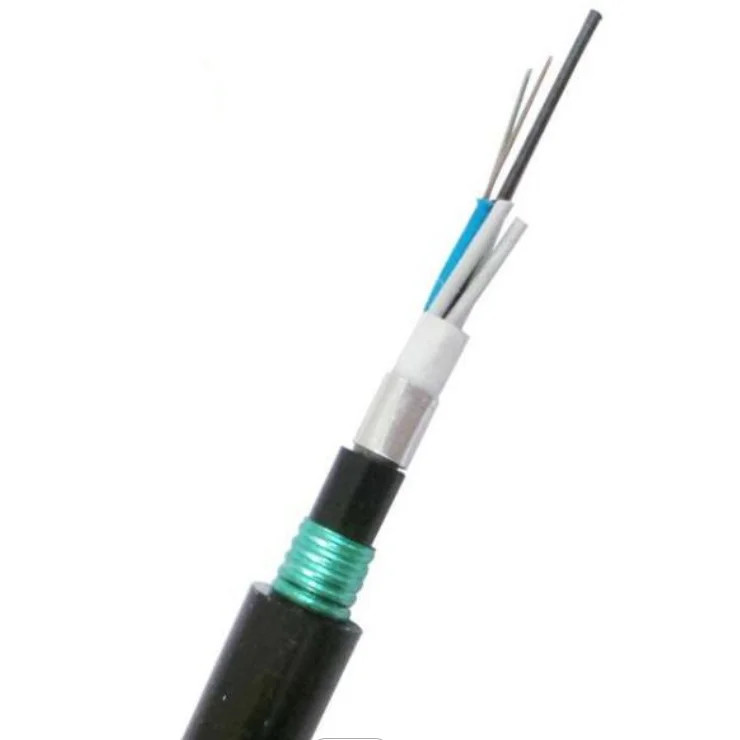

The GYTA33 optical cable adopts a PBT loose tube design, where the optical fibers are housed and filled with thixotropic gel. At the center of the cable core lies a steel wire strength member, and for cables with higher core counts, a PE cushion layer is added. The loose tubes are stranded around the central strength member in an SZ pattern, with water-blocking compounds filling the interstices. The outer layer is reinforced with round steel wire armor and covered by a polyethylene sheath for enhanced protection.

The GYTA33 optical cable is designed for deployment in freshwater and shallow water environments. It can be laid directly without joints and is suitable for short-distance underwater communication.

Key Features:

Strong resistance to mechanical stress and temperature variations.
Steel wire armor provides high tensile strength.
Longitudinal aluminum tape wrapping acts as an effective moisture barrier.
Full cross-section water-blocking ensures protection against fresh or salt water intrusion.
Outer jacket shields the cable from UV exposure.
Flame-retardant sheath available upon request.
Reliable operation when installed at depths up to 250 meters.

Product Specifications:

Package:

24 Core G652D GYTA33 Steel Armored Stranded Loose Tube Optical Fiber Cable
3km/Wooden Drum,Drum dimension 110*55*50cm,G.W 360.0kg.

FAQ

Q1: Are you a manufacturer or a trading company?
A1: We are a direct manufacturer.

Q2: Where is your factory located? How can I visit?
A2: Our factory is in Shenzhen, Guangdong Province. You can fly to Shenzhen or Guangzhou airport, and provide us with your flight number—we’ll arrange pickup.

Q3: Can I order samples?
A3: Of course! Sample orders are welcome for testing our quality and service.

Q4: What is the warranty period?
A4: All products come with a 12-month warranty.

Q5: What payment options do you support?
A5: We accept L/C, T/T, PayPal, Western Union, and MoneyGram.

Q6: Do you offer OEM/branding services?
A6: Yes, we provide professional OEM service. For bulk orders, custom logo printing is free of charge.
