Home /Products/Armoured Fiber Optic Cable/GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use

GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use

1KM
MOQ
60-200USD/KM
Price
GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-24Core
Strength Member: Steel Strand
Warranty: 25 Years
MOQ: 1KM
OEM: Yes
Armored: Yes
Factory: Yes
Construction: Central Loose Tube
No Of Core: 24 Pairs
Connector Type: SC, LC, FC, ST, Or Customized
Outer Diameter: 10.5~18.8+_0.5mm
Strengthen Core: FRP
Fiber Code: GYTA53
Temperature: -20 Degree ~+70 Degree
Cable Outer Dame: 8.9-10.2mm
Sheath: HDPE/LSZH
Armour Material: Corrugated Aluminium Tape
Armour: Double Steel Tape
Loose Tube Material: PBT Or Jelly
Jacket: Anti UV PE Material/ HDPE/ MDPE
Laying Mode: Duct/Aerial
Type: Gyfxtby-8b1.3
Fiber Type: Single-mode
Package: Wooden Drum/Customized
Outer Jacket Material: PE(Black)
Material: Black
Central Strength Member: Steel Wire
Loose Tube Color: At Your Request
Trademark: OEM
Armor: Corrugated Steel Tape
Part No: GL-ADSS/D10-848
Oem: Accepted
Outer Sheath: PE(Polyethylene)/HDPE
Cable Diameter: 12.5mm
Cable Color: Black
Highlight:

armored single mode fiber optic cable

,

HDPE sheath fiber optic cable

,

aerial duct fiber optic cable
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Jiqian/Customize/ OEM
Certification: CE/ISO9001/RoHS/FCC
Model Number: GYXTW
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 days, it depends on your quantity
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

Product Description
OEM Outdoor Duct and Aerial Single Mode / Multi Mode G652D Fiber Optic Cables GYXTW Armored 2 4 6 8 12 24 Core

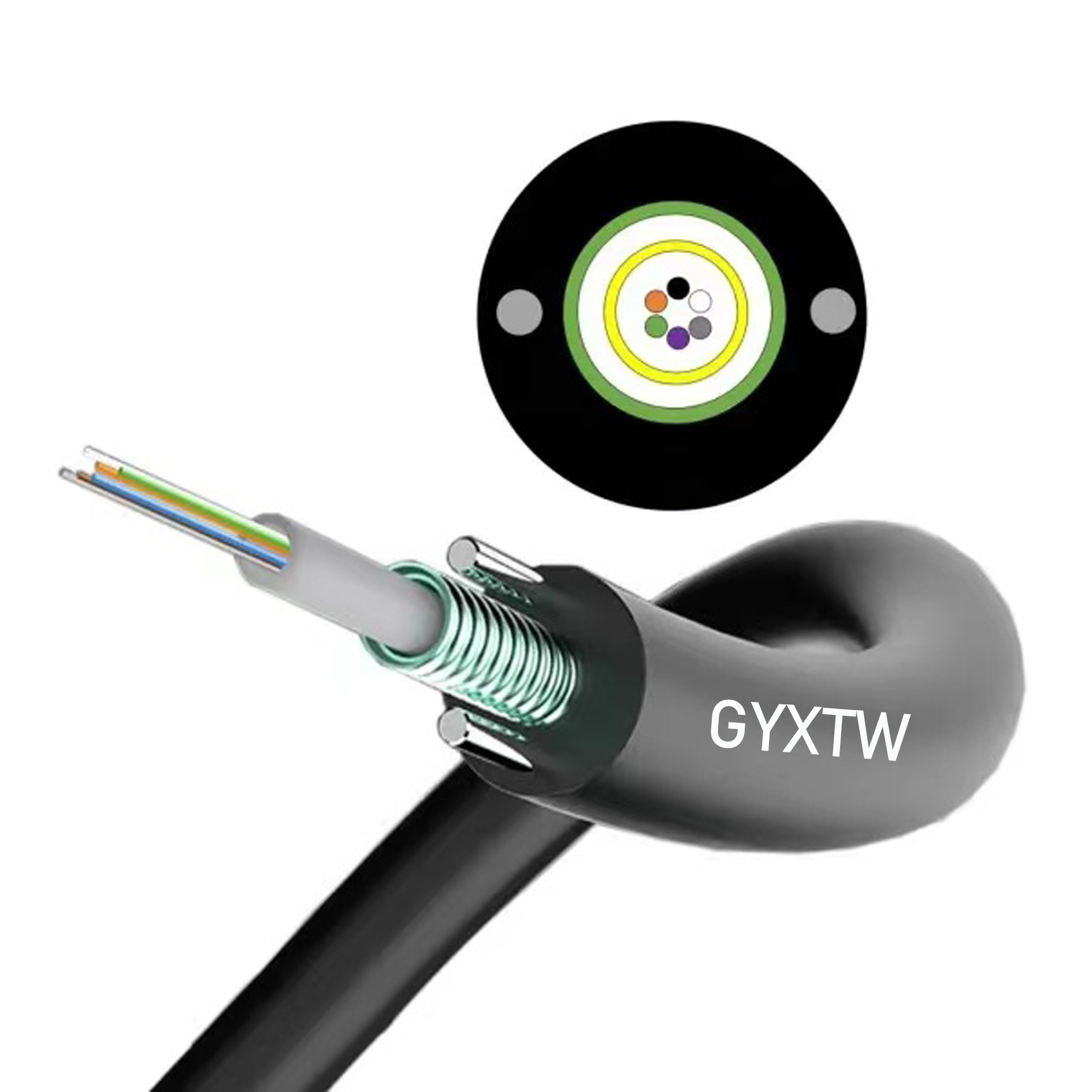

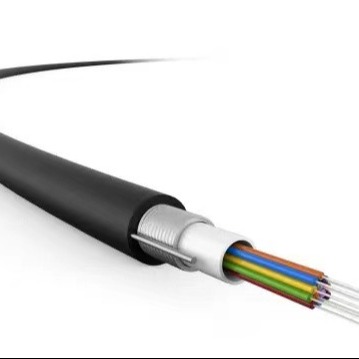

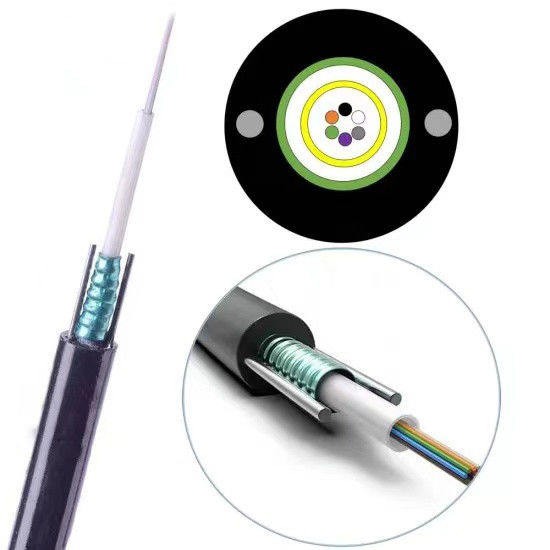

The GYXTW fiber optic cable, also known as central loose tube or light-armored optical cable, is one of the most commonly used outdoor cables in telecommunication networks. It features a compact structure with fibers (typically 2–24 cores) placed in a high-strength loose tube filled with a water-blocking gel to ensure long-term stability. The steel wire parallel strength members provide additional mechanical protection, while the polyethylene (PE) sheath with corrugated steel tape armor offers resistance against moisture, pressure, and environmental stress.

This design makes GYXTW cables highly reliable for harsh environments, supporting aerial suspension, direct burial, or duct installation. With its durability and stable transmission, GYXTW is widely applied in backbone networks, metropolitan area networks (MAN), and access networks.



Key Features

  • Central loose tube filled with water-blocking compound to protect fibers

  • Parallel steel wire strength members for extra tensile strength

  • Corrugated steel tape armored for superior crush and rodent resistance

  • Compact, lightweight, and easy to install

  • Stable performance under extreme conditions: operating temperature -40°C to +60°C

  • Long service life with high mechanical and environmental reliability

Applications

  • Outdoor fiber distribution in backbone and access networks

  • Ideal for aerial, pipeline, or direct burial installations

  • Suitable for long-distance transmission and LAN/WAN communication projects

  • Perfect for telecom operators, ISPs, power grid communication, and railway/military networks


GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use 0



GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use 1
PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
Related Products
GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use 2
GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use 3
Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a technology-driven enterprise focused on the R&D, production, and sales of communication products, with independent import and export rights. With over 8 years of industry experience and ISO 9001:2015 certification, we specialize in manufacturing fiber optic cables and patch cords.

We provide OEM solutions and can customize fiber optic cables to meet specific project requirements. Our product range includes a wide variety of optical fiber cables and related accessories, widely applied in telecommunications and network infrastructure. Jiqian’s products are exported globally, with markets in Egypt, Pakistan, the Maldives, India, Brazil, Chile, and beyond.

GYXTW Armored Single Mode Fiber Optic Cable with HDPE Sheath for Aerial and Duct Use 4
FAQ

Q: Are you a factory or trading company?
A: We are a professional factory.

Q: What is your minimum order quantity (MOQ)?
A: The MOQ for fiber optic cables is 1km.

Q: Which fiber brands do you use?
A: We use high-quality brands such as Corning, YOFC, FiberHome, and more.

Q: Do you accept small orders?
A: Yes, small orders are welcome. We support new customer projects as business often starts with smaller quantities.

Q: What is your delivery time?
A: Normally 5–7 days after order confirmation, depending on order volume.

Q: Can I request customized products or logos?
A: Yes, OEM service is available for both product specifications and logos.

Q: What are your payment terms?
A: We accept T/T, L/C, and Western Union. Standard terms are 30% deposit and 70% before shipment.
