Product Description

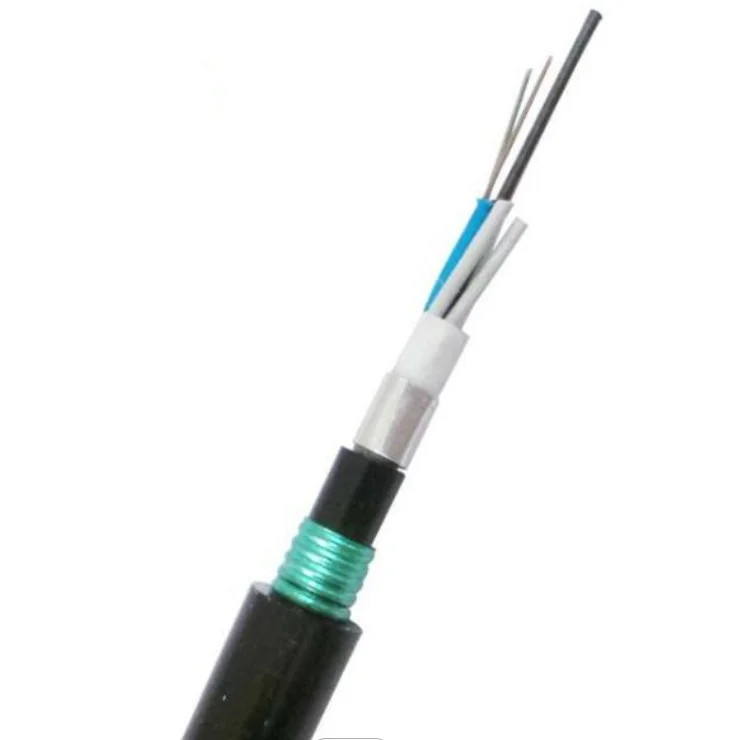

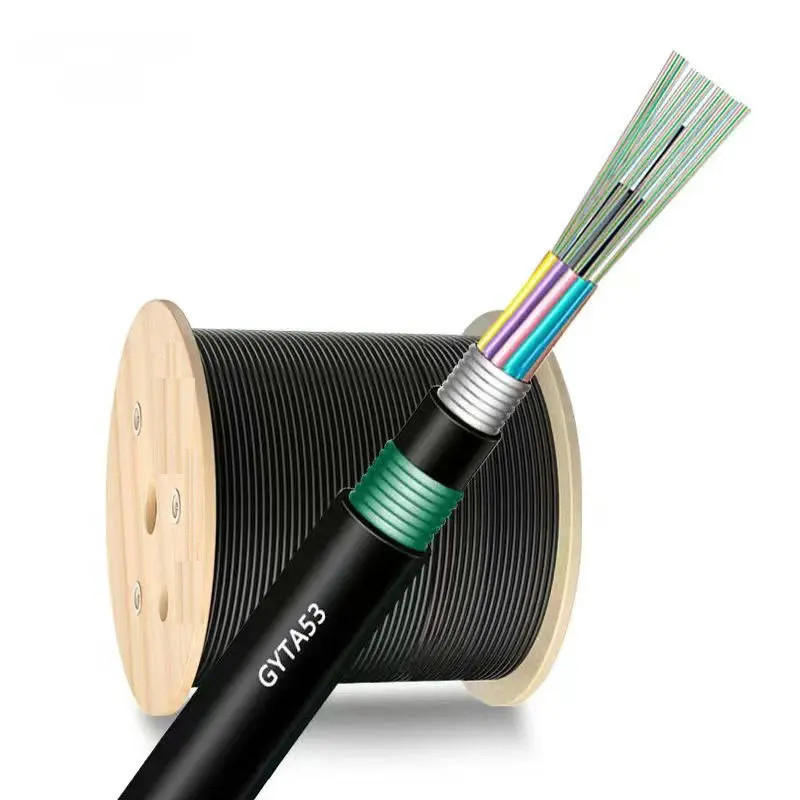

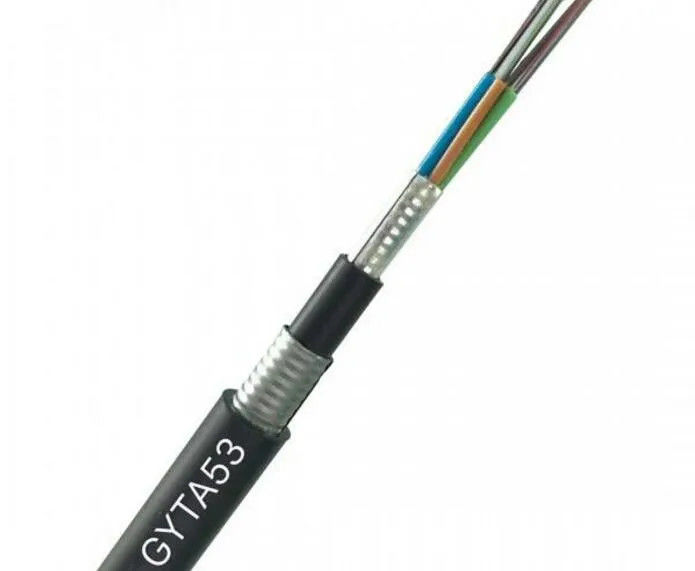

GYTA53 Fiber Optic Cable 36 Core Single Mode Outdoor Aluminum Armored Direct Burial
Product Overview:
Our GYTA53 fiber optic cable is designed for high-capacity outdoor fiber transmission and reliable performance in demanding environments. Ideal for direct burial applications, this cable combines durability with superior optical performance.
Key Features:
-
High Fiber Count Options: Supports 36 to 288 single-mode fibers, accommodating various network scales.
-
Robust Construction: Aluminum armored for mechanical protection, S-Z stranded design for flexibility and strength.
-
Outdoor & Underground Ready: Engineered for direct burial in ducts or open trenches, resistant to moisture, rodent damage, and harsh weather conditions.
-
Precision Manufacturing: Ensures stable signal transmission and minimal attenuation for long-distance networks.
-
Versatile Applications: Perfect for telecom, data centers, metropolitan networks, and high-demand outdoor installations.
Why Choose GYTA53 Cable:
Reliable, long-lasting, and engineered for challenging installation scenarios, our GYTA53 cable provides both flexibility and protection for modern fiber optic networks.
Features
Optimized Mechanical and Thermal Performance
Designed to maintain excellent structural integrity under various environmental conditions.
Enhanced Loose Tube Construction
Loose tubes are made from water-resistant polymer materials for superior tensile strength. Each tube is filled with a viscous gel to protect fibers from moisture.
Axial Stability Design
Layered construction minimizes longitudinal deformation, providing compression resistance and long-term stability.
Advanced Environmental Protection
UV-resistant polyethylene sheath offers protection against sunlight degradation and water ingress.
Reinforced Structural Components
-
Central steel wire reinforcement
-
Hydrophobic filling in buffer tubes
-
Complete interstitial filling across the cable core
-
Laminated aluminum-polyethylene (APL) moisture barrier
Application
Ideal for direct burial installations and outdoor deployment in challenging environments.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
GYTA53( Aluminium polyethylene laminate)
|
Fiber
Count
|
Nominal
Diameter
(mm)
|
Nominal
Weight
(kg/km)
|
Allowable Tensile Load
(N)
|
Allowable Crush Resistance
(N/100mm)
|
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|
2~30
|
13.2
|
162
|
3000
|
1000
|
3000
|
1000
|
|
32~48
|
13.8
|
175
|
3000
|
1000
|
3000
|
1000
|
|
50~72
|
14.6
|
205
|
3000
|
1000
|
3000
|
1000
|
|
74~96
|
16.0
|
230
|
3000
|
1000
|
3000
|
1000
|
|
98~144
|
17.6
|
285
|
3000
|
1000
|
3000
|
1000
|
|
＞144
|
Avaliable upon customer's request
|
| Cable type |
Drum |
|
Height
(mm)
|
Width
(mm)
|
Inner diameter
(mm)
|
Length
(km)
|
Drum type |
| GYTA53-12 |
950 |
760 |
400 |
2 |
Wooden drum |
| GYTA53-24 |
950 |
760 |
400 |
2 |
Wooden drum |
| GYTA53-48 |
1100 |
760 |
500 |
2 |
Wooden drum |
| GYTA53-96 |
1200 |
760 |
500 |
2 |
Wooden drum |
Packing
1/2/3/4km or customized length export wooden drum
FAQ
1. Are you a trading company or manufacturer?
We are a manufacturer with over 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, and you are welcome to visit us.
2. How is the product quality?
All fibers are tested before delivery to ensure quality. You can also request free samples for inspection after confirming the price.
3. Do you accept small orders?
Yes, small orders are available. We support new customer projects, as we understand that business often starts with small quantities.
4. What is the delivery time?
Typically 3–7 working days, depending on the order quantity. We will arrange your shipment as quickly as possible after receiving payment.
5. Do you provide OEM services?
Yes, OEM is welcome. We can print your logo on the product, and we are open to any custom ideas you have.
