Name: GYTA53 4 to 144 Core Armored Outdoor Fiber Optic Cable Direct Burial Double Jacket
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA53
Price: 1,249.01 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Type: G652D Single Mode Or As Your Request

Color: Black

Jacket: PE,MDPE,LSZH,PVC,HDPE

Fiber Count: 4-144 Cores

Length: 2km Or Customized Length

Installation: Underground Directly Buried

Oem: Available

Type: Singlemode &Multimode/ MM/ SM

Highlight:

armored outdoor fiber optic cable

direct burial fiber optic cable

double jacket fiber optic cable

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM/Customize

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GYTA53

Payment & Shipping Terms

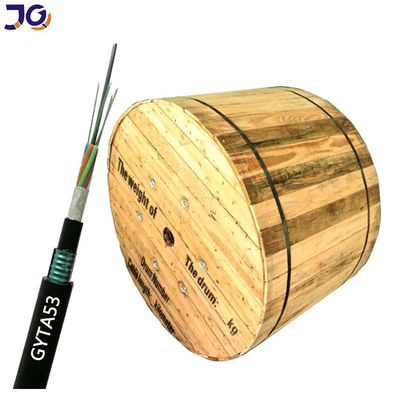

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4500KM Per Month

Gallery

GYTA53 4 to 144 Core Armored Outdoor Fiber Optic Cable Direct Burial Double Jacket

Product Description

Armored Directly Buried 4-144 Core Fiber Optic Cable GYTA53

Key Features

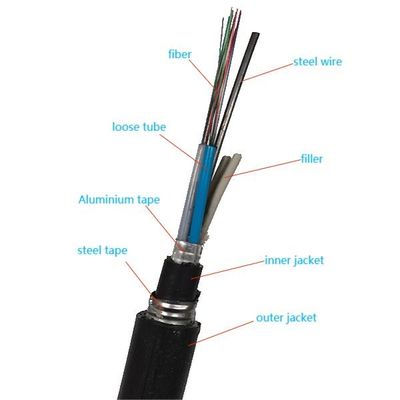

Double Armored Structure
Aluminum tape and steel tape armoring provide excellent crush resistance and mechanical protection for direct burial.
Strong Water Blocking Performance
Jelly-filled loose tubes and laminated APL effectively prevent water ingress and moisture migration.
High Tensile Strength
Central steel strength member ensures stable performance under underground pressure and long-distance laying.
Wide Fiber Count Range
Supports 4 to 144 cores, suitable for backbone and access networks.
Durable PE Jacket
UV resistant and corrosion resistant outer sheath ensures long service life in harsh environments.

Applications

Direct Buried Underground Installation
Ideal for trench and direct burial without additional ducts.
Telecommunication Backbone Networks
Used in long-distance and metropolitan transmission systems.
Outdoor Access Networks
Suitable for FTTH feeder and distribution networks.
Industrial and Utility Communication
Reliable for power, railway, and infrastructure projects.

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket(mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	12.0±0.2	145
6	1+5	6	1.9±0.1	1.4/1.4	1.6	12.0±0.2	145
8	1+5	8	1.9±0.1	1.4/1.4	1.6	12.0±0.2	145
12	1+5	6	1.9±0.1	1.4/1.4	1.6	12.0±0.2	145
24	1+5	6	1.9±0.1	1.4/1.4	1.6	12.0±0.2	145
36	1+6	12	1.9±0.1	1.6/1.6	1.6	13.2±0.2	155
48	1+5	12	2.2±0.1	1.6/1.6	1.6	13.2±0.2	155
60	1+5	12	2.2±0.1	1.61.6	1.6	13.2±0.2	160
72	1+6	12	2.2±0.1	2.0/2.0	1.6	13.2±0.2	180
96	1+8	12	2.2±0.1	1.6/3.5	1.6	15.4±0.2	220
144	1+12	12	2.2±0.1	1.8/6.4	1.6	18.5±0.3	270

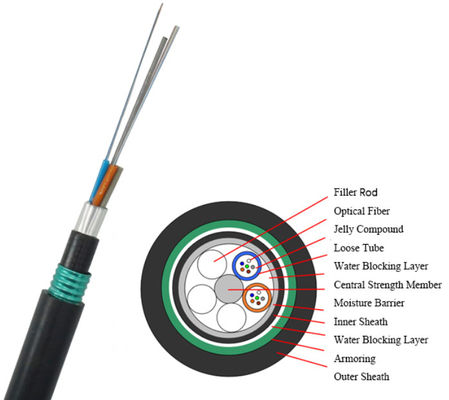

GYTA53( Aluminium polyethylene laminate)

GYTA53 4 to 144 Core Armored Outdoor Fiber Optic Cable Direct Burial Double Jacket 0

GYTA53 4 to 144 Core Armored Outdoor Fiber Optic Cable Direct Burial Double Jacket 1

GYTA53 4 to 144 Core Armored Outdoor Fiber Optic Cable Direct Burial Double Jacket 2

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer with over 10 years of experience in fiber optic cables. Our factory is located in Guangzhou, China.

2. How do you ensure product quality?
All fiber optic cables are strictly tested before delivery. Free samples are available for quality inspection after price confirmation.

3. Do you accept small or trial orders?
Yes. Small orders and trial orders are supported to help customers start new projects.

4. What is your delivery time?
Normally 3–7 working days, depending on order quantity.

5. Do you provide OEM service?
Yes. OEM and customized logo services are available.
