Home /Products/Armoured Fiber Optic Cable/Submarine Underground Fiber Optic Cable GYTA33 Stranded Armored for Underwater Use

Submarine Underground Fiber Optic Cable GYTA33 Stranded Armored for Underwater Use

1km
MOQ
Submarine Underground Fiber Optic Cable GYTA33 Stranded Armored for Underwater Use
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Color: Black Or Customized
Jacket: PE,MDPE, HDPE
Fiber Count: 4-72cores
Installation: Aerial & Duct
Oem: Available
Cable Type: Double Jacket Double Armored
Armored: Aluminun Tape+Steel Wire
Highlight:

armored fiber optic cable for underwater use

,

submarine fiber optic cable GYTA33

,

stranded armored fiber optic cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE FCC SDOC
Model Number: GYTA33
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Submarine Optical Fiber Cable GYTA33



Key Features

  • Full cross section water blocking design for excellent moisture resistance

  • Gel filled loose tube structure provides reliable fiber protection

  • High modulus phosphate steel central strength member with corrosion resistance

  • Double sided corrugated aluminum tape and round steel wire armor for high mechanical strength

  • Strong resistance to compression tension and external impact

  • Suitable for harsh underground and underwater environments

Applications

  • Submarine and underwater cable installation projects

  • Direct buried underground communication networks

  • River crossing lake crossing and coastal engineering projects

  • Long distance backbone and transmission communication systems



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

item
value
Model Number
GYTA33
Type
Outdoor Fiber Optic Cable
Place of Origin
Guangdong,China
Brand Name
jiqian
Number of Conductors
≥ 10
Fiber count
2-288 Cores
Fiber Type
G652D Single mode or as your request
Central strength member
steel wire
Armoured
Al tape
Outer Sheath
PE
Cable Structure
Multi-Loose Tube Aluminum Tape armor
Color
Black or as your need
Application
Direct burial, underground,sea
Certification
CE/ROHS/ISO9001 /ANATEL

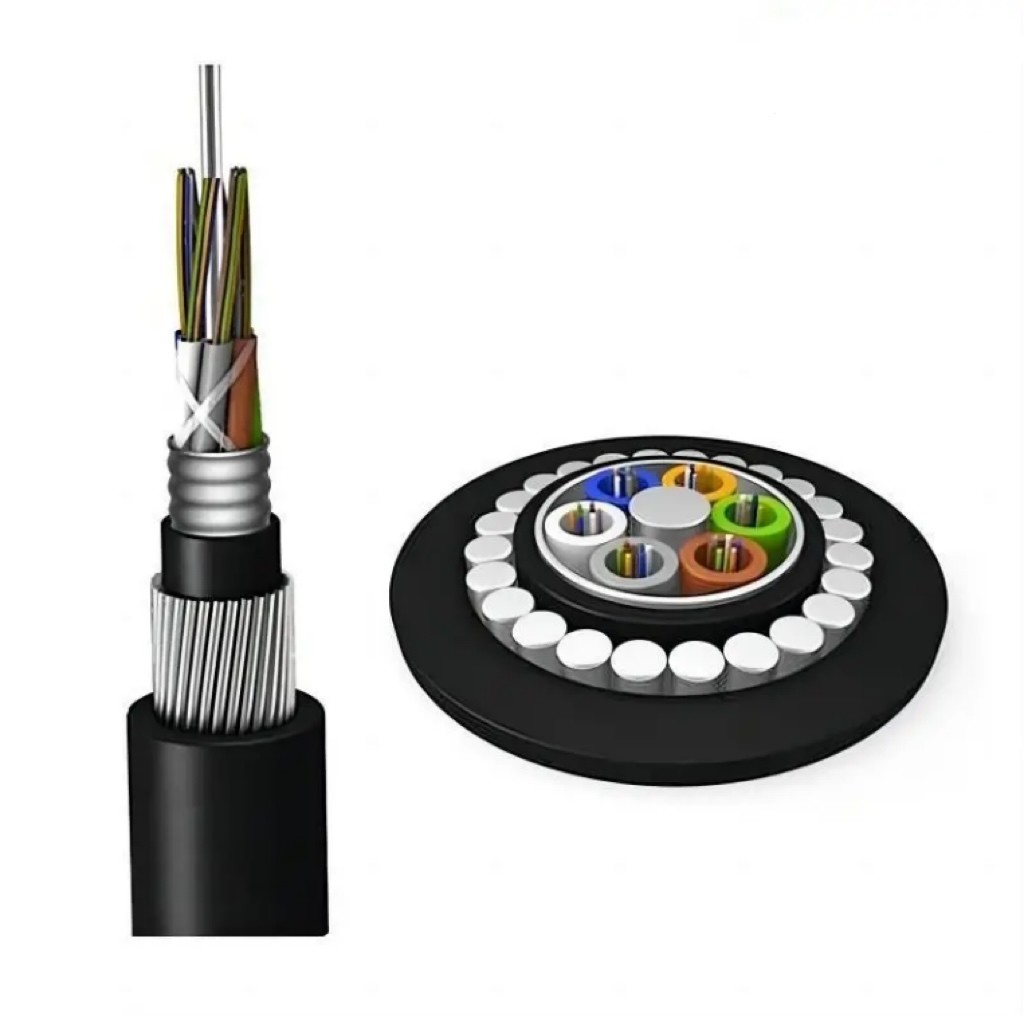

Product Construction

Submarine Underground Fiber Optic Cable GYTA33 Stranded Armored for Underwater Use 0

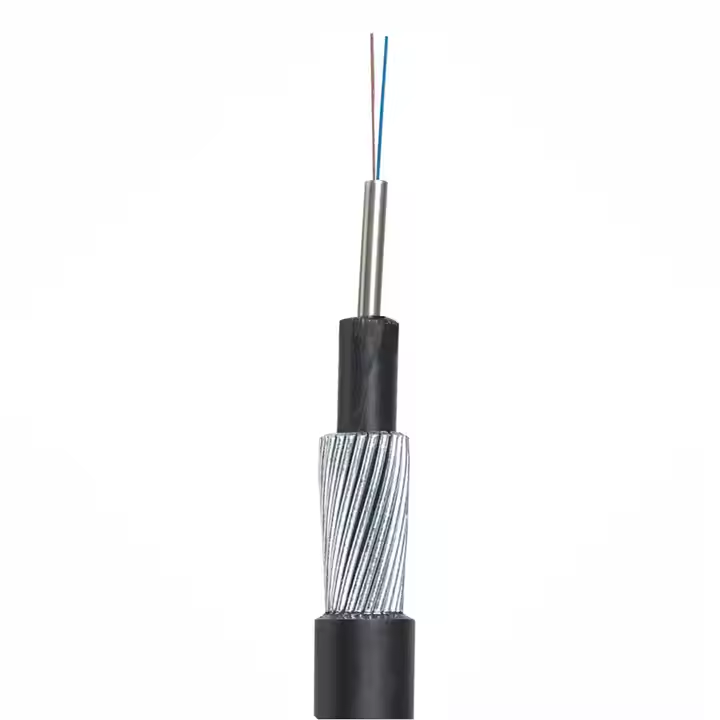

Cable Picture

Submarine Underground Fiber Optic Cable GYTA33 Stranded Armored for Underwater Use 1

Submarine Underground Fiber Optic Cable GYTA33 Stranded Armored for Underwater Use 2



Application

Suitable for directly buired laying or Underwater method



FAQ

1. Is GYTA33 suitable for underwater installation?
Yes. GYTA33 is designed for submarine and underwater laying with full water blocking protection.



2. Can the cable be used for direct burial underground?
Yes. It is suitable for direct buried installation in harsh underground environments.



3. How does the cable resist water and moisture?
The cable uses gel filled loose tubes and full cross section water blocking materials.



4. What provides the mechanical strength of GYTA33?
Double sided corrugated aluminum tape and steel wire armor ensure high tensile and crush resistance.



5. Do you support customized specifications?
Yes. Customized fiber count structure and length are available.
