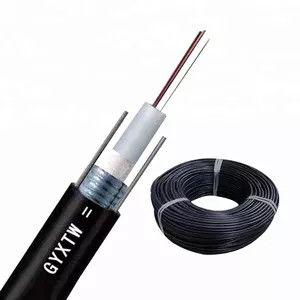

Central Loose Tube GYXTW Outdoor Armored Fiber Optic Cable Single Mode Aerial Duct Installation

1km
MOQ
Central Loose Tube GYXTW Outdoor Armored Fiber Optic Cable Single Mode Aerial Duct Installation
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: PE, MDPE, LSZH, HDPE
Outer Diameter: 6/7/8/9mm
Steel Wire: 0.7/0.8/1.0mm
Fiber Count: 2/4/6/8/12/24/36/48 Core
Structure: Central Loose Tube Cable
Strength Member: Two Steel Wires Strand/FRP Central Strength Member
Installation: Aerial &Duct
Fiber Type: Single Mode Or Multi Mode
Highlight:

single mode armored fiber optic cable

,

outdoor loose tube fiber cable

,

aerial duct fiber optic cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYXTW-4B1
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Per day
Product Description

GYXTW 4 Core Outdoor Aerial Armored Fiber Optic Cable Single Mode Central Loose Tube Steel Tape Armored Communication Cable

Key Features:

  • Central loose tube filled with waterproof compound for strong fiber protection

  • PSP steel tape armor enhances crush resistance and moisture protection

  • Two parallel steel wires provide high tensile strength for aerial installation

  • Excellent mechanical performance and temperature stability

  • Small diameter lightweight structure for easy installation

  • Durable PE outer sheath with strong UV resistance

Applications:

  • Outdoor aerial communication networks

  • Duct and overhead telecom installations

  • Access network and metropolitan area network

  • Rural broadband and FTTH backbone transmission

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8  78 1000/3000 1000/3000 10D/20D
14~24 10  90 1000/3000 1000/3000 10D/20D



Product Image

Central Loose Tube GYXTW Outdoor Armored Fiber Optic Cable Single Mode Aerial Duct Installation 0



Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days



Central Loose Tube GYXTW Outdoor Armored Fiber Optic Cable Single Mode Aerial Duct Installation 1



FAQ

Q1: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 10 years of experience in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China.



Q2: How do you ensure product quality?
A: All cables are fully tested before shipment. Free samples are available after price confirmation.



Q3: Do you accept small orders?
A: Yes, we support small orders and new projects.



Q4: What is your delivery time?
A: Normally 3–7 working days depending on order quantity.



Q5: Do you support OEM service?
A: Yes, we provide OEM service including logo printing and custom cable design.
