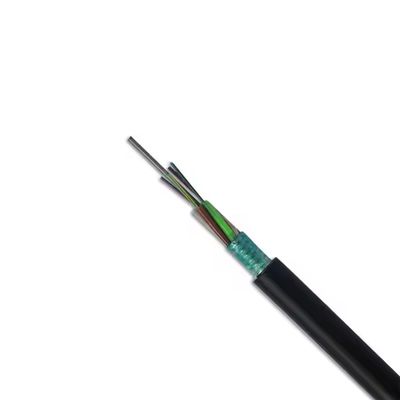

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced

1KM
MOQ
Inquiry for price
Price
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D/G657A1/G657A2
Fiber Count: 2-288 Cores
Jacket: PE,MDPE,LSZH,PVC,HDPE
Color: Black Or Orange Or Customized
Length: 2km , 5Km, Or Customized Length
Warranty: 10 Years
Application: Duct/ Direct Burial
Tube Type: Loose Tube
Highlight:

288 core armored fiber optic cable

,

steel tape reinforced optical cable

,

outdoor underground direct burial fiber
Basic Infomation
Place of Origin: Guangdong China
Brand Name: Jiqian/Customize/ OEM
Certification: CE/ISO9001/RoHS/FCC
Model Number: GYTS-48B1
Payment & Shipping Terms
Packaging Details: Wooden drum or Customized
Delivery Time: 3-5 days, it depends on your quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000KM/month
Product Description

GYTS Armored Underground Fiber Optic Cable 2–48 Core Outdoor Communication Cable



Product Introduction
GYTS fiber optic cable is designed for underground installations, featuring steel tape armor for strong mechanical protection and stable long-distance signal transmission.



Key Features

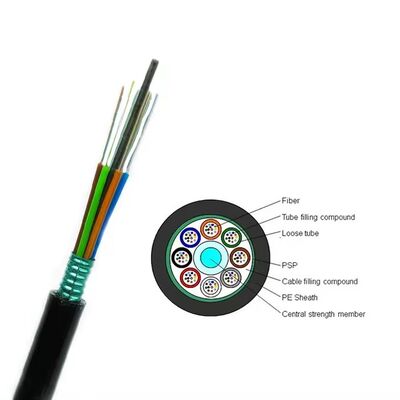

  • Corrugated steel tape armor for crush resistance
  • Loose tube structure for fiber protection
  • Strong tensile performance
  • Durable PE outer sheath

Applications

  • Underground fiber networks
  • Telecom and backbone communication
  • Data center connections
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D




GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 0





GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 1



GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 2





Fiber Tube Color:
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 3

Packaging Details

  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 4
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 5
Exhibition Picture
GYTS Armored Fiber Optic Cable 288 Core Single Mode Outdoor Underground Direct Burial Optical Cable Steel Tape Reinforced 6

FAQ



1. What fiber types are available for GYTS cable?
It supports single-mode and multimode fibers such as G652D, OM1, OM2, OM3, and OM4.



2. How many cores are available?
Common options include 2, 4, 6, 8, 12, 24, 32, and 48 cores.



3. Is GYTS cable suitable for direct burial?
Yes, the steel tape armored structure provides strong protection for underground installation.



4. What environments is this cable designed for?
It is suitable for outdoor underground networks, telecom infrastructure, and backbone communication systems.



5. What is the outer jacket material?
The cable uses a durable PE outer sheath for weather and environmental resistance.
