GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable

1KM
MOQ
Inquiry for price
Price
GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D Single Mode Or As Your Request
Color: Black,Customized
Outsheath: PE/HDPE/MDPE/
Fiber Count: 2-288 Cores
Product Name: Stranded Loose Tube Armored Cable
Installation: Direct Burial/ Duct
Type: Single Mode &Multi Mode
Fiber Brand: YOFC/ Fiber Home/ Corning/ Fujikura
Highlight:

GYTA53 armored fiber optic cable

,

96 core outdoor direct burial cable

,

double aluminum heavy armored cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001/ ROHS/ CE/ FCC
Model Number: GYTA53
Payment & Shipping Terms
Packaging Details: Wooden drum or Customized
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500km per month
Product Description

GYTA53 24 36 48 Core Direct Burial Outdoor Armored Fiber Optic Cable



Product Features
  • Aluminum tape armor with double sheath for high mechanical protection
  • Central steel strength member for excellent tensile performance
  • Gel-filled loose tube for effective water blocking
  • UV-resistant PE outer jacket for long-term outdoor durability
  • Stable structure ensures low loss and reliable transmission
Application Scenarios
  • Direct burial underground installations
  • Telecom backbone and metropolitan networks
  • Long-distance outdoor communication systems
  • Harsh environments requiring high durability and protection

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Technical Parameters

GYTA53( Aluminium polyethylene laminate)
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
13.2
162
3000
1000
3000
1000
32~48
13.8
175
3000
1000
3000
1000
50~72
14.6
205
3000
1000
3000
1000
74~96
16.0
230
3000
1000
3000
1000
98~144
17.6
285
3000
1000
3000
1000
＞144
Avaliable upon customer's request

Cable type Drum

Height

(mm)

Width

(mm)

Inner diameter

(mm)

Length

(km)

 Drum type
GYTA53-12 950 760 400 2 Wooden drum
GYTA53-24 950 760 400 2 Wooden drum
GYTA53-48 1100 760 500 2 Wooden drum
GYTA53-96 1200 760 500 2 Wooden drum

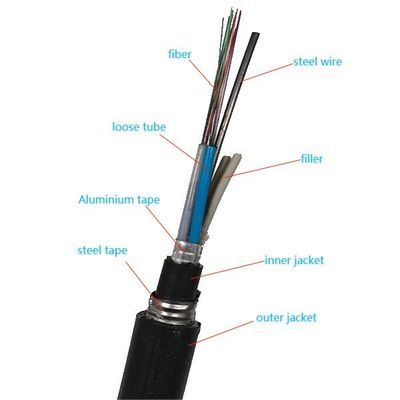

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable 0

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable 1

Packing

1/2/3/4km or customized length export wooden drum

GYTA53 Fiber Optic Cable 48 96 Core Double Aluminum Heavy Armored Single Mode Outdoor Direct Burial Cable 2



FAQ(GYTA53 Direct Burial Cable)


Q1: Is this cable suitable for direct burial?
A: Yes, it features double sheath and armor for direct underground use.

Q2: What is the core count of this cable?
A: This model is 36 core, with other options available on request.

Q3: Does it offer crush and water resistance?
A: Yes, aluminum armor and gel filling provide excellent protection.

Q4: Can we print our brand logo on the cable?
A: Yes, custom brand marking is available on the jacket.

Q5: What is the lead time for bulk orders?
A: Standard delivery is 1–2 weeks after order confirmation.
