GYXTC8S Outdoor Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001
Model Number: GYXTC8S
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Packaging Details: Wooden drum
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500KM Per month

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Application: Overhead Jacket Sheath: PE
Certification: ISO9001 Manufacturer: Yes
Fiber Range: 2-12 Cores Fiber Type: Fiberhome/YOFC
High Light:

GYXTC8S outdoor optical fiber cable

,

ISO9001 GYXTC8S Fiberhome Fiber Optic Cable

,

7.6x14.5mm Outdoor Fiber Optic Cable

Product Description

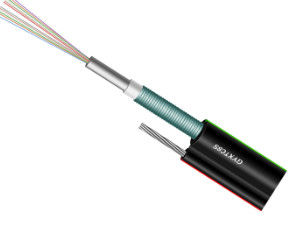

GYXTC8S Figure 8 Single Mode 2-12 Cores Armored Aerial Fiber Optic Cable



GYXTC8S is a typical self supporting outdoor fiber optical cable, suitable for aerial using; The cable with nice moisture resistance performance and crush resistance performance , which is suitable for duct and buried method too.

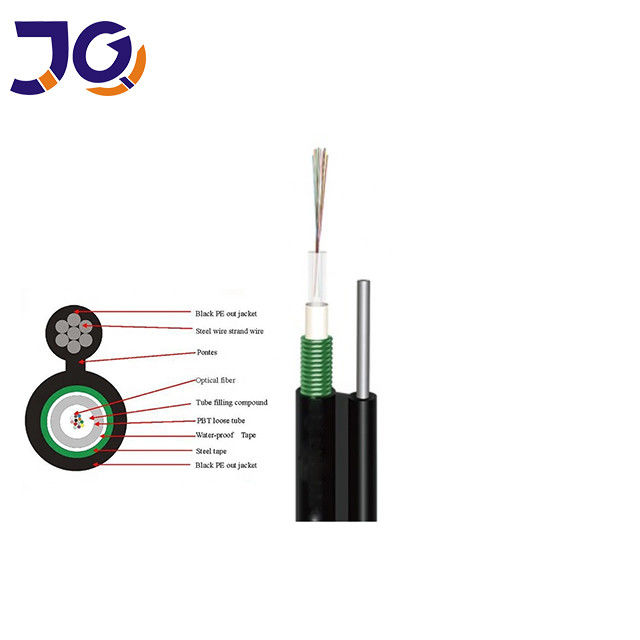

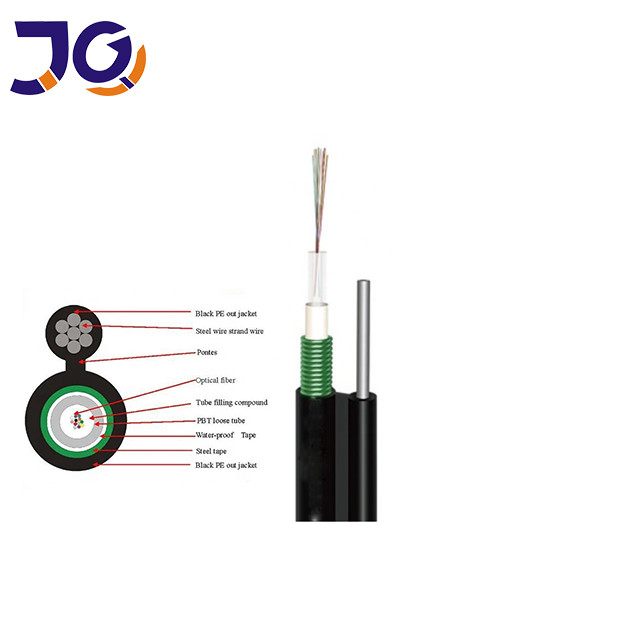

The mental strength member is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.

GYXTC8S Outdoor Fiber Optic Cable 0

FEATURE:

1.single PBT Loose tube, filling jelly, (around strength steel wire members), corrugated steel tape, PE outer sheath and Stranded Steel Member.
2.Compact structure, light weight, steel tape armored excellent crush resisitant performance.
3.Excellent water proof layer, good moisture resistance.
4.Suitable for direct burial.
5.Apply to Long distance communication system, Local aera network system and Subscriber network system.
Fiber
Cores
Cable Diameter (mm)
Cable Net Weight
(Kg/km)
Min. Bending Radius (mm)
Min. Tensile Strength (N)
Min. Crush Pressure (N/100mm)
Static State
Dynamic State
Short Term
Long Term
Short Term
Long Term
2-12
7.6x14.5
120
120
240
3000
1000
1000
300
16-24
8.2x15.1
130
130
260
3000
1000
1000
300
Operating Temperature
-40 - +70Degrees
