Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1KM | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500KM Per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | GYXTC8S |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
|---|---|---|---|
| Application: | Overhead | Jacket Sheath: | PE |
| Certification: | ISO9001 | Manufacturer: | Yes |
| Fiber Range: | 2-12 Cores | Fiber Type: | Fiberhome/YOFC |
| High Light: | GYXTC8S outdoor optical fiber cable,ISO9001 GYXTC8S Fiberhome Fiber Optic Cable,7.6x14.5mm Outdoor Fiber Optic Cable |
||
Product Description

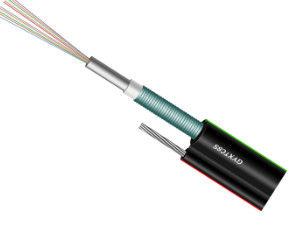

GYXTC8S Figure 8 Single Mode 2-12 Cores Armored Aerial Fiber Optic Cable
GYXTC8S is a typical self supporting outdoor fiber optical cable, suitable for aerial using; The cable with nice moisture resistance performance and crush resistance performance , which is suitable for duct and buried method too.
The mental strength member is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
|
Fiber
Cores |
Cable Diameter (mm)
|
Cable Net Weight
(Kg/km) |
Min. Bending Radius (mm)
|
Min. Tensile Strength (N)
|
Min. Crush Pressure (N/100mm)
|
|||
|
Static State
|
Dynamic State
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
|
2-12
|
7.6x14.5
|
120
|
120
|
240
|
3000
|
1000
|
1000
|
300
|
|
16-24
|
8.2x15.1
|
130
|
130
|
260
|
3000
|
1000
|
1000
|
300
|
|
Operating Temperature
|
-40 - +70Degrees
|
|||||||
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
