Features

Specifications

Fiber Type: G657A1/A2/G652D/G657A1/G657A2

Oem: Available

Application: Aerial

Structure: Unitube

Operating Temperature: -40 ~ +60 C

Sheath Material: HDPE/MDPE

Installation: Aerial

CORE: 2 4 6 8

Highlight:

FRP 4core Outdoor Fiber Optic Cable

HDPE Sheath Outdoor Fiber Optic Cable

HDPE Sheath frp fiber optic cable

Basic Infomation

Place of Origin: CHINA

Brand Name: jiqian

Certification: ISO

Model Number: GYFXTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 2-4day

Payment Terms: Western Union, T/T, L/C

Supply Ability: 100km per 2 day

Gallery

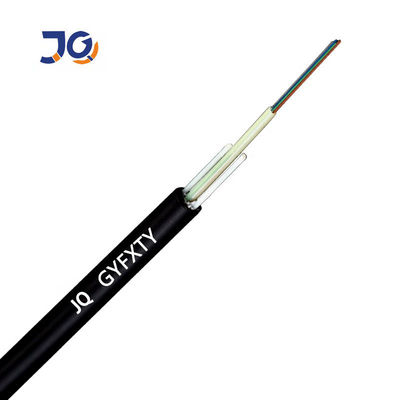

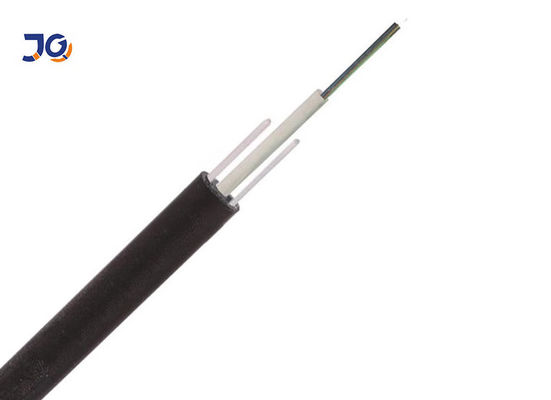

HDPE Sheath GYFXTY FRP 4core Outdoor Fiber Optic Cable

Product Description

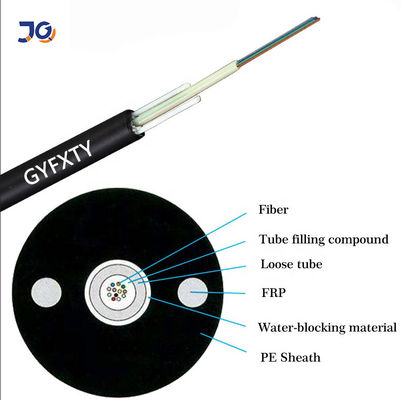

The fibers, 250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.15NA
Cable Cut-off Wave length		≤1260nm	≤1480nm

Structure and Technical Specifications OF GYFXTY :

Fiber count	Cable diameter(mm)	Nominal weight(KGS)	Allowable Tensile Load(mm)		Allowable Crush Resistance(N/100m)
			Short term	Long term	Short term	Long term
2-12	6.0-9.0	60	1500	600	1500	600

Feature:

1.Good mechanical and temperature resistant performance.
2.Uni-tube gel-filled construction for superior fiber protection.
3.Two parallel steel wires ensure tensile strength.
4.PE sheath protects cable from ultraviolet radiation.
5,Light weight and small diameter, easy to installation and operation.

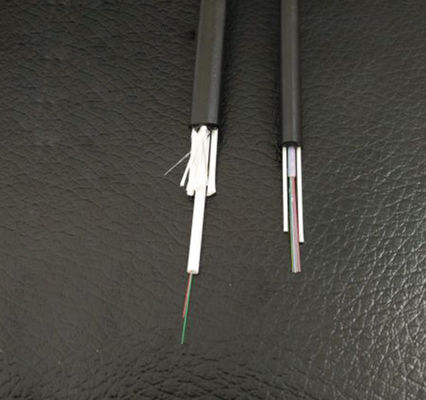

HDPE Sheath GYFXTY FRP 4core Outdoor Fiber Optic Cable 2

LCD Delivery	<10000m	<20000m	<50000m	>100000m
	25days	22days	18days	10days

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact. HDPE Sheath GYFXTY FRP 4core Outdoor Fiber Optic Cable 3
