ISO9001 GYTC8A Self Supporting Stranded Loose Tube Fiber Cable

Product Description

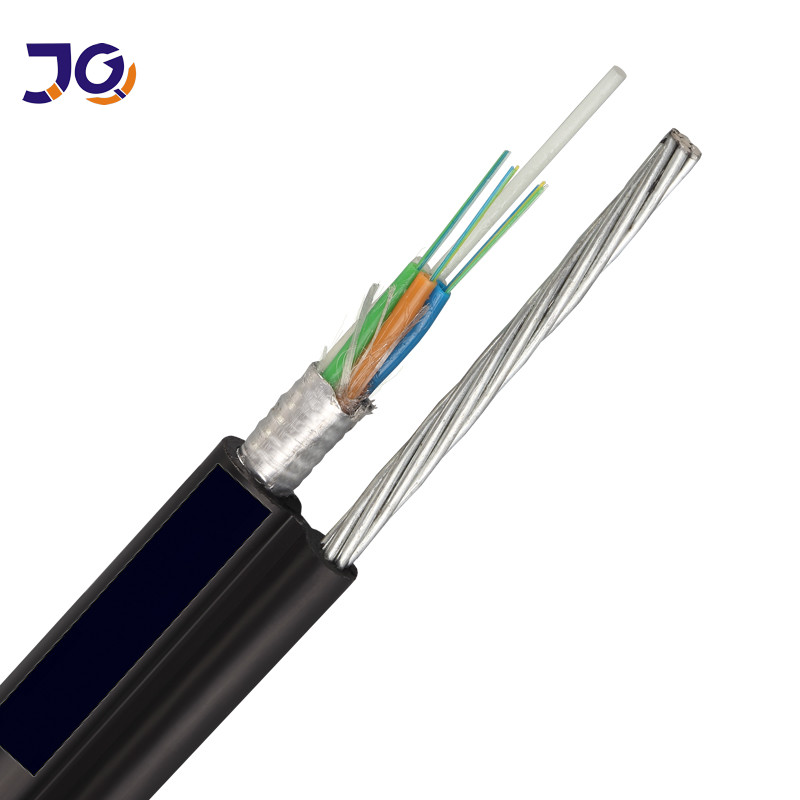

GYTC8A Self-Supporting Stranded Loose Tube Cable Figure 8 Optical Fiber Cable



Features
• The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• Optical cable has good mechanical properties and temperature characteristics

• The loose tube material itself has good hydrolysis resistance and high strength

• The tube is filled with special grease to protect the optical fiber critically

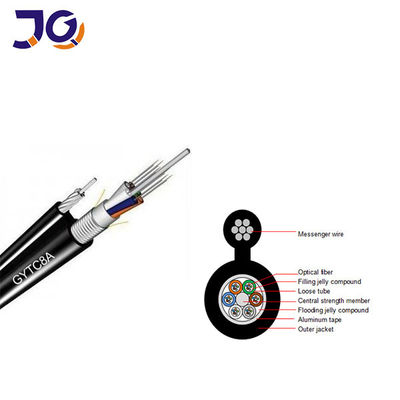

• Use the following measures to ensure the waterproof performance of the optical cable:

-Single steel wire center reinforcement core

-Loose tube filled with special waterproof compound

-Complete cable core filling

-Plastic coated aluminum tape (APL) moisture barrier



Structural parameters:

Optical cable model (Increments of 2 fibers)	Number of fibers	Number of loose tube	Filling rope number	Reference cable weight (kg/km)	Tensile strength long/short term(N/100mm)	Crush resistance long/short term (N/100mm)	Bending radius static/dynamic (mm)
GYTC8A-2~6	2~6	1	4	158	According to the diameter of the suspension wire	300/1000	10D/20D
GYTC8A-8~12	8~12	2	3	158
GYTC8A-14~18	14~18	3	2	158
GYTC8A-20~24	20~24	4	1	158
GYTC8A-26~30	26~30	5	0	158
GYTC8A-32~36	32~36	6	0	167
GYTC8A-38~48	38~48	4	1	172
GYTC8A-50~60	50~60	5	0	172

Storage and use temperature: -40℃ to +70℃.



Optical characteristic

Type	attenuation (+20℃)				bandwidth		Numerical aperture	Optical cable cut-off wavelength
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---



Application: overhead



FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
