Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYTA-24B1 |
|
Detail Information |
|||
| Fiber Type: | G652D | Color: | Black |
|---|---|---|---|
| Jacket: | PE,MDPE | Fiber Count: | 2-288 Cores |
| Product Name: | Stranded Loose Tube Armored Cable | Length: | 2km Or Customized Length |
| Installation: | Aerial & Duct | Oem: | Available |
| Application: | Telecommunication | Armored Type: | Aluminum Tape |
| High Light: | 24Cores Outdoor Fiber Optic Cable,customized length Outdoor Fiber Optic Cable,24Cores outdoor rated fiber optic cable |
||
Product Description
Aerial Stranded Armored Aluminum Tape 24 Cores Outdoor Fiber Optic Cable GYTA
Product Description

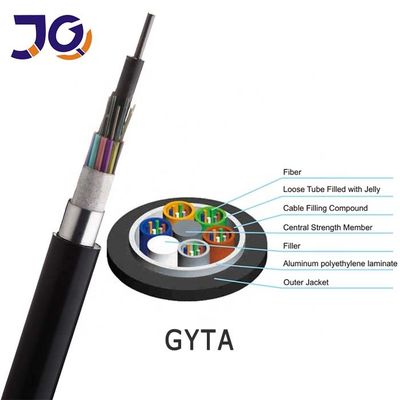

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect it from water ingress. After the cable is completed with PE outer sheath.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Suitable for directly buired laying method
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Item | GYTA2-288CORES | Stranded Armored Aluminum Tape Fiber Optic Cable GYTA | ||
| No.of cable | 12core | 24core | 48core | |
| Fiber Model | G.652D | |||
| Design (StrengthMember+Tube&Filler) |
1+5 | |||
| Central Strength Member |
Material | Steel Wire | ||
| Diameter (10.5)mm | 1.4 | |||
| Loose Tube | Material | PBT | ||
| Diameter ( ±0.06)mm | 1.72 | 1.72 | 2 | |
| Thickness (±0.03) mm | 0.3 | 0.3 | 0.32 | |
| The Max.Core No./Tube | 6 | 6 | 12 | |
| Filler Rope | Material | PE/HDPE | ||
| Diameter ( 0.06)mm | 1.7 | 1.7 | 2 | |
| NO. | 3 | 1 | 1 | |
| Moisture Barrier | Material | Polymer Coated Aluminum Tape | ||
| Thickness (±0.03) mm | 0.2 | |||
| Outer sheath |
Material | MDPE | ||
| Thickness (±0.2) mm | 0.9 | |||
| Armoring | Material | Polymer Coated Steel Tape | ||
| Thickness (±0.2)mm | 0.22 | |||
| Water Bloaking Layer |
Material | Filling Compound | ||

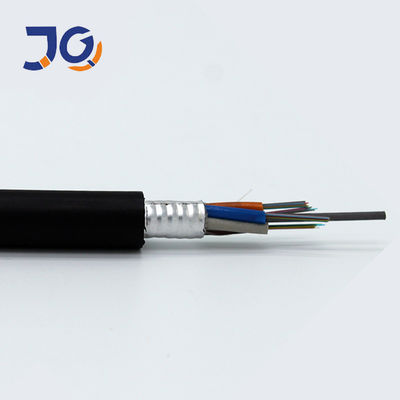

Product show
Related Products
Packing
1/2/3/4km or customized length export wooden drum
