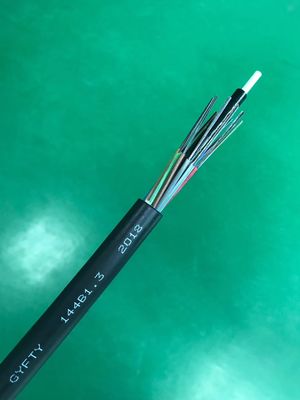

Multi Mode Gyfty Gyty 144 Core Outdoor Fiber Optic Cable

Contact Now

Multi Mode Gyfty Gyty 144 Core Outdoor Fiber Optic Cable

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC

Detail Information
Model Number:	GYFTY	Fiber Count:	2-288 Cores
Fiber Type:	Single Mode/multi Mode	Jacket:	PE
Color:	Black	Product Name:	Outdoor Fiber Optic Cable
Length:	2km Or Customized Length	Structure:	Strand Loose Tube
Installation:	Aerial & Duct	Number Of Conductors:	≥ 10
High Light:	Gyfty Outdoor Fiber Optic Cable , 250µm Outdoor Fiber Optic Cable

Product Description

Single Mode/Multi Mode Gyfty/Gyty Outdoor Strand 144 Core Fiber Optic Cable

Product Description

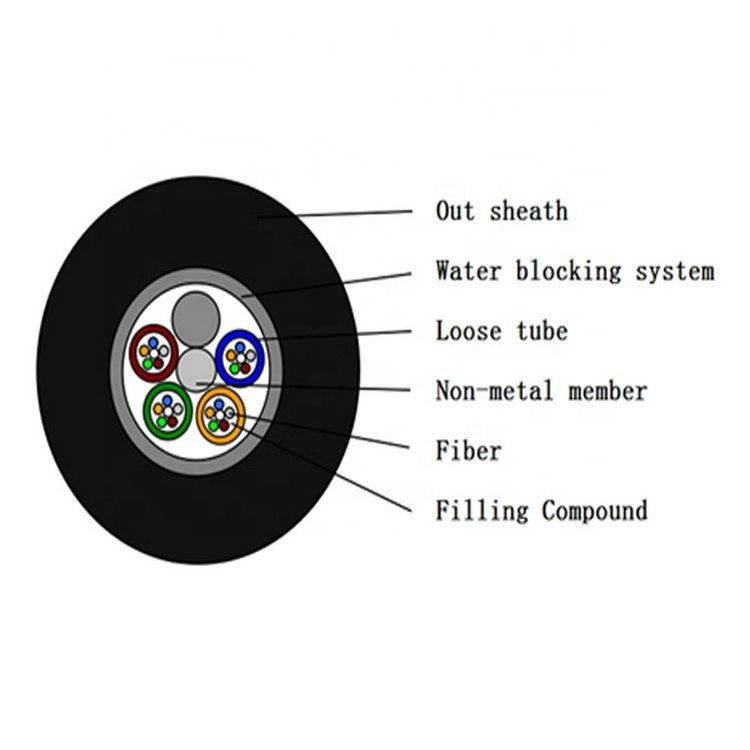

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.

5. jelly-filled, fiber contained loose tube and PP filler

6. water blocking tape, PE outer sheath

Application

GYFTY Fiber Optic Cable is a type of fiber cable which is widely used in areas with excessive thunder, power transmission system, and high electromagnetic interface. It is referred to as a self-support fiber cable that doesn’t require any external support due to its central metallic part. That outstanding feature has rapidly enhanced its market demand. As at now, GYFTY fiber optic cable is one of the most suitable fiber optic cables to be used in areas of high-voltage power.

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHzkm

2200MHz:km

@1300nm

21000MHz-km

2600MHzkm

NumericalAperture

0.200+0.015NA

0.275+0.015NA

CableCut-

offWavelengthλcc

≤1260nm

Cable Parameters

Items		Specifications
Fiber Count		144 fibers
Colored Coating Fiber	Dimension	250μm+15μm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	2.0mm±0.2mm
Strength Member	Material	FRP or steel wire
Outer Jacket	Dimension	14.7mm±0.2mm
	Material	PE
	Color	Black

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
