8 12 Core Gyfxty Outdoor Fiber Optic Cable HDPE Sheath

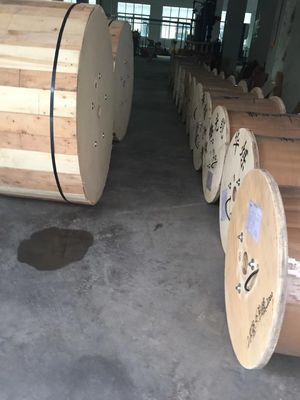

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYFXTY

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial Structure: Unitube
Operating Temperature: -40 ~ +60 C Sheath Material: HDPE/MDPE
Installation: Aerial CORE: 4 6 8 12
High Light:

Gyfxty Outdoor Fiber Optic Cable

,

HDPE Outdoor Fiber Optic Cable

Product Description

Manufacturing 2 4 6 8 12 Core Fiber Optic Cable Gyfxty Optical Outdoor Cable

GYFXTY aerial FRP Strength Member Single mode Outdoor fiber optic cable

GYXFTY 1-12 Outdoor Fiber Optic Cable

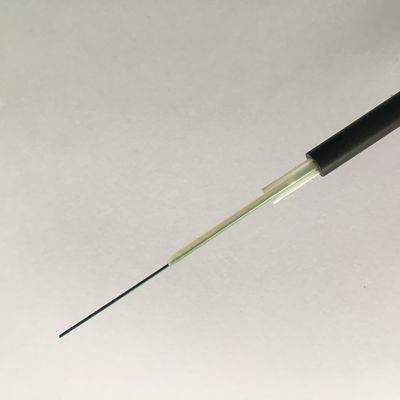

8 12 Core Gyfxty Outdoor Fiber Optic Cable HDPE Sheath 0

Product Name
Fiber Optic Cable
Fiber Count
1-12 Fibers
Construction
Central Loose Tube
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
PE(Black)
Weight
60kg/km
Application
Aerial and Duct
Jacket Diameter
5.5 mm 6.0 mm 6.5 mm 7.0 mm
Cable Length
3Km/Drum
Test Wavelength
1310/1550nm
Operation Temperature
-20℃ to +60℃
8 12 Core Gyfxty Outdoor Fiber Optic Cable HDPE Sheath 1
Optical Characteristics:


G.652
G.655
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm


≤3.0dB/km
≤3.0dB/km
@1300nm


≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km


@1550nm
≤0.22dB/km
≤0.23dB/km


Bandwidth(Class A)
@850nm


≥500MHz·km
≥200MHz·km
@1300nm


≥1000MHz·km
≥600MHz·km
Numerical Aperture


0.200±0.015NA
0.275±0.15NA
Cable Cut-off Wave length
≤1260nm
≤1480nm



Structure and Technical Specifications OF GYFXTY :
Fiber count
Cable diameter(mm)
Nominal weight(KGS)
Allowable Tensile Load(mm)
Allowable Crush Resistance(N/100m)
Short term
Long term
Short term
Long term
2-12
6.0-9.0
60
1500
600
1500
600

Feature:

1.Good mechanical and temperature resistant performance.
2.Uni-tube gel-filled construction for superior fiber protection.
3.Two parallel steel wires ensure tensile strength.
4.PE sheath protects cable from ultraviolet radiation.
5.Light weight and small diameter, easy to installation and operation.

company profile:

 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.



FAQ:


1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.8 12 Core Gyfxty Outdoor Fiber Optic Cable HDPE Sheath 2
