HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYXTC8S-4B1

Detail Information

Fiber Type: YOFC/Fiberhome Or As Request Color: Black
Messenger Wire: 7*1.0mm Stranded Steel Wire/2mm Steel Wire Structure: Figure 8
Type: Singlemode & Multimode Jacket: HDPE,PE,MDPE
Oem: Available Installation: Outdoor Aerial Self-supporting
Product Name: Outdoor Optic Fiber Cable/Figure 8 Cable Length: 2km Or Customized Length
Fiber Count: 2/4/6/8/12/24 Core
High Light:

MDPE Aerial Fiber Optic Cable

,

GYXTC8S Aerial Fiber Optic Cable

Product Description

4core Outdoor Aerial Self-supporting Fiber Optic Cable GYXTC8S

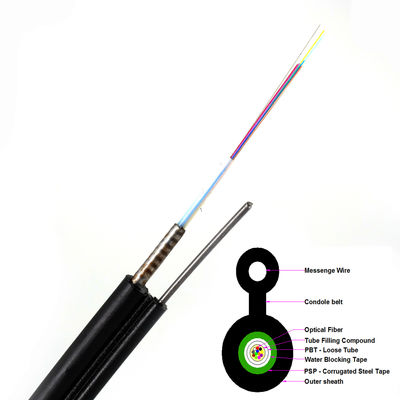

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with 2mm/3mm steel wires or stranded steel wire , as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.



Features

1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof

HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S 0







Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Cores
Cable
Diameter (mm)
Cable
Net Weight
(Kg/km)
Min. Bending Radius
(mm)
Min. Tensile Strength
(N/100mm)
Min. Crush Pressure
(N/100mm)
Static State
Dynamic State
Short Term
Long Term
Short Term
Long Term
2-12
7.6x14.5
120
120
240
3000
1000
1000
300
16-24
8.2x15.1
130
130
260
3000
1000
1000
300
Operating Temperature
-40 - +70Degrees



Picture Show

HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S 1

HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S 2

HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S 3





HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S 4





Packing & Delivery

HDPE Jacket 4 Core Aerial Fiber Optic Cable Fig Eight GYXTC8S 5





FAQ

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.



2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



3.What is your warranty period?

25 years for fiber optic cable



4.What is your delivery time?

Usually within 3-5 working days



5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
