Home /Products/Figure 8 Fiber Optic Cable/GYTC8S Figure 8 Fiber Optic Cable 24 48 Core Single Mode Outdoor Aerial Self Supporting Steel Messenger

GYTC8S Figure 8 Fiber Optic Cable 24 48 Core Single Mode Outdoor Aerial Self Supporting Steel Messenger

1 Kilometer
MOQ
Inquiry for price
Price
GYTC8S Figure 8 Fiber Optic Cable 24 48 Core Single Mode Outdoor Aerial Self Supporting Steel Messenger
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYTC8S- 24 48 Core
Fiber Type: G652D Single Mode Or As Your Request
Jacket: PE,MDPE,LSZH,PVC,HDPE
Central Strength Member: Steel Wire
Package: Wooden Drum/Customized
Length: 3000M/drum, Or As Required
Application: Telecom/network
Single Mode: G.652D/ G657A2
Highlight:

24 core figure 8 fiber optic cable

,

48 core single mode aerial cable

,

steel messenger self-supporting fiber cable
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS/FCC
Model Number: GYTC8S/GYFTC8S
Payment & Shipping Terms
Packaging Details: Wooden drum or Customized
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8000 kilometers per month
Product Description

GYTC8S Outdoor Figure 8 Aerial Fiber Optic Cable Steel Wire Armored Self Supporting Communication Cable



Product Introduction
GYTC8S is a self-supporting outdoor aerial fiber optic cable designed with a stranded loose tube structure supporting 1–144 fibers. It integrates a steel messenger wire and corrugated steel tape armor for strong mechanical protection and stable long-distance transmission. Water-blocking materials and a durable PE sheath ensure reliable performance in outdoor environments.



Key Features
• Figure-8 self-supporting design with steel messenger wire
• Corrugated steel tape armor for crush and impact resistance
• Central steel strength member for high tensile strength
• Water-blocking structure for enhanced moisture protection
• Durable PE outer sheath for outdoor reliability



Applications
• Outdoor aerial fiber optic installation
• Long-distance telecommunication networks
• LAN and access network deployment
• CATV and computer communication systems

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

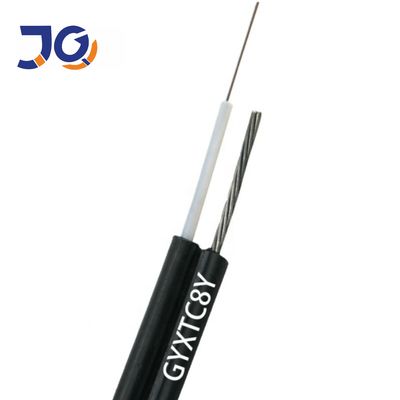

GYTC8S Figure 8 Fiber Optic Cable 24 48 Core Single Mode Outdoor Aerial Self Supporting Steel Messenger 0

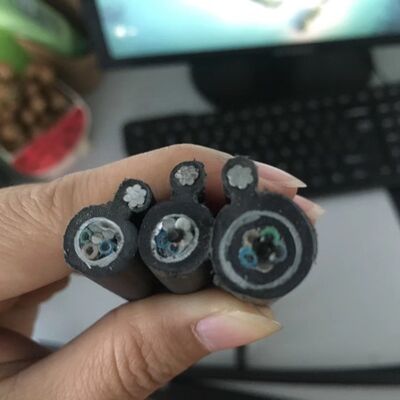

GYTC8S Figure 8 Fiber Optic Cable 24 48 Core Single Mode Outdoor Aerial Self Supporting Steel Messenger 1

Certification:

GYTC8S Figure 8 Fiber Optic Cable 24 48 Core Single Mode Outdoor Aerial Self Supporting Steel Messenger 2




FAQ – GYTC8S Aerial Fiber Optic Cable



Q1: What is GYTC8S fiber optic cable used for?
A: It is mainly used for outdoor aerial communication networks and long-distance transmission.



Q2: What fiber counts are available?
A: The cable supports 1 to 144 cores depending on project requirements.



Q3: Does the cable have mechanical protection?
A: Yes, it features corrugated steel tape armor and a steel messenger wire for strong protection.



Q4: Is GYTC8S suitable for harsh outdoor environments?
A: Yes, the PE sheath and water-blocking structure provide excellent weather resistance.



Q5: Can the cable be customized?
A: Yes, fiber count, cable length, and packaging can be customized for different projects.
