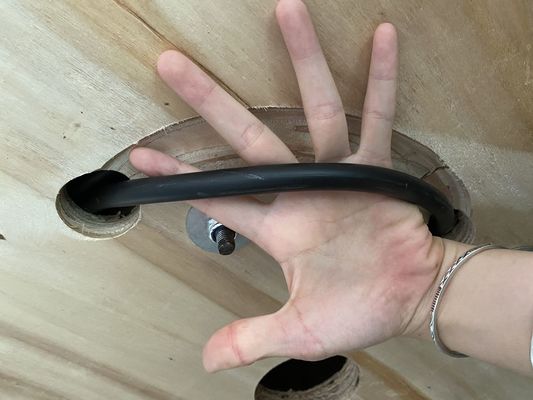

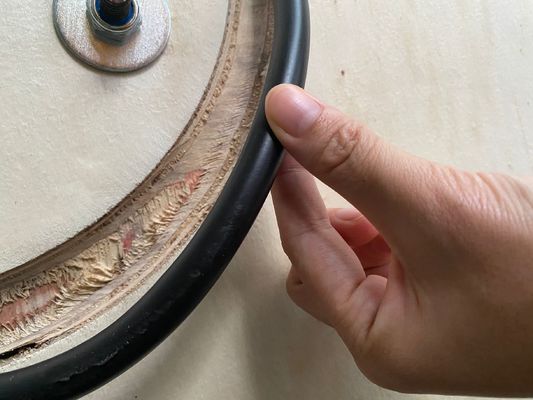

Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553

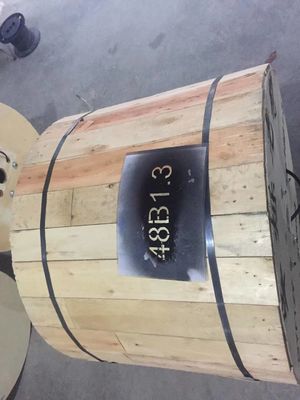

| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | GYTA |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | Aerial/duct | Number Of Conductors: | 4 6 8 12 |
| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| Central Strength Member: | Aluminium Wires | ||
| High Light: | Underground Outdoor Fiber Optic Cable,GYTA Outdoor Fiber Optic Cable,Aerial Outdoor Fiber Optic Cable |
||
Product Description
Characteristics:
3. The PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance.
4. Use the following measures to ensure the waterproof performance of the optical cable:
a) Single steel wire center reinforcement;
b) Fill the loose tube with special fiber paste;
c) 100% cable core filling;
d) GYTA double-sided plastic coated aluminum tape (APL) improves the moisture resistance of optical cables;
e) Good water-blocking material prevents longitudinal water seepage of the optical cable.
|
Optical Characteristics
|
|||||
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
||
|
Attenuation
(+20℃) |
'@850nm
|
≤3.0 dB/km
|
≤3.0 dB/km
|
||
|
'@1300nm
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|||
|
'@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|||
|
'@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|||
|
Bandwidth
(Class A) |
'@850nm
|
≥500 MHz·km
|
≥200 MHz·km
|
||
|
'@1300nm
|
≥1000 MHz·km
|
≥600 MHz·km
|
|||
|
Numerical Aperture
|
0.200±0.015NA
|
0.275±0.015NA
|
|||
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|||
| Tensile Strength | Long Term (N) | 1000 |
| Short Term (N) | 3000 | |
| Crush Resistance | Long Term (N) | 1000 |
| Short Term (N) | 3000 | |
| Bending Radius | Static (mm) | 10D |
| Dynamic (mm) | 20D |
|
Fiber Count
|
Dia
(mm)
|
Weight
(kg/km)
|
Allowable Tensile Strength(N)
|
Allowable Crush Resistance
(N/100mm)
|
||
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
|
2-30
|
9.5
|
86
|
≥1500
|
≥600
|
≥1000
|
≥300
|
|
32-60
|
10.2
|
99
|
||||
|
62-72
|
10.9
|
123
|
||||
|
74-84
|
12.2
|
148
|
||||
|
86-96
|
12.2
|
148
|
||||
|
98-120
|
14.0
|
183
|
||||
|
122-144
|
14.5
|
220
|
||||
|
146-216
|
16.1
|
229
|
||||
|
218-300
|
18.5
|
290
|
||||
