Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53

Minimum Order Quantity : 2km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 50KM Per days
Place of Origin: Guangdong ,China Brand Name: JQ/OEM/customerized
Certification: ISO9001/ ROHS /CE Model Number: GYTC8S53/GYTC8A53/GYFTC8S53/GYTC8S

Detail Information

Fiber Brand: YOFC/Fiberhome/corning Jacket Color: Black
Fiber Type: Singlemode/G652D OEM: Acceptable
Application: Aerial Fiber Optic Cable Length: 3km
Fiber Count: 2-96 Cores Armored: Double Armored
Jacket Material: PE, HDPE,MDPE,LSZH Tube Materail: PBT
High Light:

Armored Figure 8 Fiber Optic Cable

,

Singlemode Figure 8 Fiber Optic Cable

,

GYTC8A53 Figure 8 Fiber Optic Cable

Product Description

Self-Supporting  DADJ Aerial Fig 8 GYTC8S53 Outdoor Fiber Optic Cable



Features
Loose tube filling compound
100% cable core filling,

PSP enhancing moisture-proof

Self-Supporting fiber optic cable

Double Armored Double Sheath(DADJ)

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Steel wire or FRP used as the central strength member

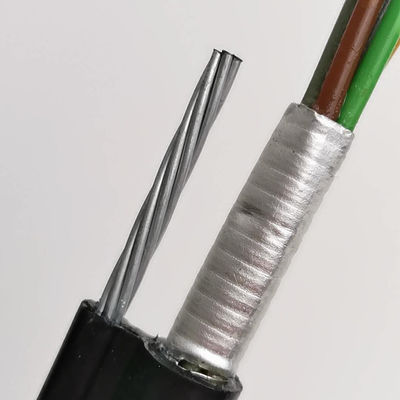

Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53 0







Technical Parameters

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm     ≤3.0 dB/km ≤3.3 dB/km
1300 nm     ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm     ≥500 MHz·km ≥200 Mhz·km
1300 nm     ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture     0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm




Structure and Technical Specifications (7×1.0mm-Steel Stranded Wire)

Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max No. of
(Tubes+fillers)
Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)
Short Term Long Term Short Term Long Term
4~36 12x19.2 230 12 6 4000 2000 3000 1000
38~72 14x19.2 260 12 6 4000 2000 3000 1000
74~96 14x19.2 310 12 6 4000 2000 3000 1000









Samples Picture

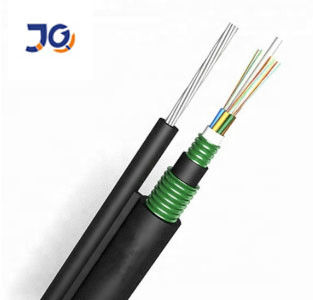

Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53 1

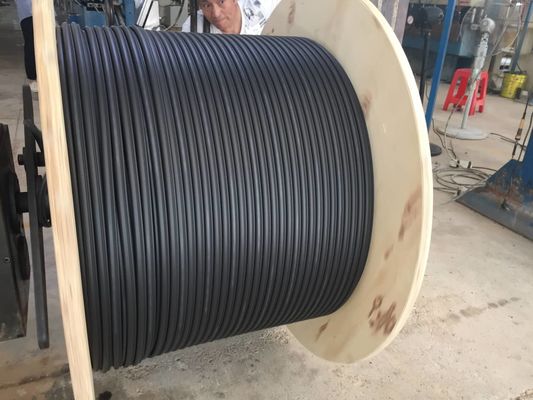

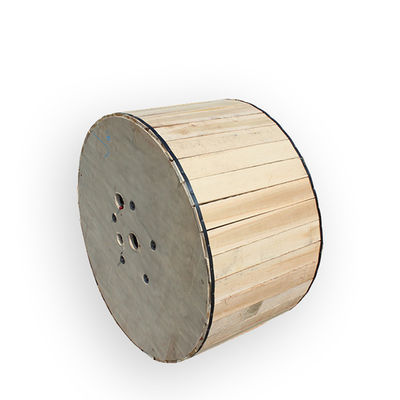

Packing & Delivery

Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53 2



Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53 3



customers choose

Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53 4

Related products



Singlemode Double Armored Figure 8 Fiber Optic Cable GYTC8A53 5





FAQ

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.



2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



3.What is your warranty period?

25 years for fiber optic cable



4.What is your delivery time?

Usually within 3-5 working days



5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
