Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter
Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter
Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter
Contact Now

Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter

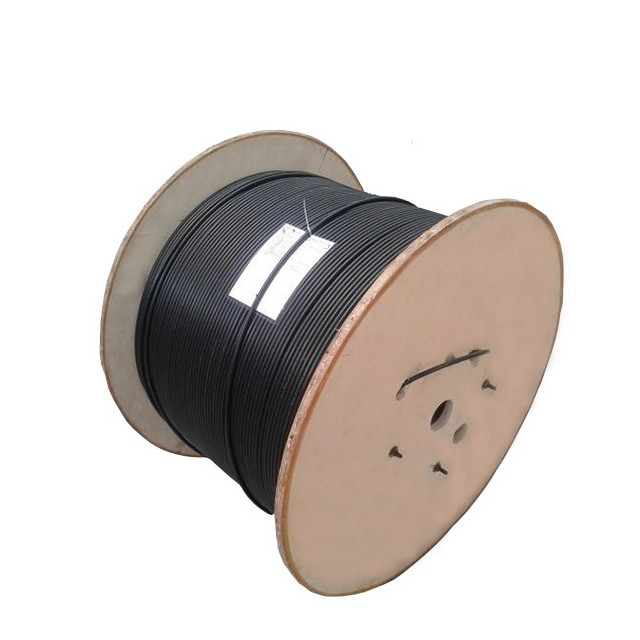

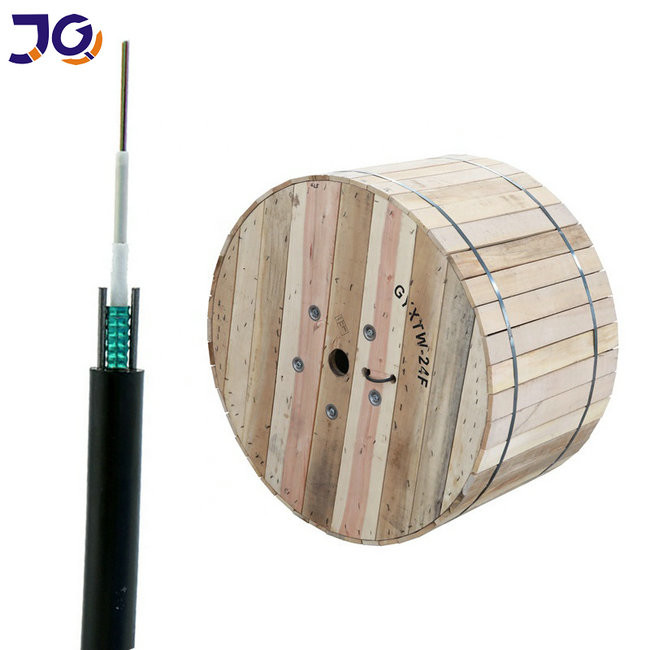

Minimum Order Quantity : 1km Packaging Details : 1/2/3/4/5 km in one wooden drum
Delivery Time : 3-5dyas Payment Terms : L/C, T/T, Western Union
Supply Ability : 200 KM Per day
Place of Origin: Guangdong China Brand Name: JQ/OEM
Certification: ISO9001/CE/ROHS Model Number: GYXTW-8B1

Detail Information
Jacket Material: PE, HDPE,MDPE,LSZH Outer Diameter: 8.0mm/6.0mm/7.0mm/9.0mm
Steel Wire: 1.0mm/0.7mm Color: Black
Fiber Type: Single Mode G652D Fiber Count: 2/4/6/8/12/24 Core
Structure: Unitube Strength Member: Two Steel Wire
Installation: Aerial &Duct Product Name: Central Loose Tube Outdoor Optic Fiber Cable
Fiber: G652,single Mode Or Multimode Key Words: Fiber Cable
High Light:

Armored Aerial Fiber Optic Cable

,

Unitube Aerial Fiber Optic Cable

,

9.0mm Diameter Aerial Fiber Optic Cable

Product Description

GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable

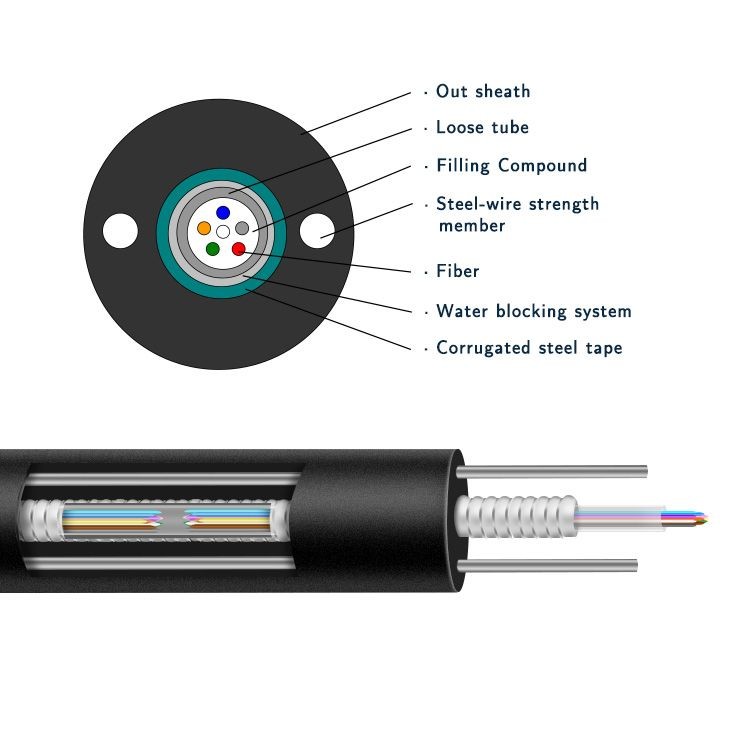

Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.



Fiber Parameter

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24



Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black



Mechanical and Environmental Characteristics

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃

-40~+70





Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter 0

Feature.

◆Low dispersion and attenuation
◆Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
◆The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
◆Operating Temperature : -40~+60 ℃









Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter 1

Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter 2

Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter 3







product details

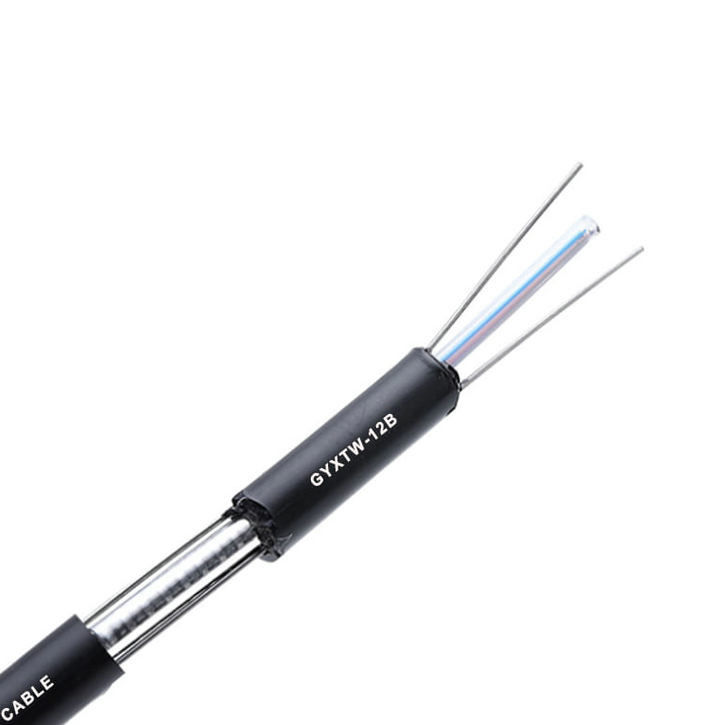

Model GYXTW
Product Name

GYXTW Central Tube Type optical fiber communication cables

GYXTW Uni-Tube Armored Single Mode 6 Core 8 Core Fiber Optic Cable
grouping Optical Fiber Cable
Structure G.652D, PBT,STRENGTH MEMBER,CORRUGATED STEEL-PLASTIC COMPOSITE, PE JACKET
Fiber Type G.652D
Outer Sheath Color BLACK
some 2-12
Outer Jacket PE






Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8  60 600/1500 1000/3000 10D/20D





Application

Usable in Duct / Aerial
