Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC Model Number: GYTC8S-24B1/48B1

Detail Information

Fiber Type: YOFC/Fiberhome Or As Request Color: Black
Messenger Wire: 7*1.0mm Stranded Steel Wire Structure: Figure 8
Type: Singlemode Jacket: PE
Oem: Available Installation: Outdoor Aerial Self-supporting
Product Name: Outdoor Optic Fiber Cable/Figure 8 Cable Length: 2km Or Customized Length
Fiber Count: 2/4/6/8/12/24 Core Packing: 2 Km/wooden Drum
High Light:

Gytc8s Aerial Optical Fiber Cable

,

48 Core Aerial Optical Fiber Cable

,

Self Supporting Aerial Optical Fiber Cable

Product Description

Self-Supporting 24/48 Core Aerial Optical Fiber Cable Gytc8s



Description:

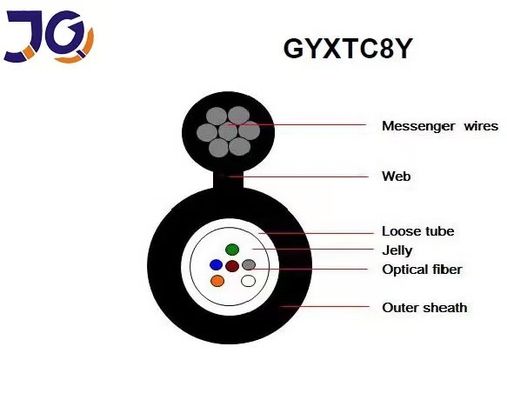

Loose tube style, a figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.



Features:1.G652D fiber information after cabled
2. Mode field diameter (1310nm): 9.2m0.4m
3. Mode field diameter (1550nm): 10.4m0.8m
4. Cut off wavelength of cabled fiber (cc): 1260nm
5. Attenuation at 1310nm: 0.36dB/km
6. Attenuation at 1550nm: 0.22dB/km
7. Bending loss at 1550nm (100 turns, 30mm radius): 0.05dB
8. Dispersion in the range 1288 to 1339nm: 3.5ps/ (nm•km)
9. Dispersion at 1550nm: 18ps/ (nm•km)
10. Dispersion slope at zero dispersion wavelength: 0.092ps/(nm2•km)



Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s 0





Dimensional Characteristics

Designation Max. number Steel wire/ stand Stranded Nominal cable Nominal cable
Of fibers per tube Diameter (mm) units diameter (mm) weight (kg/km)
GYTC8S 2-36 6 2.3 6 11.6X25.5 270
GYTC8S 38-72 12 2.3 6 13.2X28.5 310
GYTC8S 74-96 12 2.3 8 14.9X33.0 390
GYTC8S 98-120 12 2.3 10 16.8X33.0 390
GYTC8S 122-144 12 2.3 12 18.8X35.0 440


Mechanical & Environmental Characteristics

Item   Characteristics
GYTC8S 2-72 GYTC8S 74-96 GYTC8S 98-144
Tensile Strength 9000N 10000N 12000N
Crush Resistance 1000/100mm
During Installation 20 Times Cable Diameter
After Installation 10 Times Cable Diameter
Messenger wire Diameter: 1.2mmx7 steel wire strand
Storage(°c) -50 to+70
Operating(°c) -40 to+60



Fiber Color Code

Fiber color in each tube starts from No. 1 Blue.

1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown Grey White Red Black Yellow Purple Pink Aqua



Color codes for loose tube & filler rod

Tube color starts from No. 1 Blue. If there are fillers, the color is natural.

1 2 3 4 5 6 7 8
Blue Orange Green Brown Grey White Red Black





Other product you may like:

Picture Show

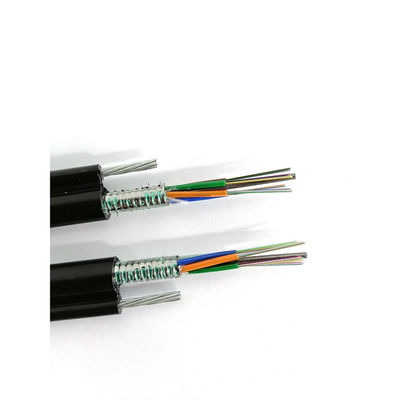

Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s 1

Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s 2

Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s 3





Packing & Delivery

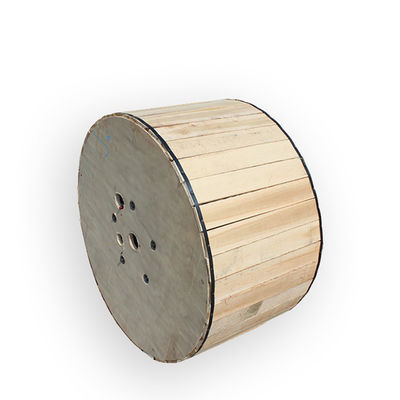

Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s 4



Packaing detail:

1km/ 2km/3km/4km/5km per wooden drum



Shipping:

By sea/by air or express delivery,it depends on the order quantity



Lead time:

Quantity(km) 1-300 Above 300
Earliest time(day) 5-7 Negotiable
