Features

Specifications

Fiber Type: G657A1/A2/G652D/G657A1/G657A2

Oem: Available

Application: Aerial

Number Of Conductors: 12CORE

Structure: Stranded Loose Tube

Operating Temperature: -40 ~ +60 C

Central Strength Member: Aluminium Tape

Jacket Material: PE/HDPE

Highlight:

36 Core Outdoor Fiber Optic Cable

Armored Outdoor Fiber Optic Cable

Basic Infomation

Place of Origin: CHINA

Brand Name: jiqian

Certification: ISO

Model Number: GYTA 12 CORE

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 2-4day

Payment Terms: Western Union, T/T, L/C

Supply Ability: 100km per 2 day

Gallery

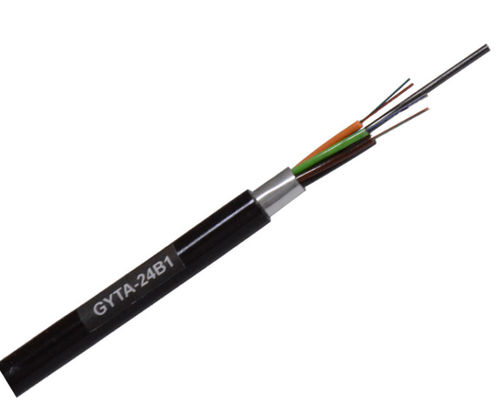

36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA

Product Description

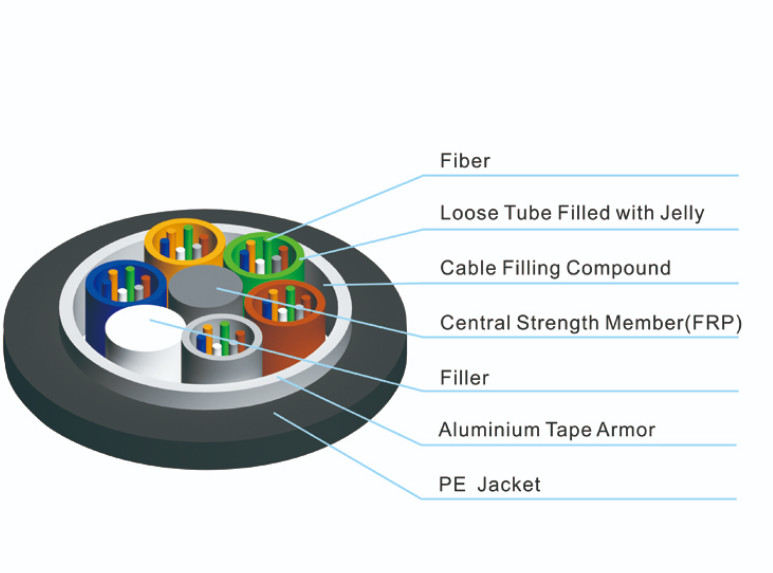

In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA 0

Application:

Duct/Aerial

Temperature Range:

Storing temperature:-40℃ to +70℃

Operating temperature:-40℃ to +70℃

36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA 1

Characteristics:

1.Excellent mechanical and temperature performance guaranteed by the accurate excess Fiber length

2.Critical protection to fibers

3.The following measures are taken to ensure the

water blocking performance of the cable.

Standards:

Comply with standard YD/T 901-2009 as well as IEC 60794-1

Optical Characteristics:


		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	'@850nm			≤3.0 dB/km	≤3.0 dB/km
	'@1300nm			≤1.0 dB/km	≤1.0 dB/km
	'@1310nm	≤0.36 dB/km	≤0.40 dB/km
	'@1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth (Class A)	'@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	'@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Tensile Strength	Long Term (N)	1000
Tensile Strength	Short Term (N)	3000
Crush Resistance	Long Term (N)	1000
Crush Resistance	Short Term (N)	3000
Bending Radius	Static (mm)	10D
Bending Radius	Dynamic (mm)	20D

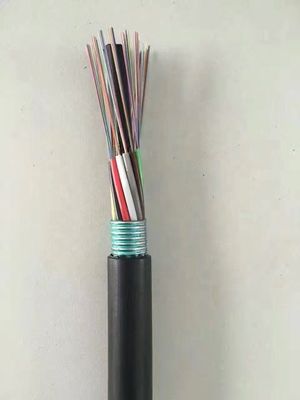

36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA 2

Our factory:

36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA 3

FRQ:

Name: 36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTA 12 CORE
Price: 1,249.28 USD
Availability: InStock

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
