Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : lillian
Phone Number : 8618122384553
WhatsApp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYXTC8Y-12B1 |
|
Detail Information |
|||
| Fiber Type: | YOFC/Fiberhome Or As Request | Color: | Black |
|---|---|---|---|
| Messenger Wire: | 7*1.0mm Stranded Steel Wire | Type: | Singlemode |
| Jacket: | PE | Oem: | Available |
| Installation: | Outdoor Aerial Self-supporting | Product Name: | Outdoor Optic Fiber Cable/Figure 8 Cable |
| Length: | 2km Or Customized Length | Fiber Count: | 2/4/6/8/12/24 Core |
| High Light: | SDOC Figure 8 Fiber Optic Cable,GYFXTC8Y Figure 8 Fiber Optic Cable,Singlemode Figure 8 Fiber Optic Cable |
||
Product Description

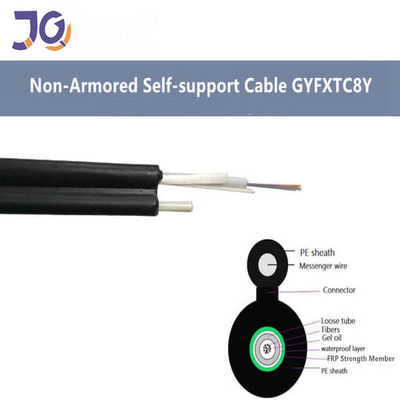

Non-Metallic strength member GYFXTC8Y
Fiber:
2-12 fibers
Uni-loose tube gel-filled
Armor:
Steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE)
Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 7.0mm*14.5(+/-0.2mm) | 105 | 4000/5000 | 1000/3000 | 10D/20D |
Picture Show

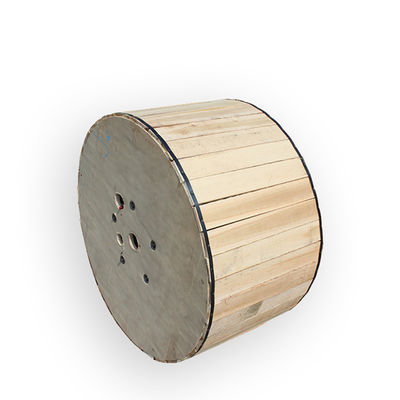

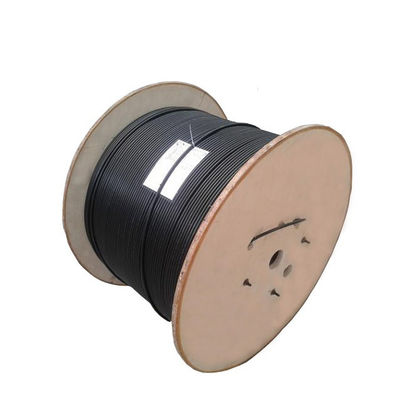

Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km/5km per wooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 5-7 | Negotiable |
