ROHS 12 Core Outdoor Single Mode Fiber Optic Gyfxty Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYFXTY

Detail Information

Fiber Type: Single Mode G652D Jacket Material: PE
Strength Member: FRP Cable Diameter: 8.0 Mm
Color: Black Storage/Operation: -40℃~+70℃
Application: Aerial Fiber Count: 2/4/6/8/12 Core
Length: 2km Or Customized Length
High Light:

Fiber Optic gyfxty cable

,

12 core gyfxty cable

,

ROHS single mode fiber optic cable

Product Description

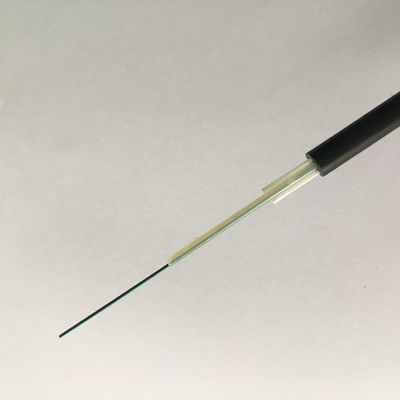

2-12 core Outdoor Single mode Fiber Optic Cable GYFXTY

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.

The cable is completed with a polyethylene (PE) sheath.





Features

Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.





Optical Characteristics











G.652



G.655



50/125μm



62.5/125μm



Attenuation(+20C)



@850nm











3.0dB/km



≤3.0dB/km



@1300nm











≤1.0dB/km



≤1.0dB/km



@1310nm



≤036dB/km



≤0.40dB/km











@1550nm



0.22dB/km



≤0.23dB/km











Bandwidth(ClassA)



@850nm











2500MHz-km



2200MHz.km



@1300nm











1000MHz.km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.15NA



CableCut-off Wavelength



1260m



1480nm

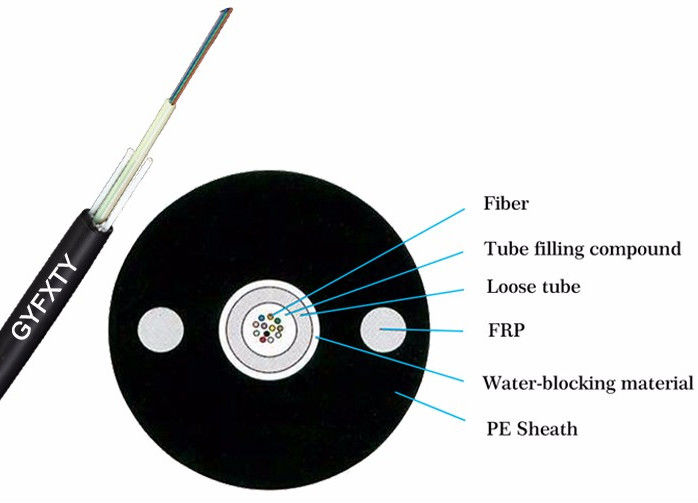

Structure and Technical Specification OF GYFXTY

ROHS 12 Core Outdoor Single Mode Fiber Optic Gyfxty Cable 0

 ROHS 12 Core Outdoor Single Mode Fiber Optic Gyfxty Cable 1



Technical data



Fiber

count



Cable

diameter(mm)



Nominal

weight(KGS)



AllowableTensileLoad(mm)



Allowable Crush Resistance(N/100m)



Short term



Long term



Short term



Long term



2-12



8.0



60



800N



400N



1000N/100m



300N/100m





Package

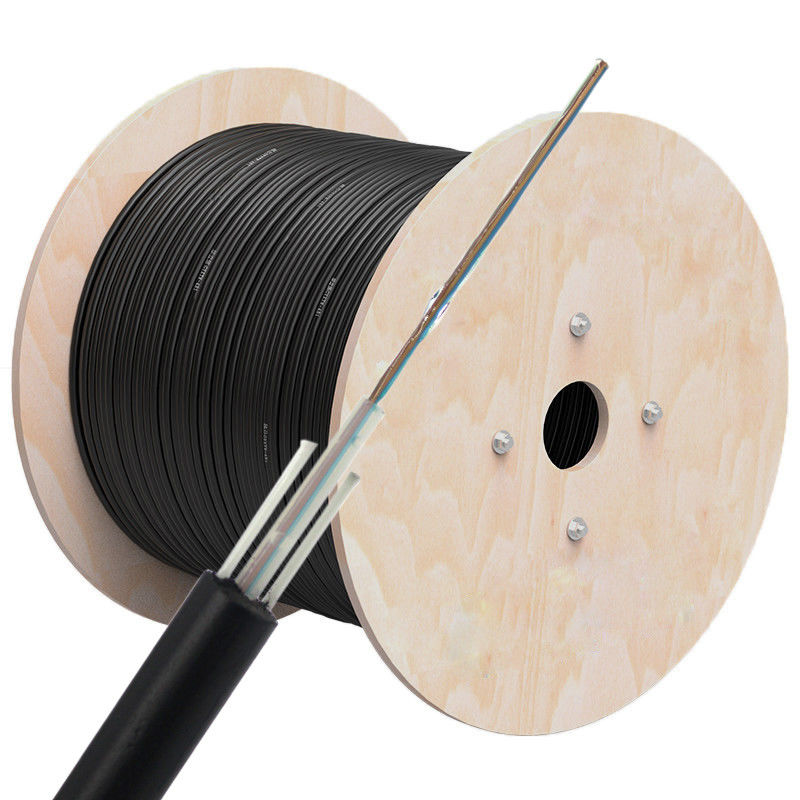

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;



Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

ROHS 12 Core Outdoor Single Mode Fiber Optic Gyfxty Cable 2

ROHS 12 Core Outdoor Single Mode Fiber Optic Gyfxty Cable 3

ROHS 12 Core Outdoor Single Mode Fiber Optic Gyfxty Cable 4
