36 Core Outdoor Fiber Optic Cable Stranded Loose Tube Steel Tape Armored GYTA
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30km per day |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
|
Detail Information |
|||
| Model Number: | GYFTY | Fiber Count: | 12-144 Cores |
|---|---|---|---|
| Fiber Type: | Single Mode G652D | Jacket: | PE |
| Color: | Black | Product Name: | Outdoor Fiber Optic Cable |
| Length: | 2km Or Customized Length | Structure: | Loose Tube |
| Installation: | Aerial/Duct | Number Of Conductors: | ≥ 10 |
| High Light: | Outdoor Duct gyfty cable,144 Core gyfty fiber optic cable,gyfty aerial fiber optic cable |
||
Product Description

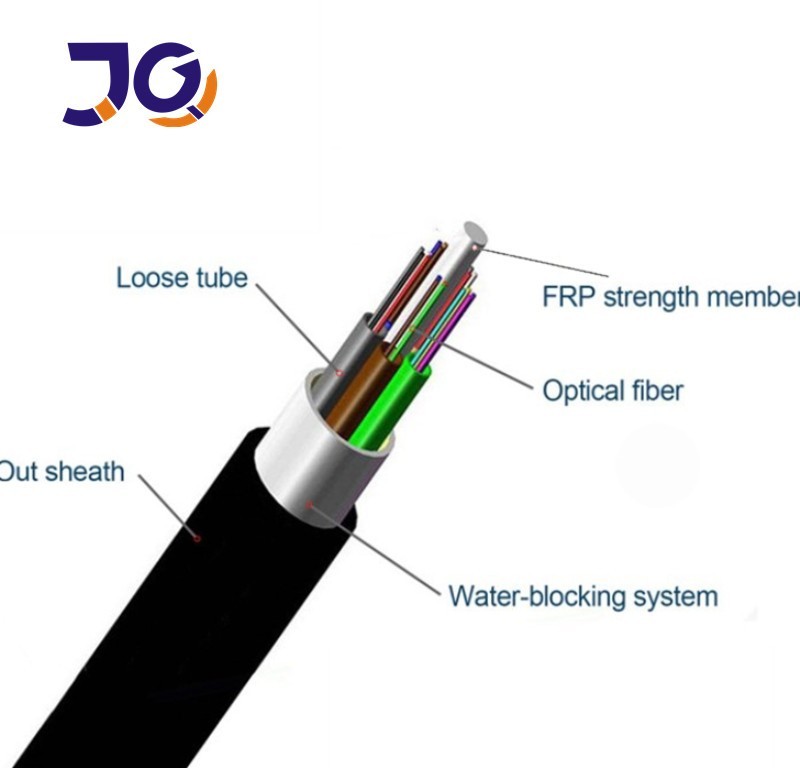

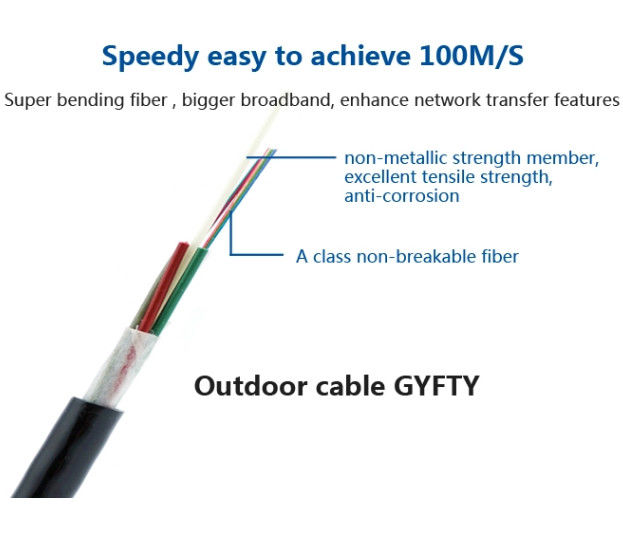

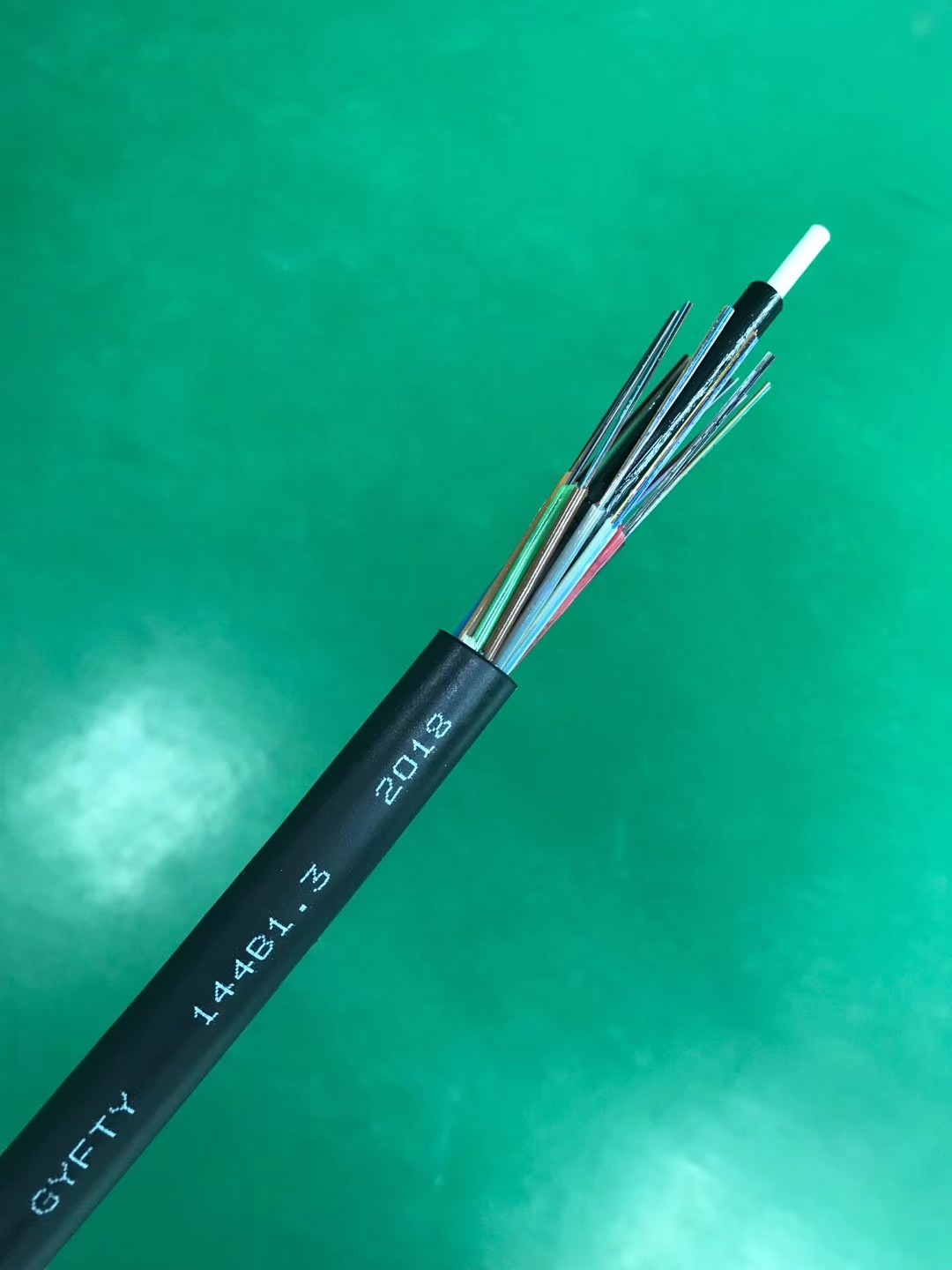

Jiqian Factory OEM 12/24/48/96/144 Core GYFTY Outdoor Duct/Aerial Fiber Optic Cable
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |

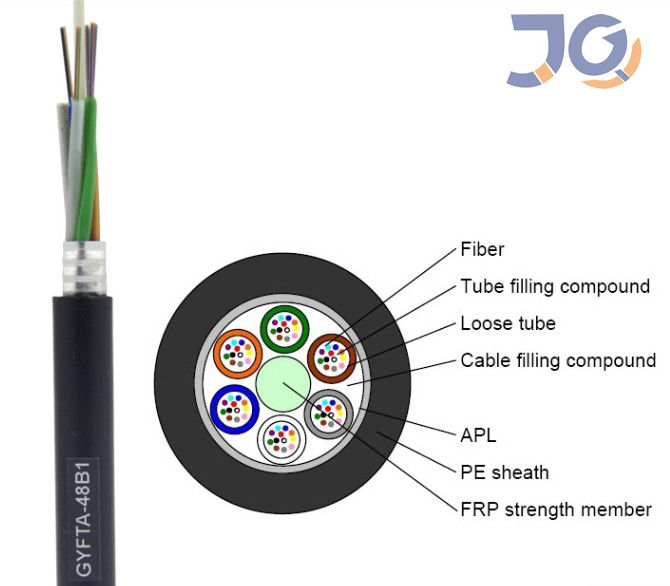

Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0±0.2 | 65 |
| 24 | 1+5 | 6 | 1.9±0.3 | 1.4/1.4 | 1.6 | 9.2±0.2 | 68 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6 | 80 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.2/3.5 | 1.6 | 12.0 | 103 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.2/6.4 | 1.8 | 15.0 | 180 |
Mechanical and Environmental Characteristics
| Item | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 3000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -40～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | |
| Torsion | Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. | |

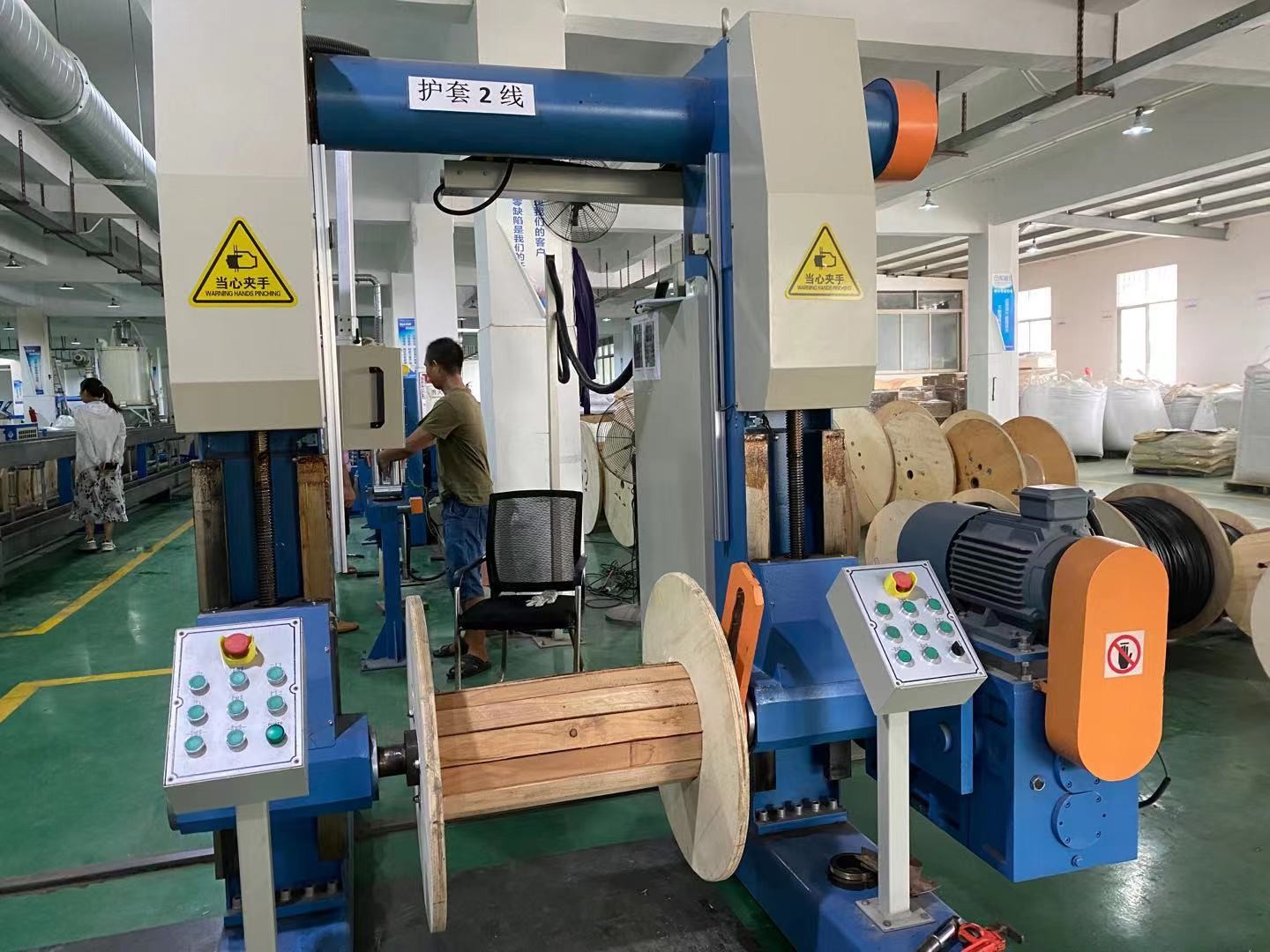

Welcome to visit our factory and send inquiry to us at anytime!
