Home /Products/Outdoor Fiber Optic Cable/GYTA 196 Cores Communication Fiber Cable Compact Structure

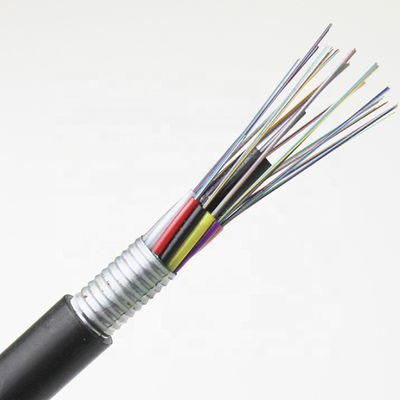

GYTA 196 Cores Communication Fiber Cable Compact Structure

1KM
MOQ
GYTA 196 Cores Communication Fiber Cable Compact Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-288 Cores
Jacket Material: PE
Jacket Color: Black
Warranty: 25 Years
Factory: Yes
OEM: Yes
Highlight:

196 Cores communication fiber cable

,

GYTA communication fiber cable

,

GYTA PE Jacket fiber cable
Basic Infomation
Place of Origin: Guangdong,China
Brand Name: Jiqian
Certification: CE/ISO9001
Model Number: GYTA
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 days, it depends on your quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000KM/month
Product Description



Outdoor GYTA GYTS 6 8 12 24 48 96 144 196 Cores Communication Single Mode Fiber Optic Cable Price Per Meter

GYTA 196 Cores Communication Fiber Cable Compact Structure 0

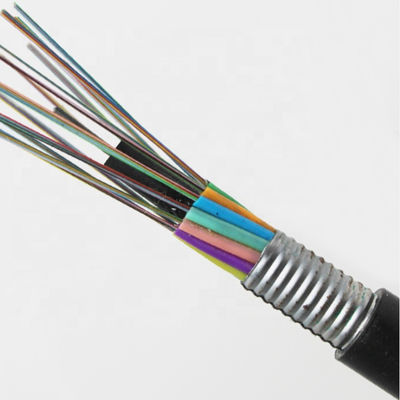

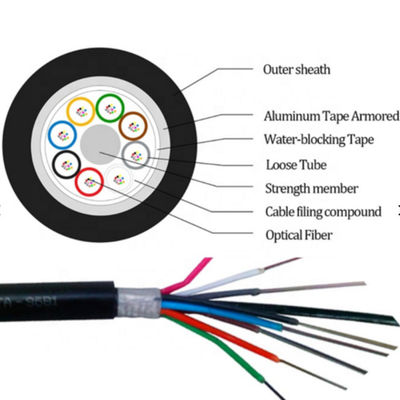

GYTA is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene. This fiber optic cable features the good mechanical and temperature performance.

GYTA 196 Cores Communication Fiber Cable Compact Structure 1

GYTA is with high strength loose tube that is hydrolysis resistant and the optical cable filling materials ensure high reliability, its APL makes the cable crush resistant and moisture proof.



GYTA 196 Cores Communication Fiber Cable Compact Structure 2



Feature:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4.Specially designed compact structure is good at preventing loose tubes from shrinking
5.PE sheath protects cable from ultraviolet radiation
GYTA 196 Cores Communication Fiber Cable Compact Structure 3
Application
GYTA 196 Cores Communication Fiber Cable Compact Structure 4

Technical parameters
cable count
weight[KG]
Minimum allowable tensile strength(N)
Minimum allowable
Crush load(N/100mm)
Min bending
radius (MM)
Suitable
temperature


short/long term
short/long term
short/long term
(℃)
2--30
85
1500/600
1000/300
20D/10D
-40~+60
36-48
95
1500/600
1000/300
20D/10D
-40~+60
134-144
110
1500/600
1000/300
20D/10D
-40~+60



GYTA 196 Cores Communication Fiber Cable Compact Structure 5



Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.



GYTA 196 Cores Communication Fiber Cable Compact Structure 6



Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
GYTA 196 Cores Communication Fiber Cable Compact Structure 7
Factory Show
GYTA 196 Cores Communication Fiber Cable Compact Structure 8

GYTA 196 Cores Communication Fiber Cable Compact Structure 9
We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
